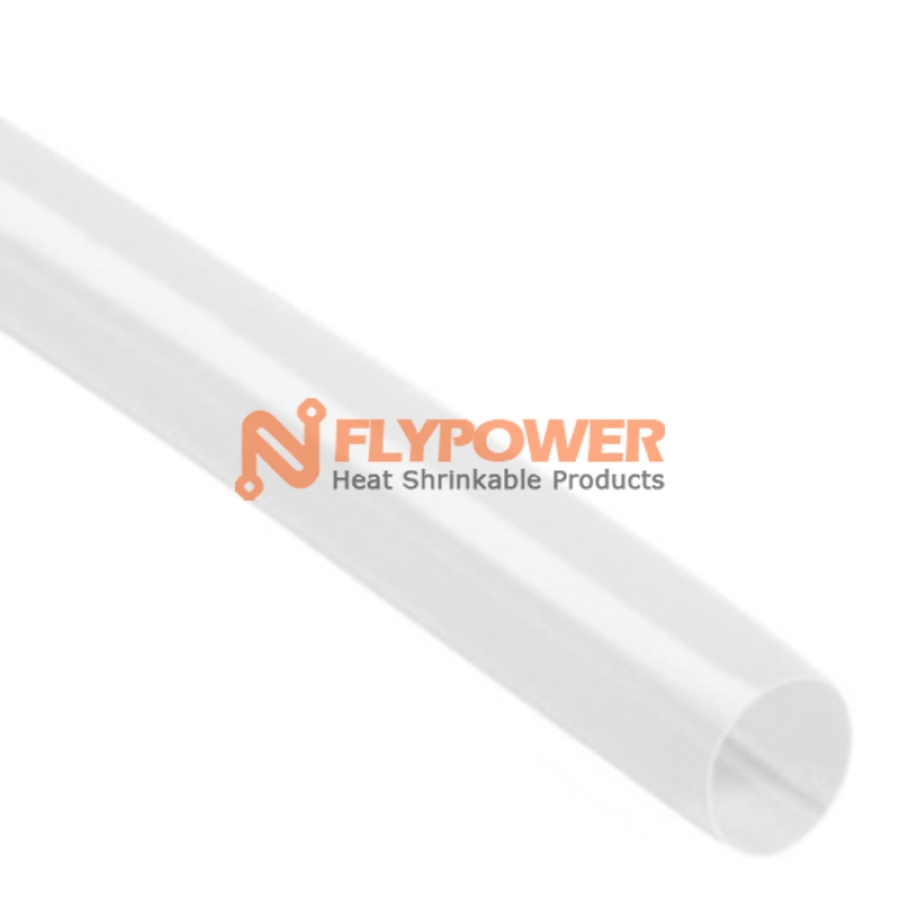

Medical grade sub lite wall, ultra thin wall PTFE heat shrink tubing BH-MT-PTFE-UTW
- Applications: Ultra thin wall PTFE tube is typically used for applications involving sensors, for an endoscopy, batteries and encapsulation of leads.
- Characteristics: BH-MT-PTFE-UTW sub lite wall heat shrink tubing is a manufactured with polytetrafluoroethylene (PTFE). It is specially designed for difficult applications that require extremely thin-walled tubing with strong encapsulation protection.
-
Operating temperature range: Operating temperature: -65℃～200℃;
Minimum fully recovery temperature: 350℃ -
Approvals / Specifications: ISO 10993-1 compliant
Compatibility with gamma rays and ETO sterilization - Colors: Transparent
Tab 1. Extruded sub lite wall PTFE Tubing
|
Model # |
ID |
Wall thickness |
||
|
In. |
mm |
In. |
mm |
|
|
BH-MT-PTFE-UTW-28 |
0.013 |
0.33 |
0.003 |
0.08 |
|
BH-MT-PTFE-UTW-26 |
0.016 |
0.41 |
0.003 |
0.08 |
|
BH-MT-PTFE-UTW-24 |
0.020 |
0.51 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-22 |
0.025 |
0.64 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-20 |
0.032 |
0.81 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-18 |
0.040 |
1.00 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-16 |
0.065 |
1.65 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-14 |
10.073 |
1.85 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-12 |
0.084 |
2.15 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-10 |
0.098 |
2.50 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-8 |
0.110 |
2.80 |
0.002 |
0.05 |
|
BH-MT-PTFE-UTW-6 |
0.162 |
4.10 |
0.003 |
0.08 |
|
BH-MT-PTFE-UTW-4 |
0.204 |
5.20 |
0.004 |
0.09 |
|
BH-MT-PTFE-UTW-2 |
0.258 |
6.55 |
0.004 |
0.10 |
|
BH-MT-PTFE-UTW-0 |
0.325 |
8.35 |
0.005 |
0.127 |
|
Customized specifications are available on request. The tolerance of most specifications can be controlled within ± 0.025mm [0.001in] |
||||
Tab 2. 1.7X Sub lite wall, Ultra thin wall PTFE heat shrink tubing
|
Model # |
Min. ID |
Fully recovered ID(Min.) |
Fully recovered WT(Nor.) |
|||
|
In. |
mm |
In. |
mm |
In. |
mm |
|
|
BH-MT-PTFE-1.7X-UTW-26 |
0.046 |
1.17 |
0.022 |
0.56 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-24 |
0.050 |
1.27 |
0.027 |
0.69 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-22 |
0.055 |
1.40 |
0.032 |
0.82 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-20 |
0.060 |
1.52 |
0.039 |
0.99 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-18 |
0.076 |
1.94] |
0.049 |
1.25 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-16 |
0.093 |
2.36 |
0.061 |
1.54 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-14 |
0.120 |
3.00 |
0.072 |
1.83 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-12 |
0.150 |
3.80 |
0.089 |
2.26 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-10 |
0.191 |
4.85 |
0.112 |
2.85 |
0.002 |
0.051 |
|
BH-MT-PTFE-1.7X-UTW-8 |
0.240 |
6.10 |
0.141 |
3.58 |
0.0025 |
0.064 |
|
Customized specifications are available on request. The tolerance of most specifications can be controlled within ± 0.025mm [0.001in] |
||||||
|
Property |
Specification Requirement |
Test Method |
Typical Value |
|
Tensile strength |
≥17.3MPa |
ASTM D2671 |
≥22MPa |
|
Elongation at break |
≥200% |
ASTM D2671 |
≥300% |
|
Heat shock |
No cracking |
ASTM D2671 |
No cracking |
|
Low temperature flexibility |
No cracking |
ASTM D2671 |
No cracking |
|
Volume resistivity |
≥1015Ω? cm |
ASTM D2671 |
≥1015Ω? cm |
|
Dielectric strength |
≥34kV/mm |
ASTM D2671 |
34 kV/mm |
|
Copper corrosion |
No corrosion |
ASTM D2671 |
No corrosion |
|
No heavy metals contained |
|||
|
Compatibility with gamma rays and ETO sterilization |
|||
