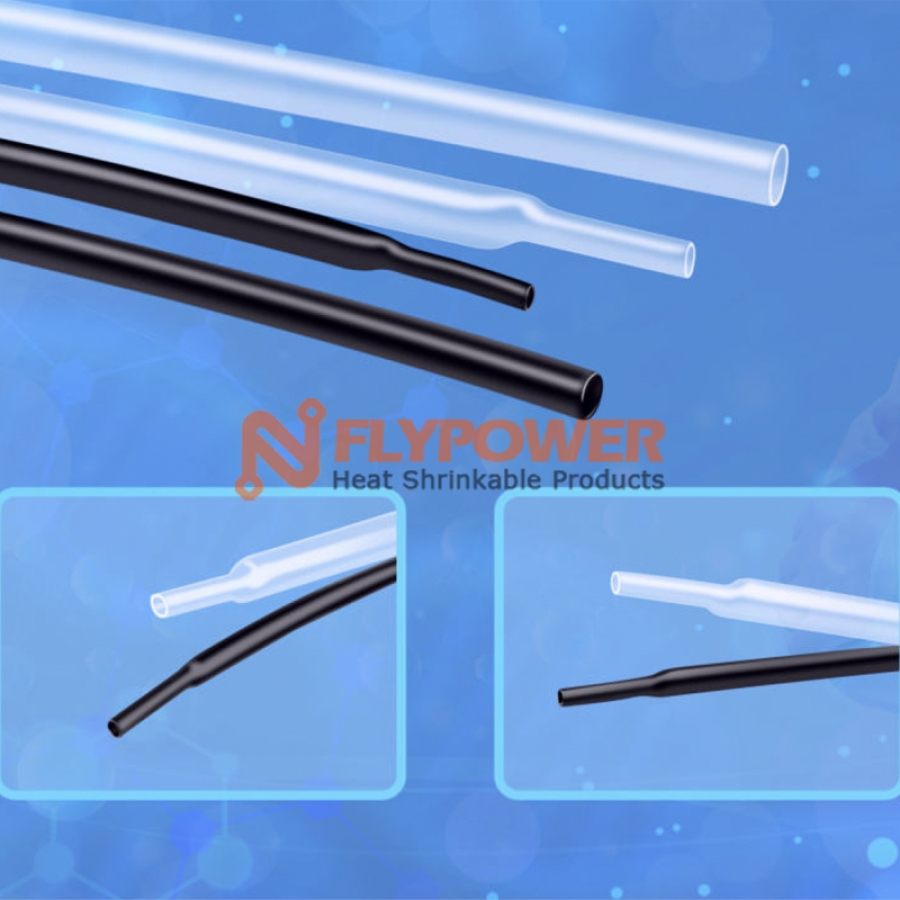

Medical grade ultra thin wall heat shrink tubing BH-MT-2-UTW
- Applications: Its flexibility and thin-walled structure can meet the needs of medical device production.
- Characteristics: BH-MT-2-CB medical grade ultra thin heat shrinkable tubing which is made of medical grade polyolefin, It has excellent electrical insulation performance and flexibility and can achieve ultra-thin wall thickness with a minimum thickness of 0.05mm.
-
Operating temperature range: Minimum shrink temperature: 70℃;
Working temperature: -45℃~90℃;
Minimum temperature: 60 ℃;
Fully recovery temperature: Above 100 ℃. -
Approvals / Specifications: ISO 10993-1 compliant
Compatibility with gamma rays and ETO sterilization - Colors: Black, Transparent
|
Model |
Supplied (mm) |
Recovered(mm) |
Standard Packaging (Meter/Spool) |
||
|
ID(Min.) |
W.T |
ID(Max.) |
W.T |
||
|
BH-MT-2-UTW-1.0 |
1.0 |
0.05±0.03 |
≤0.50 |
0.10±0.05 |
200 |
|
BH-MT-2-UTW-2.0 |
2.0 |
0.05±0.03 |
≤1.00 |
0.10±0.05 |
200 |
|
BH-MT-2-UTW-3.0 |
3.0 |
0.05±0.03 |
≤1.50 |
0.10±0.05 |
200 |
|
BH-MT-2-UTW-4.0 |
4.0 |
0.05±0.03 |
≤2.00 |
0.10±0.05 |
200 |
|
BH-MT-2-UTW-4.4 |
4.4 |
0.05±0.03 |
≤2.20 |
0.10±0.05 |
200 |
|
BH-MT-2-UTW-4.8 |
4.8 |
0.05±0.03 |
≤2.40 |
0.10±0.05 |
100 |
|
BH-MT-2-UTW-5.5 |
5.5 |
0.05±0.03 |
≤2.75 |
0.10±0.05 |
100 |
|
BH-MT-2-UTW-6.0 |
6.0 |
0.05±0.03 |
≤3.00 |
0.10±0.05 |
100 |
|
BH-MT-2-UTW-6.4 |
6.4 |
0.05±0.03 |
≤3.20 |
0.10±0.05 |
100 |
|
BH-MT-2-UTW-9.5 |
9.5 |
0.06±0.04 |
≤4.75 |
0.15±0.05 |
100 |
|
BH-MT-2-UTW-10.0 |
10.0 |
0.06±0.04 |
≤5.00 |
0.15±0.05 |
100 |
|
BH-MT-2-UTW-12.7 |
12.7 |
0.06±0.04 |
≤6.35 |
0.15±0.05 |
100 |
Special sizes are available on request.
|
Property |
Test Method |
Typical Data |
|
Longitudinal change % |
ASTM D 2671 |
-10~+0 |
|
Tensile strength/MPa |
ASTM D 638 |
≥10.3 |
|
Elongation at break/% |
ASTM D 638 |
≥200 |
|
Dielectric Withstand Voltage |
ASTM D2671 |
4000V, 60 seconds without breakdown |
|
Dielectric strength/kV/mm |
ASTM D 2671 |
≥15.7 |
