Medical grade linear fluorinated polymer heat shrink tubing for process aid applications BH-MT-FEP-PL

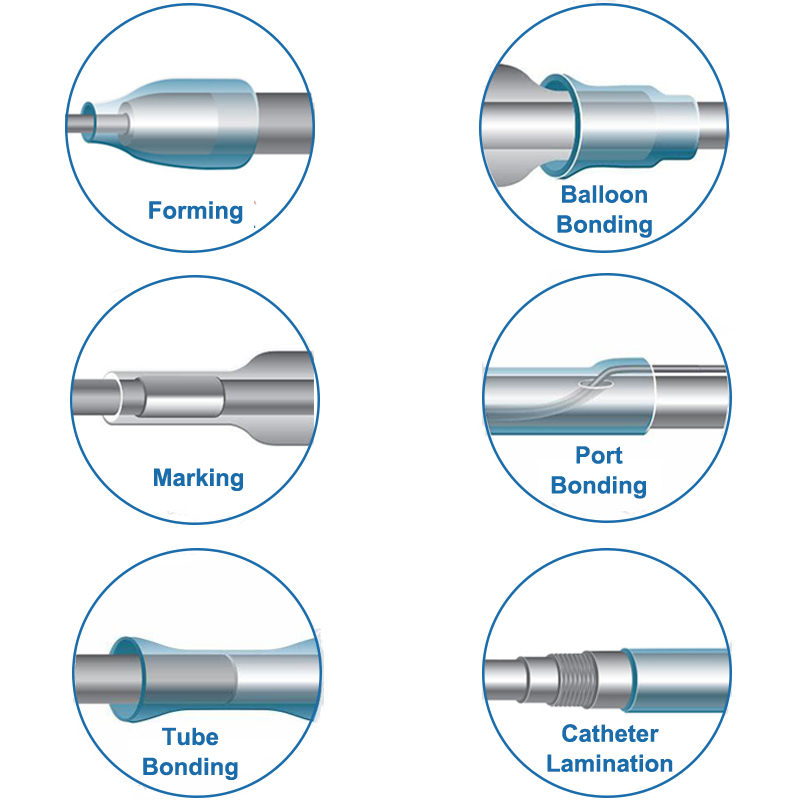

- Applications: It is suitable for the production of various medical multi-layer catheters and the welding rheological process of balloons and joints, etc.

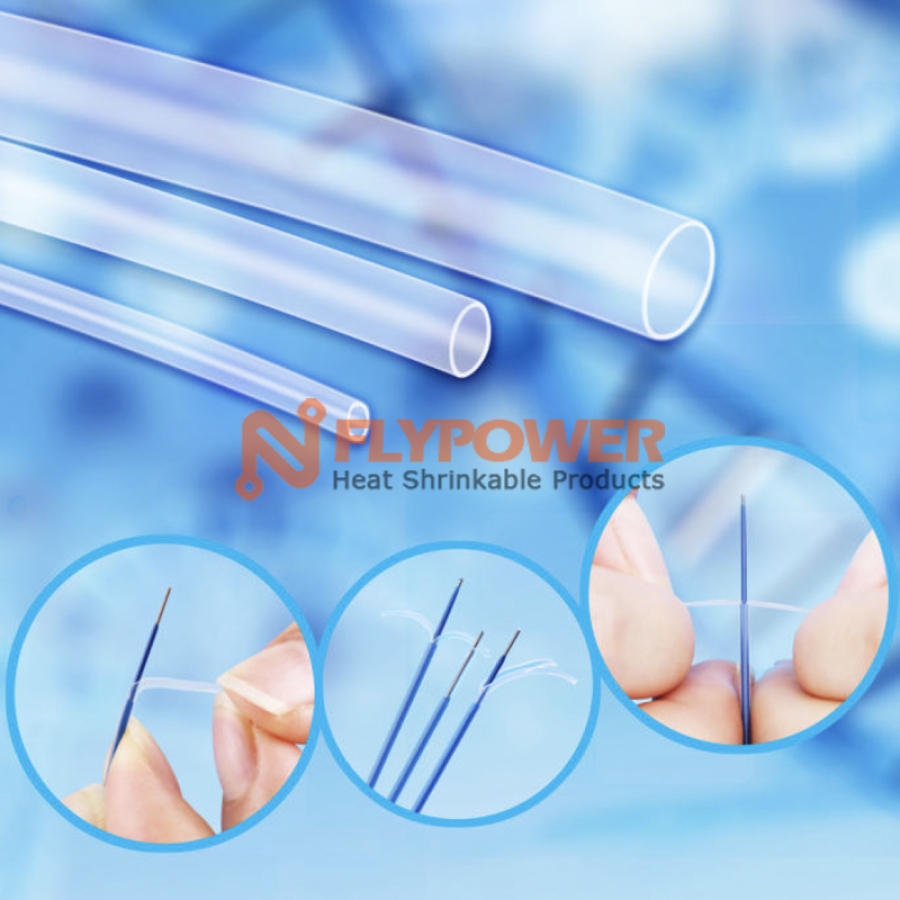

- Characteristics: BH-MT-FEP-PL is made of medical-grade fluorinated polymer. After heat shrinking, it can be quickly and completely peeled off from the outer layer of the catheter without using cutting tools and without sticking.
-
Operating temperature range: Shrink Ratio: 1.3:1/1.6:1
Minimum shrink temperature: 190℃
Fully recovery temperature: 260℃
High transparency, easy to observe welding conditions
Excellent linear tensile strength
Excellent axial tear propagation -
Approvals / Specifications: Meet: RoHS
ISO 10993-1 compliant - Colors: Transparent
|
Model |
Expanded ID (Min.) |
Fully recovered ID (Max.) |
Fully recovered wall thickness |
Standard Length |
||||||
|
1.3:1 |
1.6:1 |
|||||||||
|
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
M |
|
|
BH-MT-FEP-PL-0.8 |
0.031 |
0.8 |
0.024 |
0.62 |
0.02 |
0.50 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-1.1 |
0.044 |
1.12 |
0.039 |
0.99 |
0.028 |
0.70 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-1.2 |
0.047 |
1.2 |
0.036 |
0.92 |
0.03 |
0.75 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-1.4 |
0.055 |
1.4 |
0.043 |
1.08 |
0.035 |
0.88 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-1.6 |
0.063 |
1.6 |
0.048 |
1.23 |
0.039 |
1.00 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-2.4 |
0.094 |
2.4 |
0.073 |
1.85 |
0.059 |
1.50 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-3.2 |
0.126 |
3.2 |
0.097 |
2.46 |
0.079 |
2.00 |
0.008±0.002 |
0.20±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-4.8 |
0.189 |
4.8 |
0.145 |
3.69 |
0.118 |
3.00 |
0.010±0.002 |
0.25±0.05 |
48.0 |
1.22 |
|
BH-MT-FEP-PL-6.4 |
0.252 |
6.4 |
0.194 |
4.92 |
0.157 |
4.00 |
0.010±0.002 |
0.25±0.05 |
48.0 |
1.22 |
Customized dimensions and heat shrink ratio for your special applications on request.
Cross Reference : Junkosha FEP-PHST and Zeus FluoroPEELZ?
|
Property |
Test Method |
Typical Data |
|
Longitudinal change |
ASTM D2671 |
0%~15% |
|
Tensile strength |
ASTM D2671 |
≥10.3MPa |
|
Elongation at break |
ASTM D2671 |
≥200% |
|
Heat resistance |
260?C/4hrs |
No cracking and fading |
