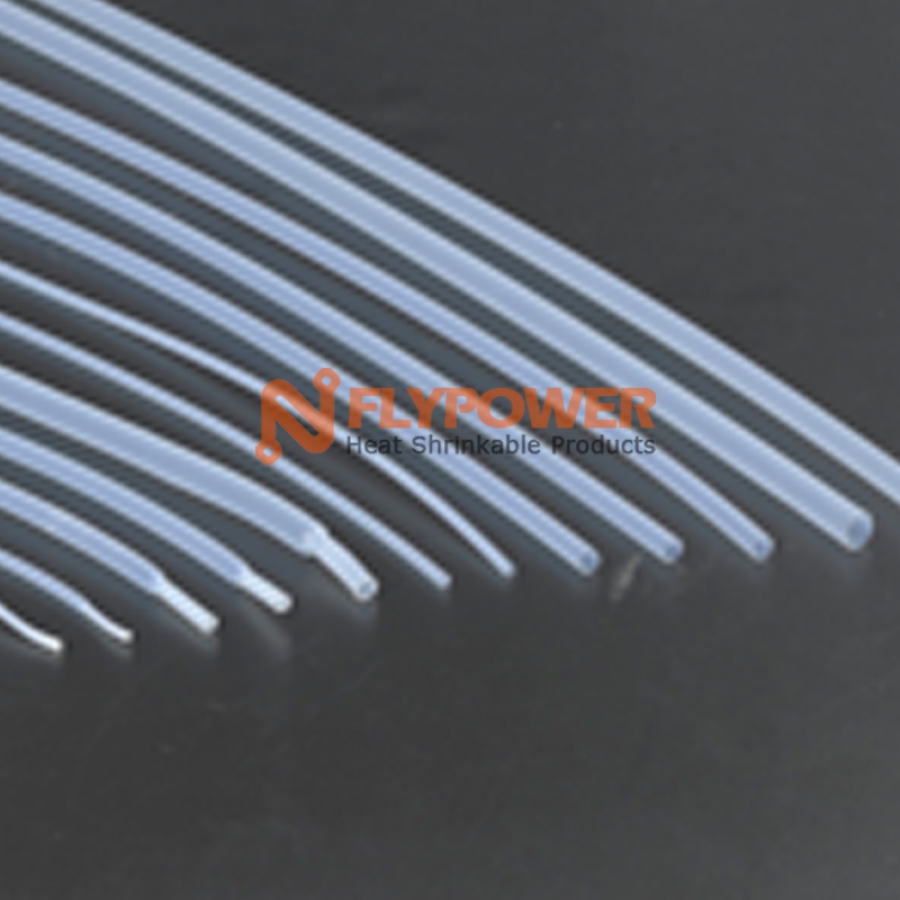

260℃ PTFE TEFLON HEAT SHRINKABLE TUBING BH-PTFE
- Applications: PTFE teflon heat shrinkable tubing's highly flame retardant are required such as in the field of automotive , military and aerospace
- Characteristics: BH-PTFE is manufactured with polytetrafluoroethylene (PTFE). Specially designed for applications where very high temperature and chemicals resistant extreme electrical insulation
-
Operating temperature range: Operating temperature: -65℃ to +260℃
Minimum fully recovery temperature: 350℃ - Approvals / Specifications: Meet: SAE-AMS-DTL-23053/12
- Colors: Transparent
Shrink Ratio 1.7:1
|
Size (mm) |
As supplied ID(mm) |
Fully Recovered（mm) |
Package |
|
|
ID |
WT |
|||
|
Φ1.0 |
1.0±0.2 |
≤0.6 |
0.20±0.05 |
200m/spool |
|
Φ1.5 |
1.5±0.2 |
≤0.9 |
0.20±0.05 |
200m/spool |
|
Φ2.0 |
2.0±0.2 |
≤1.3 |
0.20±0.05 |
200m/spool |
|
Φ2.5 |
2.5±0.2 |
≤1.5 |
0.20±0.05 |
200m/spool |
|
Φ3.0 |
3.0±0.2 |
≤1.8 |
0.20±0.05 |
200m/spool |
|
Φ3.5 |
3.5±0.2 |
≤2.0 |
0.20±0.05 |
100m/spool |
|
Φ4.0 |
4.0±0.3 |
≤2.5 |
0.25±0.05 |
100m/spool |
|
Φ4.5 |
4.5±0.3 |
≤2.8 |
0.25±0.05 |
100m/spool |
|
Φ5.0 |
5.0±0.3 |
≤3.0 |
0.25±0.05 |
100m/spool |
|
Φ6.0 |
6.0±0.3 |
≤3.8 |
0.25±0.05 |
100m/spool |
|
Φ7.0 |
7.0±0.3 |
≤4.0 |
0.25±0.05 |
100m/spool |
|
Φ8.0 |
8.0±0.3 |
≤4.8 |
0.25±0.05 |
1m /pcs |
|
Φ9.0 |
9.0±0.3 |
≤5.0 |
0.30±0.05 |
1m /pcs |
|
Φ10.0 |
10.0±0.3 |
≤5.8 |
0.30±0.05 |
1m /pcs |
|
Φ11.0 |
11.0±0.3 |
≤6.4 |
0.30±0.05 |
1m /pcs |
|
Φ12.0 |
12.0±0.3 |
≤7.0 |
0.30±0.05 |
1m /pcs |
|
Φ13.0 |
13.0±0.3 |
≤7.5 |
0.35±0.05 |
1m /pcs |
|
Φ14.0 |
14.0±0.3 |
≤8.0 |
0.35±0.05 |
1m /pcs |
|
Φ15.0 |
15.0±0.3 |
≤8.5 |
0.40±0.05 |
1m /pcs |
|
Φ16.0 |
16.0±0.3 |
≤9.0 |
0.40±0.05 |
1m /pcs |
Shrink Ratio 4:1
| Size(mm) | Supplied(mm) | Fully Recovered（mm) | ||
| ID | WT | ID | WT | |
| φ2.0 | 2.0±0.2 | 0.10±0.05 | ≤0.50 | 0.30±0.05 |
| φ2.5 | 2.5±0.2 | 0.10±0.05 | ≤0.65 | 0.30±0.05 |
| φ3.0 | 3.0±0.2 | 0.10±0.05 | ≤0.80 | 0.30±0.05 |
| φ3.5 | 3.5±0.2 | 0.10±0.05 | ≤0.90 | 0.30±0.05 |
| φ4.0 | 4.0±0.3 | 0.10±0.05 | ≤1.0 | 0.30±0.05 |
| φ4.5 | 4.5±0.3 | 0.12±0.05 | ≤1.15 | 0.30±0.05 |
| φ5.0 | 5.0±0.3 | 0.12±0.05 | ≤1.25 | 0.30±0.05 |
| φ6.0 | 6.0±0.3 | 0.12±0.05 | ≤1.5 | 0.30±0.05 |
| φ7.0 | 7.0±0.3 | 0.12±0.05 | ≤1.75 | 0.30±0.05 |
| φ8.0 | 8.0±0.3 | 0.15±0.05 | ≤2.0 | 0.35±0.05 |
| φ9.0 | 9.0±0.3 | 0.15±0.05 | ≤2.25 | 0.35±0.05 |
| φ10.0 | 10±0.3 | 0.15±0.05 | ≤2.5 | 0.35±0.05 |
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
≥34.5 MPa |
|
Elongation at break |
ASTM D 2671 |
≥150% |
|
Specific gravity |
ASTM D 792 |
2.30 |
|
Heat shock |
ASTM D 2671 (400℃, 4 hrs) |
No cracking or dropping |
|
Cold bend |
ASTM D 2671 (-65℃, 4 hrs) |
No cracking |
|
Flammability |
ASTM D 2671 |
Self extinguish |
|
Volume resistance |
ASTM D 2671 |
≥1018Ω.cm |
|
Dielectric strength |
ASTM D 2671 |
≥34KV/mm |
|
Copper corrosion |
UL 224 |
Pass |
|
Fluid resistance |
SAE-AMS-DTL-23053/12 |
Excellent |
|
Water absorption |
ASTM D 570 |
0.1 Max. |
