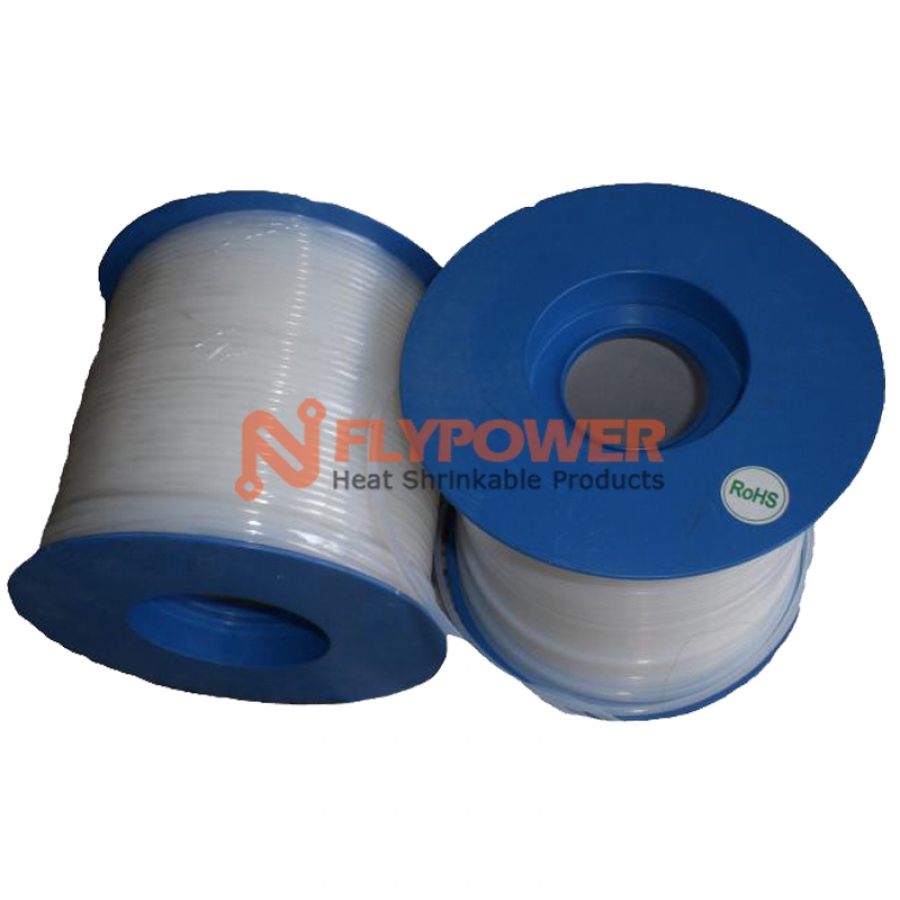

260℃ PTFE TEFLON EXTRUDED TUBING BH-PTFE(N)
- Applications: BH-PTFE(N) is manufactured with polytetrafluoroethylene (PTFE).
- Characteristics: Withstand voltage : 150V-600V,Specially designed for applications where very high temperature and chemicals resistant extreme electrical insulation an highly flame retardant are required such as in the field of automotive , military and aerospace.
-
Operating temperature range: Operating temperature: -65℃ to +260℃
Smelting point: 327℃ - Approvals / Specifications: Meet: SAE-AMS-DTL-23053/12
- Colors: Black, Transparent
|
(AWG) |
Inside diameter ID(mm) |
Outside DiameterOD（mm） |
Package(M/Spool) |
||
|
S |
T |
L |
|||
|
30 |
0.30±0.10 |
0.80±0.10 |
0.70±0.10 |
0.60±0.10 |
305 |
|
28 |
0.38±0.10 |
0.88±0.10 |
0.78±0.10 |
0.68±0.10 |
305 |
|
26 |
0.46±0.10 |
0.96±0.10 |
0.86±0.10 |
0.76±0.10 |
305 |
|
24 |
0.56±0.10 |
1.16±0.10 |
1.06±0.10 |
0.86±0.10 |
305 |
|
23 |
0.66±0.10 |
1.26±0.10 |
1.16±0.10 |
0.96±0.10 |
305 |
|
22 |
0.71±0.10 |
1.31±0.10 |
1.21±0.10 |
1.01±0.10 |
305 |
|
21 |
0.81±0.10 |
1.41±0.10 |
1.31±0.10 |
1.11±0.10 |
305 |
|
20 |
0.86±0.10 |
1.66±0.10 |
1.46±0.10 |
1.16±0.10 |
305 |
|
19 |
0.96±0.20 |
1.76±0.20 |
1.56±0.20 |
1.26±0.20 |
200 |
|
18 |
1.07±0.20 |
1.87±0.20 |
1.67±0.20 |
1.37±0.20 |
200 |
|
17 |
1.19±0.20 |
1.99±0.20 |
1.79±0.20 |
1.49±0.20 |
200 |
|
16 |
1.34±0.20 |
2.14±0.20 |
1.94±0.20 |
1.64±0.20 |
153 |
|
15 |
1.50±0.20 |
2.30±0.20 |
2.10±0.20 |
1.80±0.20 |
153 |
|
14 |
1.68±0.20 |
2.48±0.20 |
2.28±0.20 |
2.00±0.20 |
100 |
|
13 |
1.93±0.20 |
2.73±0.20 |
2.53±0.20 |
2.25±0.20 |
100 |
|
12 |
2.16±0.25 |
2.96±0.25 |
2.76±0.25 |
2.50±0.25 |
100 |
|
11 |
2.41±0.25 |
3.21±0.25 |
3.01±0.25 |
2.76±0.25 |
150 |
|
10 |
2.69±0.25 |
3.49±0.25 |
3.29±0.25 |
3.04±0.25 |
150 |
|
9 |
3.00±0.25 |
4.00±0.25 |
3.80±0.25 |
3.40±0.25 |
150 |
|
8 |
3.38±0.25 |
4.38±0.25 |
4.18±0.25 |
3.78±0.25 |
100 |
|
7 |
3.76±0.25 |
4.76±0.25 |
4.56±0.25 |
4.16±0.25 |
100 |
|
6 |
4.22±0.25 |
5.22±0.25 |
5.02±0.25 |
4.72±0.25 |
100 |
|
5 |
4.72±0.25 |
5.72±0.25 |
5.52±0.25 |
5.20±0.25 |
50 |
|
4 |
5.28±0.30 |
6.28±0.30 |
6.08±0.30 |
5.88±0.25 |
50 |
|
3 |
5.94±0.30 |
6.94±0.30 |
6.74±0.30 |
6.54±0.25 |
1 |
|
2 |
6.68±0.30 |
7.68±0.30 |
7.48±0.30 |
7.28±0.25 |
1 |
|
1 |
7.46±0.30 |
8.46±0.30 |
8.26±0.30 |
8.06±0.25 |
1 |
|
0 |
8.38±0.30 |
9.38±0.30 |
9.18±0.30 |
8.98±0.25 |
1 |
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
≥34.5 MPa |
|
Elongation at break |
ASTM D 2671 |
≥150% |
|
Specific gravity |
ASTM D 792 |
2.30 |
|
Heat shock |
ASTM D 2671 (400℃, 4 hrs) |
No cracking or dropping |
|
Cold bend |
ASTM D 2671 (-65℃, 4 hrs) |
No cracking |
|
Flammability |
ASTM D 2671 |
Self extinguish |
|
Volume resistance |
ASTM D 2671 |
≥1018Ω.cm |
|
Dielectric strength |
ASTM D 2671 |
≥34KV/mm |
|
Copper corrosion |
UL 224 |
Pass |
|
Fluid resistance |
SAE-AMS-DTL-23053/12 |
Excellent |
|
Water absorption |
ASTM D 570 |
0.1 Max. |
