  • Standard soft PP(Polypropylene ) corrugated pipe BH-PP

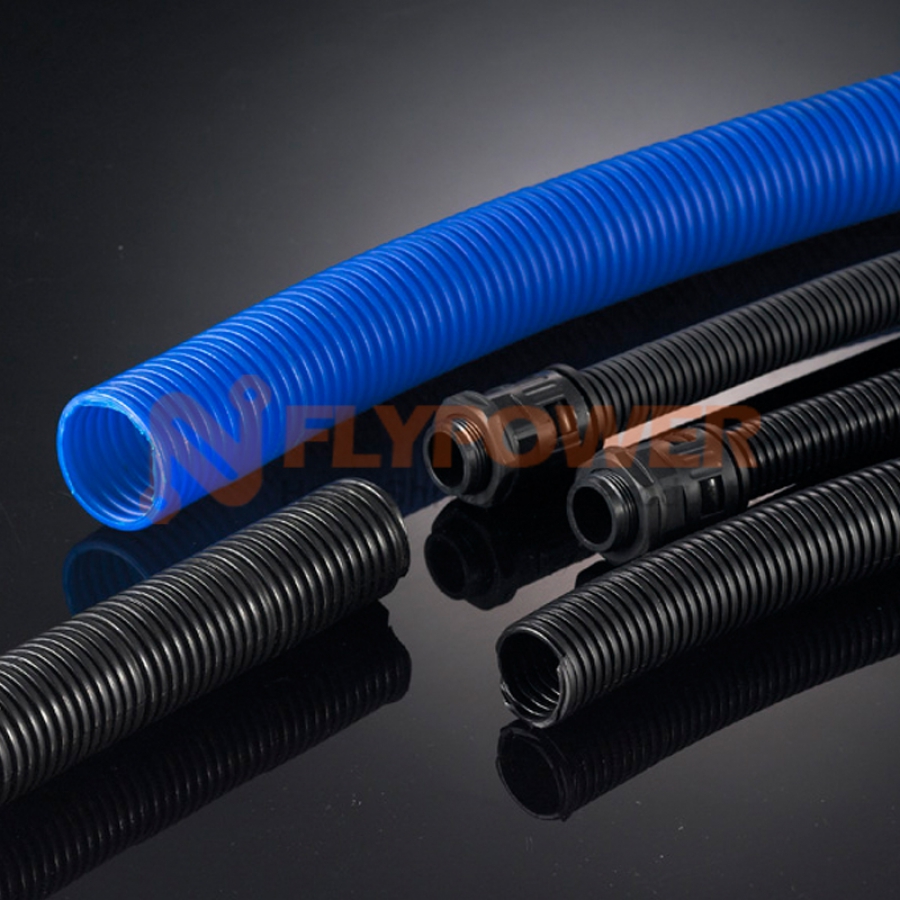

    Standard soft PP(Polypropylene ) corrugated pipe BH-PP
    • Applications: For machine tools, electrical equipment, food machinery, automation instrument, motors, Protection the cables and wires to avoid abrasion.
    • Characteristics: Oil resistant, excellent chemical resistance to acids,alkalies and corrosion, high mechanical strength, lack of flexibility,dim surface, free of halogen, phosphor and cadmium, passed RoHS .
    • Operating temperature range: -40 oC ~ +110 oC, short time up to +130 oC
    • Approvals / Specifications: RoHS
    • Colors: Black, Gray, Other colors available on request
    FLYPOWER recommends using PP (Polypropylene) corrugated pipe in the following condistions:

    No high concentration of the oxidant and acid environment; it will be dissolved in benzene, toluene, chlorinated hydrocarbons and aromatic hydrocarbons uner temperaturer  ≥ 80 oC ;Oil resistant.

    Mainly used in the environmental temperature range of -40 ~ 110 oC ; Application for automobiles, motorcycles and other vehicles wiring harness prptection; can be used for household appliances, precision machine tools and other equipment wire harness sheath.


    Product Dimensions

    Model ID * OD
    (mm)
    Curving radius Units
    (M/Roll)
    BH-PP-7.0 4.5 * 7.0 10 200
    BH-PP-10.0 6.5 * 10.0 15 100
    BH-PP-11.6 8.6 * 11.6 20 100
    BH-PP-13.0 10.0 * 13.0 20 100
    BH-PP-15.8 12.0 * 15.8 28 100
    BH-PP-18.5 14.3 * 18.5 35 100
    BH-PP-20.0 16.0 * 20.0 38 100
    BH-PP-21.2 17.0 * 21.2 40 100
    BH-PP-25.0 20.0 * 25.0 42 100
    BH-PP-28.5 23.0 * 28.5 45 100
    BH-PP-30.0 24.0 * 30.0 50 100
    BH-PP-32.0 25.0 * 32.0 50 50
    BH-PP-34.5 29.0 * 34.5 55 50
    BH-PP-42.5 36.0 * 42.5 70 25
    BH-PP-54.5 48.0 * 54.5 80 25

    Special size, cut pieces are available on request.

    INSULATE, SEAL, CONNECT

    Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
