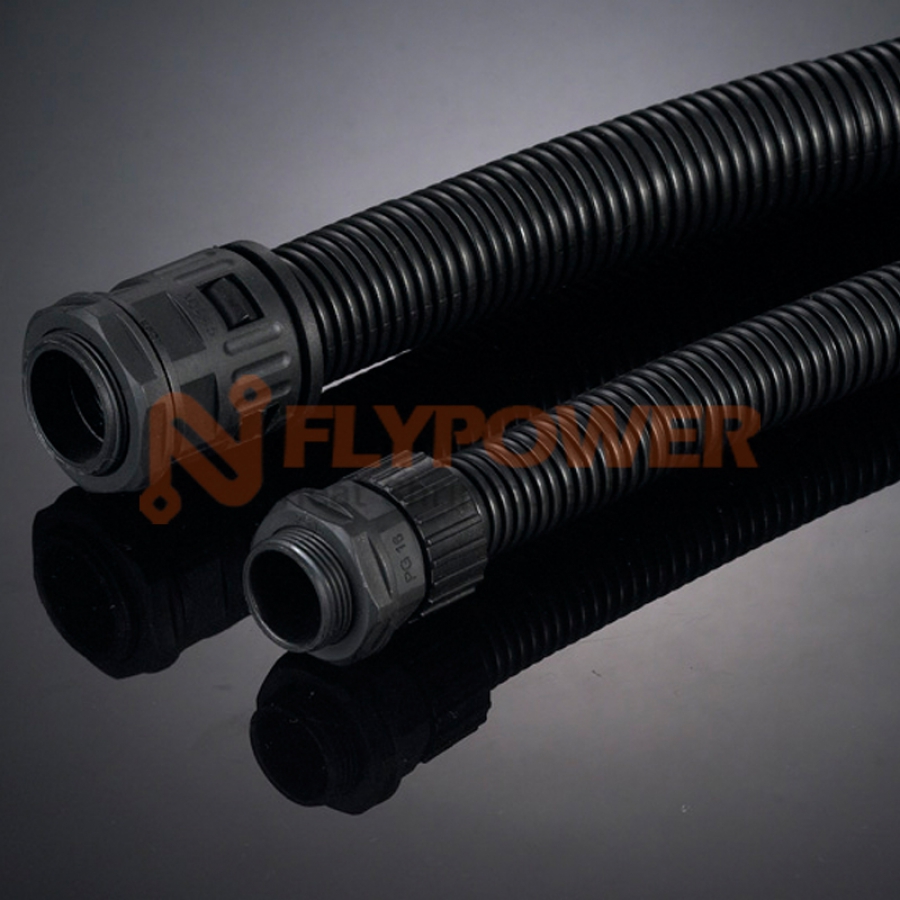

Standard soft PE(Polyethylene) corrugated pipe BH-PE
- Applications: For machine tools, electrical equipment, food machinery, automation instrument, motors, Protection the cables and wires to avoid abrasion.
- Characteristics: Excellent flexibility,not recommend use outdoor. Anti-ozone force: General; Load bearing: General; Alkali resistance: General; Cutting fluid resistance: Excellent; Acid resistance: Excellent; Oil resistance: Excellent.free of halogen, phosphor and cadmium passed RoHS
- Operating temperature range: -30 oC ~ +100 oC, short time up to +120 oC
- Approvals / Specifications: RoHS
- Colors: Black, Gray, Other colors available on request
FLYPOWER recommends using PE (polyethylene) corrugated pipe in the following condistions:
No oxidizing acid,animal oil, vegetable oils, mineral oil environment.no environmental aliphatic hydrocarbons, aromatic hydrocarbons, ketones, esters and other organic solvents.
Mainly used in the environmental temperature range of -30 ~ 100 oC; used automoibles, motorcycles and other vehicles wiring harness protection. can be used for household appliances, precision machine tools and other equipment wiring harness protection .
Product Dimensions
| Model |
ID * OD (mm） |
Curving radius |
Units (M/Roll) |
| BH-PE-7.0 | 4.5 * 7.0 | 10 | 200 |
| BH-PE-10.0 | 6.5 * 10.0 | 15 | 100 |
| BH-PE-11.6 | 8.6 * 11.6 | 20 | 100 |
| BH-PE-13.0 | 10.0 * 13.0 | 20 | 100 |
| BH-PE-15.8 | 12.0 * 15.8 | 28 | 100 |
| BH-PE-18.5 | 14.3 * 18.5 | 35 | 100 |
| BH-PE-20.0 | 16.0 * 20.0 | 38 | 100 |
| BH-PE-21.2 | 17.0 * 21.2 | 40 | 100 |
| BH-PE-25.0 | 20.0 * 25.0 | 42 | 100 |
| BH-PE-28.5 | 23.0 * 28.5 | 45 | 100 |
| BH-PE-30.0 | 24.0 * 30.0 | 50 | 100 |
| BH-PE-32.0 | 25.0 * 32.0 | 50 | 50 |
| BH-PE-34.5 | 29.0 * 34.5 | 55 | 50 |
| BH-PE-42.5 | 36.0 * 42.5 | 70 | 25 |
| BH-PE-54.5 | 48.0 * 54.5 | 80 | 25 |
Special size, cut pieces are available on request.
