全冷縮電纜終端頭 BH-CTK
-
產品應用:

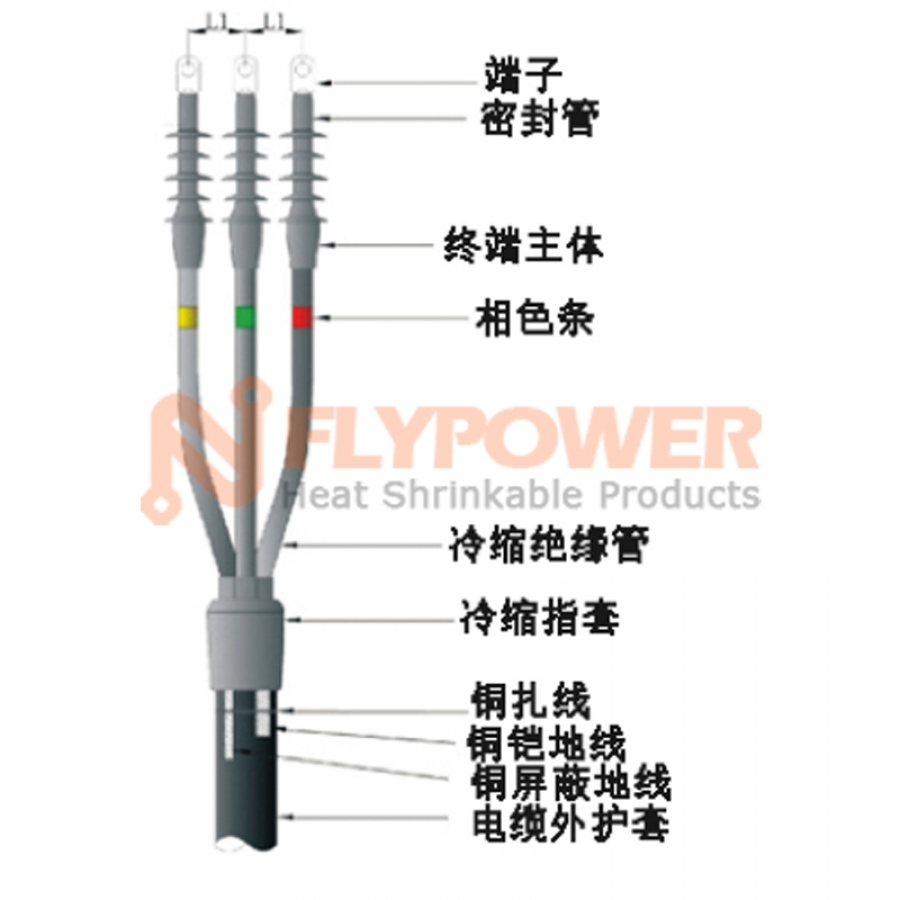

BH－CTK全冷縮電纜終端可用于室內和室外的應用單芯和三芯電纜直到36kV的終端安裝。冷縮電纜終端是一體式的設計，是由從高質量的進口液態硅橡膠生產。冷縮終端是由工廠的擴展是在可移動的內支撐芯繩上。一旦安裝在電纜芯，只需輕輕抽取芯繩，就會依靠自身的彈性回縮，從而緊貼在電纜上。 -
產品特性:
安裝簡單快捷，不需要額外的工具；
緊密密封，高回彈即使經過長年老化和暴露；
不需要膠泥或膠帶，無需動火；
抗真菌，水，酸，堿和臭氧；
容易拆卸，安裝時無需訓練。 -
操作溫度:
N/A
-
認證及標準:
RoHs
- 顏色: 灰色
|
電壓范圍U0/U (Um) |
電纜芯數 |
電纜截面積/mm2 |
絕緣直徑/mm |
產品型號 |
|
18/30kV (36) |
1, 3 Indoor |
35-50 |
22-27 |
18/30kV-BH-CTI-1/1(3/1) |
|
70-185 |
27.5-35 |
18/30kV-BH-CTI-1/2(3/2) |
||
|
240-500 |
35.5-46 |
18/30kV-BH-CTI-1/3(3/3) |
||
|
630 |
46.5-55 |
18/30kV-BH-CTI-1/4(3/4) |
||
|
1, 3 Outdoor |
35-50 |
22-27 |
18/30kV-BH-CTO-1/1(3/1) |
|
|
70-185 |
27.5-35 |
18/30kV-BH-CTO-1/2(3/2) |
||
|
240-500 |
35.5-46 |
18/30kV-BH-CTO-1/3(3/3) |
||
|
630 |
46.5-55 |
18/30kV-BH-CTO-1/4(3/4) |
||
|
12/20kV (24) |
1, 3 Indoor |
25-50 |
18-21.5 |
12/20kV-BH-CTI-1/1(3/1) |
|
70-120 |
21-26.5 |
12/20kV-BH-CTI-1/2(3/2) |
||
|
150-240 |
25.5-32 |
12/20kV-BH-CTI-1/3(3/3) |
||
|
300-400 |
32.5-37 |
12/20kV-BH-CTI-1/4(3/4) |
||
|
500-630 |
39-44.3 |
12/20kV-BH-CTI-1/5(3/5) |
||
|
1, 3 Outdoor |
25-50 |
16-22 |
12/20kV-BH-CTO-1/1(3/1) |
|
|
70-120 |
20-27 |
12/20kV-BH-CTO-1/2(3/2) |
||
|
150-240 |
24-32 |
12/20kV-BH-CTO-1/3(3/3) |
||
|
300-400 |
30-37 |
12/20kV-BH-CTO-1/4(3/4) |
||
|
500-630 |
39-44.3 |
12/20kV-BH-CTO-1/5(3/5) |
||
|
8.7/15kV (17.5) |
1, 3 Indoor |
25-50 |
16-19.5 |
8.7/15kV-BH-CTI- 1/1(3/1) |
|
70-120 |
19-24.5 |
8.7/15kV-BH-CTI- 1/2(3/2) |
||
|
150-240 |
23-30 |
8.7/15kV-BH-CTI- 1/3(3/3) |
||
|
300-400 |
30.5-35 |
8.7/15kV-BH-CTI-1/4(3/4) |
||
|
500-630 |
37-42.3 |
8.7/15kV-BH-CTI-1/5(3/5) |
||
|
1, 3 Outdoor |
25-50 |
16-19.5 |
8.7/15kV-BH-CTO- 1/1(3/1) |
|
|
70-120 |
19-24.5 |
8.7/15kV-BH-CTO- 1/2(3/2) |
||
|
150-240 |
23-30 |
8.7/15kV-BH-CTO- 1/3(3/3) |
||
|
300-400 |
30.5-35 |
8.7/15kV-BH-CTO-1/4(3/4) |
||
|
500-630 |
37-42.3 |
8.7/15kV-BH-CTO-1/5(3/5) |
||
|
6/10kV (12) |
1, 3 Indoor |
50-70 |
16-19.5 |
6/10kV-BH-CTI- 1/1(3/1) |
|
95-150 |
19-24.5 |
6/10kV-BH-CTI- 1/2(3/2) |
||
|
185-300 |
23.5-30 |
6/10kV-BH-CTI-1/3(3/3) |
||
|
400-500 |
30.5-35 |
6/10kV-BH-CTI-1/4(3/4) |
||
|
630 |
37-42.3 |
6/10kV-BH-CTI-1/5(3/5) |
||
|
1, 3 Outdoor |
50-70 |
16-19.5 |
6/10kV-BH-CTO- 1/1(3/1) |
|
|
95-150 |
19-24.5 |
6/10kV-BH-CTO- 1/2(3/2) |
||
|
185-300 |
23.5-30 |
6/10kV-BH-CTO- 1/3(3/3) |
||
|
400-500 |
30.5-35 |
6/10kV-BH-CTO- 1/4(3/4) |
||
|
630 |
37-42.3 |
6/10kV-BH-CTO- 1/5(3/5) |
||
|
0.6/1kV (1.2) |
1,3,4,5 Indoor or |
25-50 |
- |
0.6/1k-BH-CT-1(3,4,5)/1 |
|
70-120 |
0.6/1k-BH-CT-1(3,4,5)/2 |
|||
|
150-240 |
0.6/1kV-BH-CT-1(3,4,5)/3 |
|||
|
300-400 |
0.6/1kV-BH-CT-1(3,4,5)/4 |
