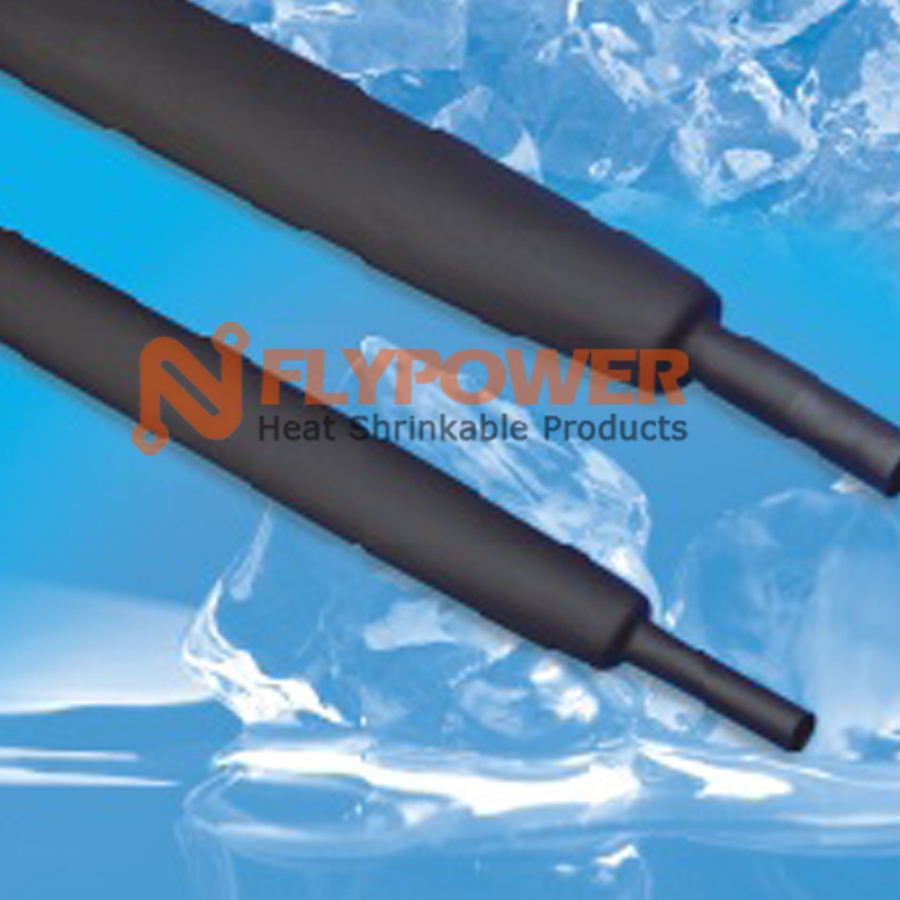

ULTRA LOW TEMPERATURE FLEXIBLE HALOGEN FREE POLYOLEFIN TUBING SHRINK RATIO 2:1 BH-2(LS)
- Applications: Ultra low temperature flexible halogen free polyolefin tubing Suitable for applications where heat sensitive components protection e.g. PVC jacketed wire and cable and quick shrinkage is required.
- Characteristics: BH-2(LS) is manufactured with modified radiation cross-linked Polyolefin. The specially designed halogen free formulation makes the tubing very flexible and shrinking at lower Temperature.The flammability of the tubing meets the automotive flame propagation standard MVSS 302 . although very flexible, BH-2(LS) has good Mechanical and electrical performance.
-
Operating temperature range: Minimum shrink temperature: 65℃
Minimum fully recovery temperature: 95℃ - Approvals / Specifications: Meet: Sony SS-00259, RoHS
- Colors: Black, Other colors available on request
|
Normal size |
As supplied (mm) |
After recovered (mm) |
Standard length (m/spool) |
|
|
(inch) |
Inside diameter(mm) |
Inside diameter(Max.) |
Wall thickness(mm) |
|
|
1/16 |
1.6 |
0.8 |
0.50 |
200 |
|
3/64 |
2.4 |
1.2 |
0.50 |
200 |
|
1/8 |
3.2 |
1.6 |
0.50 |
200 |
|
3/16 |
4.8 |
2.4 |
0.50 |
200 |
|
1/4 |
6.4 |
3.2 |
0.60 |
100 |
|
5/16 |
8.0 |
4.0 |
0.60 |
100 |
|
3/8 |
9.5 |
4.8 |
0.60 |
100 |
|
1/2 |
12.7 |
6.4 |
0.60 |
50 |
|
5/8 |
16.0 |
8.0 |
0.60 |
50 |
|
3/4 |
19.1 |
9.5 |
0.80 |
50 |
|
1 |
25.4 |
12.7 |
0.90 |
50 |
|
1 1/4 |
31.8 |
15.9 |
0.90 |
50 |
|
1 1/2 |
38.1 |
19.1 |
1.00 |
50 |
|
2 |
50.8 |
25.4 |
1.10 |
50 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
13MPa |
|
Elongation at break |
ASTM D 2671 |
450% |
|
Tensile strength after aging at 158℃for 168 hrs |
ASTM D 2671 |
11MPa |
|
Elongation after aging at 158℃for 168 hrs. |
ASTM D 2671 |
300% |
|
Heat shock (250℃/ 4 hrs.) |
ASTM D 2671 |
No cracking |
|
Cold bend test (-55℃/ 4 hrs.) |
ASTM D 2671 |
No cracking |
|
Copper Corrosion |
UL 224 |
Pass |
|
Flammability |
MVSS 302 |
Pass |
|
Fluid resistance |
23℃for 24hrs ISO 37 tensile strength Elongation |
11MPa 200% |
|
Longitudinal shrinkage |
UL 224 |
0±5% |
