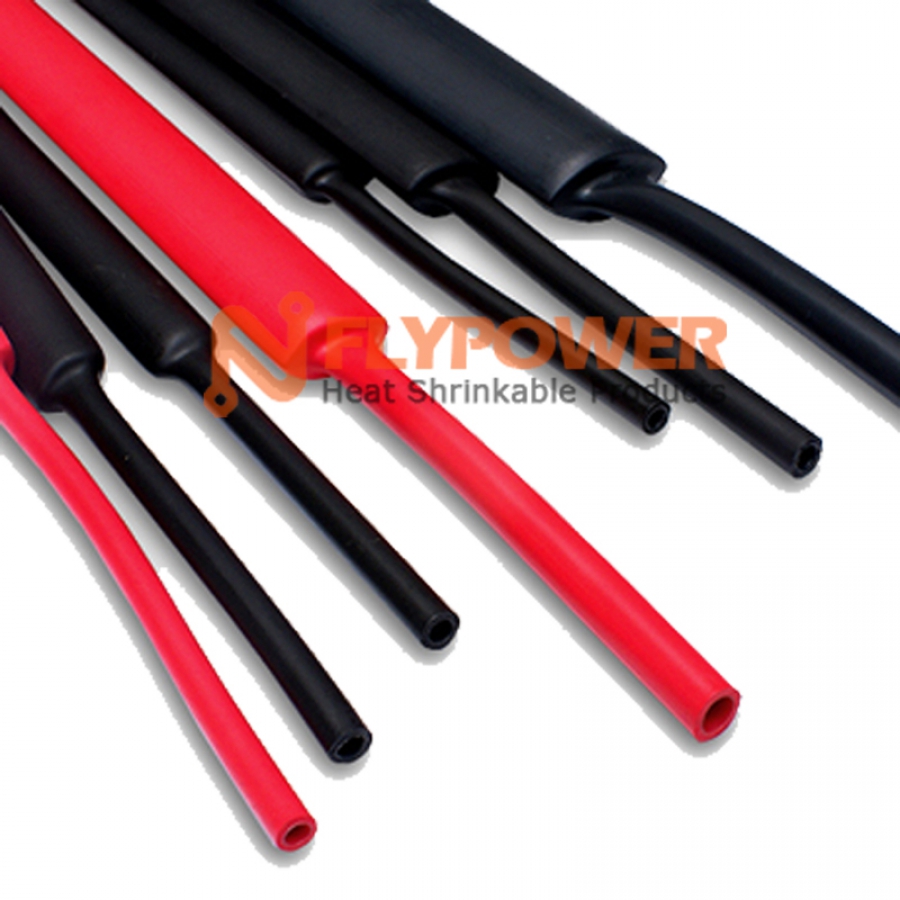

3:1 SHRINK RATIO FLEXIBLE THIN WALL FLAME RETARDANT POLYOLEFIN TUBING BH-2
- Applications: Widely used for electrical insulation and protects in-line components, disconnect terminals and bundles wires for very flexible light-duty harnesses. Identifies or color-codes, wires, cables, terminals and components
- Characteristics: BH-2 splices with its high insulation and excellent resilience
-
Operating temperature range: Minimum shrink temperature: 80oC
Minimum fully recovery temperature: 110oC - Approvals / Specifications: Meet: UL 224, 125 VW-1 600V Sony SS-00259, RoHS
- Colors: Black, Red, Yellow, Blue, Green, White, Other colors available on request
|
Normal size |
As supplied (mm) |
After recovered (mm) |
Standard length (m/spool) |
|||
|
mm |
Inch |
Inside diameter |
Wall thickness（mm） |
Inside diameter |
Wall thickness（mm） |
|
|
1.5/0.5 |
1/16 |
1.6 |
0.15 |
0.5 |
0.45 |
200 |
|
3.0/1.0 |
1/8 |
3.2 |
0.18 |
1.0 |
0.55 |
200 |
|
4.5/1.5 |
3/16 |
4.8 |
0.20 |
1.5 |
0.60 |
100 |
|
6.0/2.0 |
1/4 |
6.4 |
0.22 |
2.0 |
0.65 |
100 |
|
9.0/3.0 |
3/8 |
9.5 |
0.25 |
3.0 |
0.75 |
100 |
|
12.0/4.0 |
1/2 |
12.7 |
0.25 |
4.0 |
0.80 |
50 |
|
18.0/6.0 |
3/4 |
19.1 |
0.35 |
6.0 |
0.90 |
50 |
|
24.0/8.0 |
1 |
25.4 |
0.45 |
8.0 |
1.00 |
50 |
|
39.0/13.0 |
1 1/2 |
39.0 |
0.50 |
13.0 |
1.25 |
50 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
UL 224 |
-55 to +125℃ |
|
Tensile strength |
ASTM D 2671 |
>14MPa |
|
Elongation at break |
ASTM D 2671 |
>400% |
|
Longitudinal shrinkage |
UL 224 |
0--10% |
|
Eccentricity |
ASTM D 2671 |
<30% |
|
Elongation at break after aging |
158℃, 168 hrs. |
>300% |
|
Flammability |
VW-1 |
Pass |
|
Dielectric strength |
IEC243 |
>20KV/mm |
|
Volume resistance |
IEC93 |
>1014Ω.cm |
|
Copper stability |
ASTM D 2671 |
Pass |
