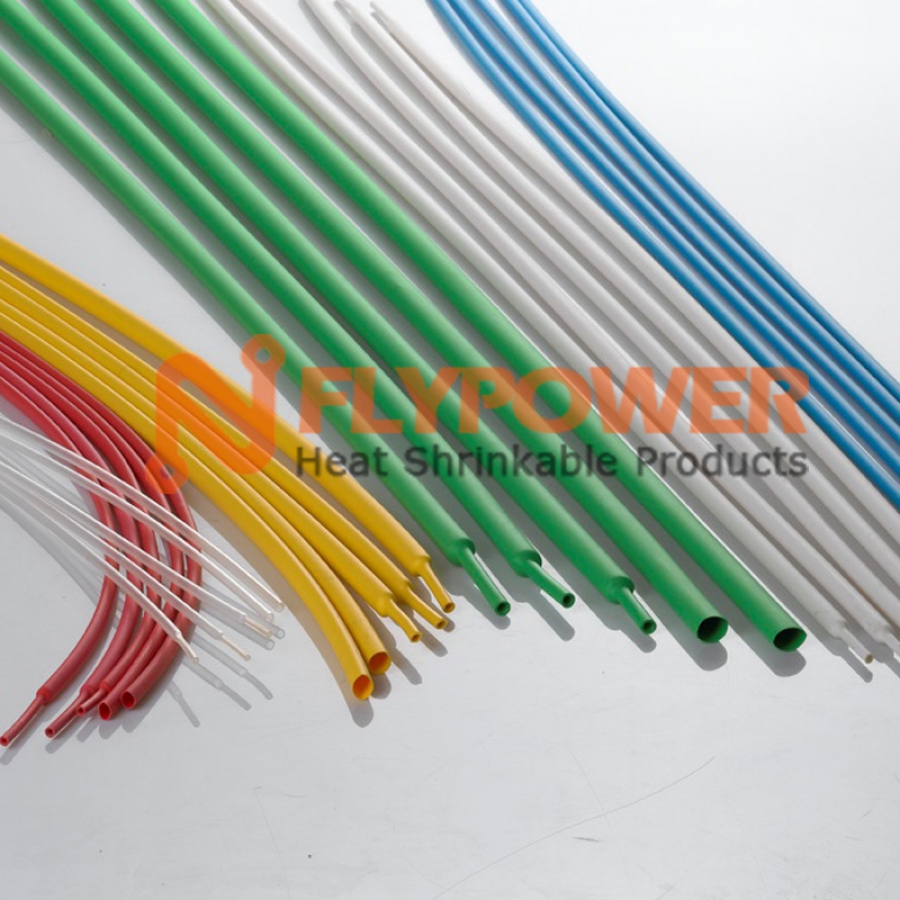

NON FLAME RETARDANT POLYOLEFIN TUBING SHRINK RATIO 2:1 BH-1
- Applications: BH-1 is commercial grade heat shrinking tubing for general applications where flame-retardant properties are not needed,but electrical insulation and mechanical performance is important.
- Characteristics: BH-1 conforms to substrates more uniformly and with less longitudinal changes than most of PVC tubing. The bright shiny surface is an attractive covering for many automotive, appliance, and consumer-goods applications. Clear version offers exceptional clarity for protection marked surfaces.
-
Operating temperature range: Minimum shrink temperature: 70oC
Minimum fully recovery temperature: 95oC - Approvals / Specifications: CE,RoHS and accord with Sony-SS-00259 standard.
- Colors: Bright black, Transparent, Other colors available on request
| Normal Size(mm) | As supplied(mm) | After recovered (mm) | Standard length (m/spool) |
||
| Inside diameter (mm) |
Wall thickness (mm) |
Inside diameter (max) | Wall thickness (min) |
||
| Φ1.0 | 1.5±0.2 | 0.18 | 0.5 | 0.33 | 200 |
| Φ1.5 | 2.0±0.2 | 0.18 | 0.75 | 0.33 | 200 |
| Φ2.0 | 2.7±0.2 | 0.25 | 1 | 0.44 | 200 |
| Φ2.5 | 3.1±0.2 | 0.25 | 1.25 | 0.44 | 200 |
| Φ3.0 | 3.7±0.3 | 0.25 | 1.5 | 0.44 | 200 |
| Φ3.5 | 4.0±0.3 | 0.25 | 1.75 | 0.44 | 200 |
| Φ4.0 | 4.7±0.3 | 0.25 | 2 | 0.44 | 200 |
| Φ5.0 | 5.6±0.3 | 0.25 | 2.5 | 0.5 | 100 |
| Φ6.0 | 6.8±0.3 | 0.25 | 3 | 0.5 | 100 |
| Φ7.0 | 7.7±0.3 | 0.25 | 3.5 0 | 0.56 | 100 |
| Φ8.0 | 8.8±0.3 | 0.3 | 4 | 0.56 | 100 |
| Φ9.0 | 9.8±0.3 | 0.3 | 4.5 | 0.56 | 100 |
| Φ10 | 10.7±0.4 | 0.3 | 5 | 0.56 | 100 |
| Φ11 | 11.7±0.4 | 0.3 | 5. 50 | 0.56 | 100 |
| Φ12 | 12.7±0.4 | 0.3 | 6 | 0.56 | 50 |
| Φ13 | 13.7±0.4 | 0.35 | 6.5 | 0.69 | 50 |
| Φ14 | 14.7±0.4 | 0.35 | 7 | 0.69 | 50 |
| Φ15 | 15.7±0.5 | 0.35 | 7.5 | 0.69 | 50 |
| Φ16 | 16.7±0.5 | 0.35 | 8 | 0.69 | 50 |
| Φ18 | 19.0±0.5 | 0.4 | 9 | 0.77 | 50 |
| Φ20 | 21.4±0.5 | 0.4 | 10 | 0.89 | 50 |
| Φ22 | 23.4±0.6 | 0.45 | 11 | 0.89 | 50 |
| Φ25 | 26.5±0.8 | 0.45 | 12 | 0.89 | 50 |
| Φ28 | 29.5±0.8 | 0.45 | 14 | 0.95 | 50 |
| Φ30 | 31.5±0.8 | 0.45 | 15 | 0.95 | 50 |
| Φ35 | 36.5±0.8 | 0.5 | 17.5 | 1.1 | 50 |
| Φ40 | 42.0±0.8 | 0.5 | 20 | 1.1 | 50 |
| Φ50 | 52.0±0.8 | 0.5 | 25 | 1.15 | 50 |
Special size, cut pieces are available on request.
| Property | Test Method | Typical Data |
| Operating temperature | UL 224 | -55 to +105℃ |
| Tensile strength | ASTM D 2671 | >10.4MPa |
| Elongation at break | ASTM D 2671 | >500% |
| Longitudinal shrinkage | UL 224 | +/- 5% |
| Eccentricity | ASTM D 2671 | <30% |
| Flammability | ----- | Flammable |
| Dielectric strength | IEC93 | >25KV/mm |
| Volume resistance | ASTM D 2671 | >1014 Ω.cm |
| Copper stability | ISO62 | Pass |
