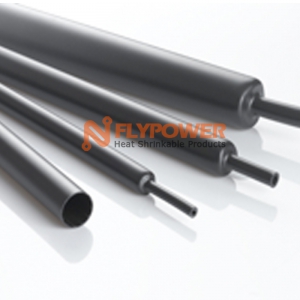

MEDIUM WALL POLYOLEFIN HEAT SHRINKABLE TUBING BH-B2

{tab=Specification}

Normal size(mm)

As supplied (mm)

After recovered (mm)

Style

Standard length(mm)

Inside diameter(min.)

Inside  diameter(Max.)

Wall  thickness(mm)

8/2

8

2

1.7

—

30

12/3

12

3

2.0

—

30

16/5

16

5

2.2

—

30

22/6

22

6

2.5

—

30

33/10

33

10

2.7

—

30

40/12

40

12

2.7

—

30

48/16

48

16

2.7

—

30

55/19

55

19

2.7

—

30

*Style  “O” : Round shape or Oval,  “ – ”:Flattened

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D2671

≥14MPa

Elongation at break

ASTM D2671

≥600%

Density

ASTM D792

1.05g/cm3

Longitudinal shrinkage

UL224

0 to -10%

Dielectric strength

IEC243

≥20kV/mm

Volume resistance

IEC93

≥1014Ω.cm

Dielectric constant

IEC250

3.0

Water absorption

ISO 62/23℃,14days

<0.15%

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Mon, 21 Apr 2014 17:38:20 +0800 SEMI-RIGID MEDIUM WALL TUBING WITHOUT HOT MELT ADHESIVE 3:1 BH-R2 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/86-semi-rigid-medium-wall-tubing http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/86-semi-rigid-medium-wall-tubing SEMI-RIGID MEDIUM WALL TUBING WITHOUT HOT MELT ADHESIVE 3:1 BH-R2

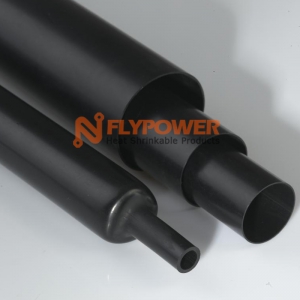

SEMI-RIGID MEDIUM WALL TUBING WITHOUT HOT MELT ADHESIVE 3:1 BH-R2

{tab=Specification}

Normal size(mm)

As supplied (mm)

After recovered (mm)

Style

Standard length(mm)

Inside diameter(min.)

Inside  diameter(Max.)

Wall  thickness(mm)

BH-R2 8/2

8

2

1.7

—

30M/Spoll

BH-R2 12/3

12

3

2.0

—

30M/Spoll

BH-R2 16/5

16

5

2.2

—

30M/Spoll

BH-R2 22/6

22

6

2.2

O

1000-1500mm

BH-R2 33/8

33

8

2.5

O

1000-1500 mm

BH-R2 40/12

40

12

2.5

O

1000-1500 mm

BH-R2 55/16

55

16

2.7

O

1000-1500 mm

BH-R2 65/19

65

19

2.8

O

1000-1500 mm

BH-R2 75/22

75

22

3.0

O

1000-1500 mm

BH-R2 85/25

85

25

3.0

O

1000-1500 mm

BH-R2 95/25

95

25

3.0

O

1000-1500 mm

BH-R2 115/34

115

34

3.0

O

1000-1500 mm

BH-R2 140/42

140

42

3.0

—

1000-1500 mm

BH-R2 160/50

160

50

3.0

—

1000-1500 mm

BH-R2 180/58

180

58

3.0

—

1000-1500 mm

BH-R2 205/65

205

65

3.0

—

1000-1500 mm

BH-R2 235/65

235

65

3.0

—

1000-1500 mm

BH-R2 265/75

265

75

3.0

—

1000-1500 mm

BH-R2 300/85

300

85

3.0

—

1000-1500 mm

BH-R2 350/100

350

100

3.0

—

1000-1220 mm

*Style  “O” : Round shape or Oval,  “ – ”:Flattened

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D2671

≥14MPa

Tensile strength after aging

ASTM D 2671/150℃, 168hrs.

≥12MPa

Elongation at break

ASTM D2671

≥400%

Elongation at break after aging

ASTM D 2671/150℃, 168hrs.

≥300%

Density

ASTM D792

1.05g/cm3

Longitudinal shrinkage

UL224

0 to -10%

Dielectric strength

IEC243

≥20kV/mm

Volume resistance

IEC93

≥1014Ω.cm

Eccentricity

ASTM D2671

<30%

Copper stability

ASTM D2671

Pass

Resistance to stress cracking (50℃)

ASTM D1693

No Cracking

Water absorption

ISO 62/23℃,14days

<0.15%

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Fri, 25 Apr 2014 10:40:32 +0800 SEMI-RIGID MEDIUM WALL TUBING WITH HOT MELTING ADHESIVE 3:1 BH-RA2 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/88-semi-rigid-medium-wall-tubing http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/88-semi-rigid-medium-wall-tubing SEMI-RIGID MEDIUM WALL TUBING WITH HOT MELTING ADHESIVE 3:1 BH-RA2

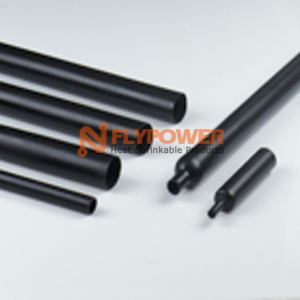

SEMI-RIGID MEDIUM WALL TUBING WITH HOT MELTING ADHESIVE 3:1 BH-RA2

{tab=Specification}

Normal size(mm) As supplied(mm)  After recovered(mm) Style Standard
Inside diameter(min.) Inside diameter(Max.) Wall thickness(mm) length(mm)
19/5 19 5 2.5 o 1000-1220
22/6 22 6 2.5 o 1000-1500
28/6 28 6 2.5 o 1000-1500
33/8 33 8 2.5 o 1000-1500
40/12 40 12 2.5 o 1000-1500
55/16 55 16 2.7 o 1000-1500
65/19 65 19 2.8 o 1000-1500
75/22 75 22 3 o 1000-1500
85/25 85 25 3 o 1000-1500
95/25 95 25 3 o 1000-1500
115/34 115 34 3 o 1000-1500
140/42 140 42 3 o 1000-1500
160/50 160 50 3 o 1000-1500
180/58 180 58 3 o 1000-1500
205/65 205 65 3 o 1000-1500
235/65 235 65 3 o 1000-1500
265/75 265 75 3 o 1000-1500
300/85 300 85 3 o 1000-1500
350/100 350 100 3 o 1000-1220

 *Style  “O” : Round shape or Oval,  “ – ”:Flattened

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D2671

≥14MPa

Tensile strength after aging

ASTM D 2671/150℃, 168hrs.

≥12MPa

Elongation at break

ASTM D2671

≥400%

Elongation at break after aging

ASTM D 2671/150℃, 168hrs.

≥300%

Density

ASTM D792

1.05g/cm3

Longitudinal shrinkage

UL224

0 to -10%

Dielectric strength

IEC243

≥20kV/mm

Volume resistance

IEC93

≥1014Ω.cm

Eccentricity

ASTM D2671

<30%

Copper stability

ASTM D2671

Pass

Resistance to

 stress cracking

ASTM D1693

(50℃)

No Cracking

Water absorption

ISO 62/23℃,14days

<0.15%

Thermoplastic adhesive

Water absorption

ISO 62

<0.2%

Softening point

ASTM D E28

85℃

Peel strength (PE)

DIN 30672

4 N/cm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass











































{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Fri, 25 Apr 2014 12:05:49 +0800 FLAME RETARDANT MEDIUM WALL HEAT SHRINK TUBING WITH HOT MELTING ADHESIVE BH-FRA2 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/85-flame-retardant-medium-wall-heat-shrink-tubing-with-hot-meltink-adhesive http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/85-flame-retardant-medium-wall-heat-shrink-tubing-with-hot-meltink-adhesive FLAME RETARDANT MEDIUM WALL HEAT SHRINK TUBING WITH HOT MELTING ADHESIVE BH-FRA2

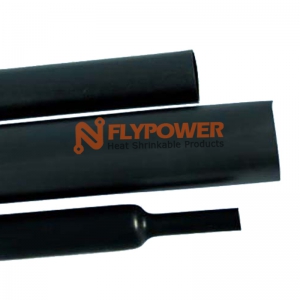

FLAME RETARDANT MEDIUM WALL HEAT SHRINK TUBING WITH HOT MELTING ADHESIVE  BH-FRA2

{tab=Specification}

Normal size(mm)

As supplied(mm)

After recovered (mm)

*Style

Standard length(mm)

Inside diameter(min.)

Inside diameter(Max.)

Wall thickness(Min)

22/6

22

6

2.5

O

1000-1500

33/8

33

8

2.5

O

1000-1500

40/12

40

12

2.5

O

1000-1500

55/16

55

16

2.7

O

1000-1500

65/19

65

19

2.8

O

1000-1500

75/22

75

22

3.0

O

1000-1500

95/25

95

25

3.0

O

1000-1500

115/34

115

34

3.0

O

1000-1500

140/42

140

42

3.0

O

1000-1500

160/50

160

50

3.0

O

1000-1500

180/58

180

58

3.0

O

1000-1500

200/65

200

65

3.0

O

1000-1500

235/65

235

65

3.0

O

1000-1500

265/75

265

75

3.0

O

1000-1500

300/85

300

85

3.0

O

1000-1500

 *Style : “ O” round shape or Oval

{tab=Technical Data}



Property

Test Method

Typical Data

Tensile strength

ASTM D 2671

≥14MPa

Tensile strength after aging

ASTM D 2671/158℃, 168hrs.

≥12MPa

Longitudinal change after shrinking

ASTM D 2671

0,  -10%

Elongation at break

ASTM D 2671

≥300%

Elongation at break after aging

ASTM D 2671/120℃,168hrs.

≥200%

Dielectric strength

IEC 243

≥20KV/mm

Heat shock (4hrs. at 225℃)

ASTM D 2671

No cracking or flowing

Volume resistance

IEC 93

≥1014Ω.cm

Flammability

SAE-AMS-DTL-23053/5

Self extinguish in 30 sec.

Thermoplastic adhesive

Water absorption

ISO 62

<0.2%

Softening point

ASTM D E28

85℃

Peel strength (PE)

DIN 30672

4 N/cm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass
{/tabs}
]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Thu, 24 Apr 2014 11:20:06 +0800 HEAVY WALL HEAT SHRINKABLE TUBING WITHOUT HOT MELTING ADHESIVE 3:1 BH-R3 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/87-heavy-wall-heat-shrinkable-tubing http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/87-heavy-wall-heat-shrinkable-tubing HEAVY WALL HEAT SHRINKABLE TUBING WITHOUT HOT MELTING ADHESIVE 3:1 BH-R3

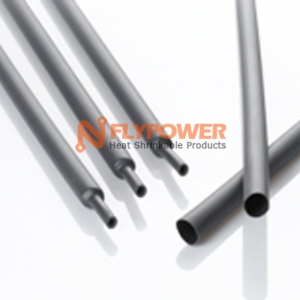

HEAVY WALL HEAT SHRINKABLE TUBING WITHOUT HOT MELTING ADHESIVE 3:1 BH-R3

{tab=Specification}

Normal size(mm)

As supplied(mm)

After recovered (mm)

*Style

Standard length(mm)

Inside diameter(min.)

Inside  diameter(Max.)

Wall thickness(mm)

9/3

9

3

1.8

O

1000-1500

13/4

13

4

2.4

O

1000-1500

22/6

22

6

2.7

O

1000-1500

33/8

33

8

3.2

O

1000-1500

40/12

40

12

4.1

O

1000-1500

45/12

45

12

4.1

O

1000-1500

55/16

55

16

4.1

O

1000-1500

75/22

75

22

4.1

O

1000-1500

85/25

85

25

4.3

O

1000-1500

95/30

95

30

4.3

O

1000-1500

105/30

105

30

4.3

O

1000-1500

130/36

130

36

4.3

—

1000-1500

160/50

160

50

4.3

—

1000-1500

180/50

180

50

4.3

—

1000-1500

200/60

200

60

4.3

—

1000-1500

*Style  “O” : Round shape or Oval,  “ – ”:Flattened

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D2671

≥14MPa

Tensile strength after aging

ASTM D 2671/150℃, 168hrs.

≥12MPa

Elongation at break

ASTM D2671

≥400%

Elongation at break after aging

150℃ ,168hrs

≥300%

Density

ASTM D792

1.05g/cm3

Longitudinal shrinkage

UL224

0 to -10%

Dielectric strength

IEC243

≥20kV/mm

Volume resistance

IEC93

≥1014Ω.cm

Eccentricity

ASTM D2671

<30%

Copper stability

ASTM D2671

Pass

Resistance to stress cracking (50℃)

ASTM D1693

No Cracking

Water absorption

ISO 62/23℃,14days

<0.15%

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Fri, 25 Apr 2014 11:22:16 +0800 SEMI-RIGID HEAVY WALL POLYOLEFIN HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-RA3 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/145-bh-ra3 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/145-bh-ra3 SEMI-RIGID HEAVY WALL POLYOLEFIN HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-RA3

SEMI-RIGID HEAVY WALL POLYOLEFIN HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-RA3

{tab=Specification}

Normal size(mm)

As supplied(mm)

After recovered (mm)

*Style

Standard length(mm)

Inside diameter(min.)

Inside  diameter(Max.)

Wall  thickness(mm)

9/3

9

3

1.8

O

1000-1500

13/4

13

4

2.4

O

1000-1500

22/6

22

6

2.7

O

1000-1500

33/8

33

8

3.2

O

1000-1500

40/12

40

12

4.1

O

1000-1500

45/12

45

12

4.1

O

1000-1500

55/16

55

16

4.1

O

1000-1500

75/22

           75

22

4.1

O

1000-1500

85/25

85

25

4.3

O

1000-1500

95/30

95

30

4.3

O

1000-1500

105/30

105

30

4.3

O

1000-1500

130/36

130

36

4.3

—

1000-1500

160/50

160

50

4.3

—

1000-1500

180/50

180

50

4.3

—

1000-1500

200/60

200

60

4.3

—

1000-1500

*style  “O”: round or oval

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D2671

≥14MPa

Tensile strength after aging

ASTM D 2671/150℃, 168hrs.

≥12MPa

Elongation at break

ASTM D2671

≥400%

Elongation at break after aging

150℃ ,168hrs

≥300%

Density

ASTM D792

1.05g/cm3

Longitudinal shrinkage

UL224

0 to -10%

Dielectric strength

IEC243

≥20kV/mm

Volume resistance

IEC93

≥1014Ω.cm

Eccentricity

ASTM D2671

<30%

Copper stability

ASTM D2671

Pass

Resistance to stress cracking (50℃)

ASTM D1693

No Cracking

Water absorption

ISO 62/23℃,14days

<0.15%

Thermoplastic adhesive

Water absorption

ISO 62

<0.2%

Softening point

ASTM D E8

85℃

Peel strength (PE)

DIN 30672

4 N/cm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Tue, 20 May 2014 17:12:09 +0800 FLAME RETARDANT HEAVY WALL HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-FRA3 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/146-bh-fra3 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/146-bh-fra3 FLAME RETARDANT HEAVY WALL HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-FRA3

FLAME RETARDANT HEAVY WALL HEAT SHRINKABLE TUBING WITH HOT MELTING ADHESIVE BH-FRA3

{tab=Specification}



Normal size(mm) As supplied(mm) After recovered (mm) *Style Standard length(mm)
Inside diameter(min.) Inside  diameter(Max.) Wall  thickness(Nom.)
9/3 9 3 2 O 1000-1500
13/4 13 4 2.5 O 1000-1500
22/6 22 6 2.7 O 1000-1500
33/8 33 8 3.2 O 1000-1500
40/12 40 12 4.1 O 1000-1500
55/16 55 16 4.1 O 1000-1500
75/22 75 22 4.1 O 1000-1500
95/29 95 29 4.1 O 1000-1500
115/34 115 34 4.3 O 1000-1500
130/36 130 36 4.3 O 1000-1500

*style  “O”: round or oval



{tab=Technical Data}

Property

Test Method

Typical Data

Tensile strength

ASTM D 2671

≥14MPa

Tensile strength after aging

ASTM D 2671/158℃, 168hrs.

≥12MPa

Longitudinal change after shrinking

ASTM D 2671

0,  -10%

Elongation at break

ASTM D 2671

≥300%

Elongation at break after aging

ASTM D 2671/120℃,168hrs.

≥200%

Dielectric strength

IEC 243

≥20KV/mm

Heat shock (4hrs. at 225℃)

ASTM D 2671

No cracking or flowing

Volume resistance

IEC 93

≥1014Ω.cm

Flammability

SAE-AMS-DTL-23053/5

Self extinguish in 30 sec.

Thermoplastic Adhesive

Water absorption

ISO 62

<0.2%

Softening point

ASTM D E28

85℃

Peel strength (PE)

DIN 30672

4 N/cm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Tue, 20 May 2014 18:24:32 +0800 5.6:1 FLAME RETARDANT MEDIUM WALL HEAT SHRINKABLE TUBING BH-FR5X http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/147-bh-fr5x http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/147-bh-fr5x 5.6:1 FLAME RETARDANT MEDIUM WALL HEAT SHRINKABLE TUBING BH-FR5X

5.6:1 FLAME RETARDANT MEDIUM WALL HEAT SHRINKABLE TUBING BH-FR5X

{tab=Specification}

Normal size (mm) As supplied (mm) After recovered (mm)
Inside diameterMin.) Inside diameter (Max.) Wall thickness
BH-FR5X  15/4 15 3.8 1.52
BH-FR5X  32/6 32 5.6 1.52
BH-FR5X  45/8 45 8 2.4
BH-FR5X  51/10 51 9.5 2.7



{tab=Technical Data}

Property

Test Method

TypicalData

Tensile strength

ASTM D2671

>16MPa

Elongation at break

ASTM D2671

>500%

Tensile strength after aging（175℃，168hrs）

ASTM D2671

>14Mpa

Elongation after aging（175℃，168hrs）

ASTM D2671

>250％

Flammability

Self-extinguish in 30sec

Pass

Heat shock（250℃，4hrs）

ASTM D2671

No cracking

Cold bend test（-55℃，4hrs）

ASTM D2671

No cracking

Dielectric strength

      ASTM 150

20kV/mm>

Volume resistance

      ASTM 876

>1014Ω.cm

Copper corrosion

UL224

Pass

Water absorption

ASTM D570

>0.15%

Chemical resistance

SAE-AMS-DTL-23053/5

Pass

Longitudinal shrinkage

UL224

-5％～+5％

Eccentricity

UL224

<30%

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Wed, 21 May 2014 11:04:26 +0800 HEAVY WALL HEAT SHRINKABLE TUBING HIGH SHRINK RATO 6:1 BH-RA6X http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/92-heavy-wall-heat-shrinkable-tubing-high-shrink-rato-6-1 http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/92-heavy-wall-heat-shrinkable-tubing-high-shrink-rato-6-1 HEAVY WALL HEAT SHRINKABLE TUBING HIGH SHRINK RATO 6:1 BH-RA6X

 6:1 Heavy wall heat shrinkable tubing high idea for applications to extremely different diameter between cables, connectors and components. The very high shrink ratio provides close fit to a wide variety of irregular shapes connector and figurations. Provide excellent mechanical protection to cable joints and terminations ,complete environmental sealing, and resistant to impact and abrasion.



{tab=Specification}

Normal size(mm)

As supplied(mm)

After recovered (mm)

*Style

Standard length(mm)

Inside diameter(min.)

Inside diameter(Max.)

Wall  thickness(mm)

19/3.2

19

3.2

3.2

O

1000-1220

33/5.5

33

5.5

3.4

O

1000-1220

44.4/7.4

44.4

7.4

3.6

O

1000-1220

50.8/8.3

50.8

8.3

4.3

O

1000-1220

69.8/11.7

69.8

11.7

4.8

O

1000-1220

88.9/17.1

88.9

17.1

4.8

O

1000-1220

119.4/22.9

119.4

22.9

4.8

O

1000-1220

235/40

235

40

4.8

O

1000-1220

*style  “O”: round or oval

{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to 110℃

Tensile strength

ASTM D 2671

≥14MPa

Tensile strength after aging

ASTM D 2671/158℃, 168hrs.

≥12MPa

Longitudinal shrinkage

UL224

0,  -10%

Elongation at break

ASTM D 2671

≥400%

Elongation at break after aging

ASTM D 2671/150℃,168hrs.

≥300%

Dielectric strength

IEC 243

≥20KV/mm

Volume resistance

IEC 93

≥1014Ω.cm

Heat shock(225℃/4hrs)

ASTM D 2671

No cracking or flowing

Thermoplastic Adhesive

Water absorption

ISO 62

<0.2%

Softening point

ASTM D E28

85℃

Peel strength (PE)

DIN 30672

4 N/cm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Sat, 26 Apr 2014 09:49:50 +0800 MEDIUM WALL ADHESIVE-LINED POLYOLEFIN TUBING FOR CATV NETWORK BH-STV http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/148-bh-stv http://www.atynt.com/en/products/medium-heavy-wall-tubing/item/148-bh-stv MEDIUM WALL ADHESIVE-LINED POLYOLEFIN TUBING FOR CATV NETWORK BH-STV

MEDIUM WALL ADHESIVE-LINED POLYOLEFIN TUBING FOR CATV NETWORK BH-STV

{tab=Specification}

Model Number As supplied (mm) After recovered (mm) Standard length(mm)
Inside diameter(min.) Inside  diameter(Max.) Wall  thickness(Nom.)
BH-STV 0400(10/3.8) 10 3.8 2 1220
BH-STV 0750(19/5.6) 19 5.6 2 1220
BH-STV 1100(28/9) 28 9 2 1220
BH-STV 1300(33/10) 33 10 2 1220
BH-STV 1500(38/12) 38.1 12 2 1220
BH-STV 1700(45/13) 45 13 2 1220
BH-STV 2050(55/19) 55 19 2 1220
BH-STV 2750(70/25) 70 25 2 1220



{tab=Technical Data}

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110℃

Tensile strength

ASTM D 2671

>15MPa

Elongation at break

ASTM D 2671

>600%

Longitudinal Shrinkage

UL 224

0 to -10%

Eccentricty

ASTM D 2671

<30%

Elongation at break after aging

ASTM D 2671/150℃,168hrs.

>400%

Dielectric strength

IEC 243

≥20KV/mm

Volume resistance

IEC 93

>1014Ω.cm

Copper stability

ASTM D 2671

Pass

Resistance to stress cracking(50℃)

ASTM D 1693

No cracking

Cold bend test(-55℃/4hrs)

ASTM D 2671

No cracking

Thermoplastic Adhesive for BH-STV

Water absorption

ISO 62

<0.1%

Softening point

ASTM D E28

85℃

Peel strength (PE)

ASTM D 1000

110 N/25mm

Copper stability

ASTM D 2671

Non-corrosive

Resistance to fungus and decay

ISO 846

Pass

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Medium & Heavy Wall Tubing Wed, 21 May 2014 12:06:07 +0800 欧美视频
