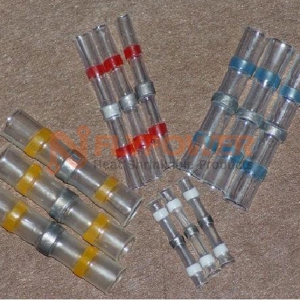

BH-STG general solder ring wire splice heat shrinkable tubing,One piece design, it consists of transparent heat shrinkable tubing and fluxed solder. Provides insulation, inspection, strain relief and water proof. Makes installation easily and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it very convenience to use exact wire dimension.

{tab=Specification}

Part Number

Product Dimensions

Wire Dimensions(mm)

Cable Size

Standard Color

A(Min)

L(Max)

B(Min)

B(Max)
C(Max)

C(Min)

AWG(mm2)

BH-STG-01

1.7

26.0

1.0

1.7

0.76

26～24(0.25～0.34)

White

BH-STG-02

2.7

40.0

1.4

2.7

1.2

22～18(0.5～1.0)

Red

BH-STG-03

4.5

40.0

2.3

4.5

2

16～14(1.5～2.5)

Blue

BH-STG-04

6.0

40.0

3.7

6.0

3.4

12～10(4.0～6.0)

Yellow

BH-STG-05

11.5

35.0

5.8

11.5

5.5

10～6(6.0～14.0)

Blue

BH-STG-06

13.0

44.0

6.8

13.0

6.5

8～4(8.0～22.0)

Blue

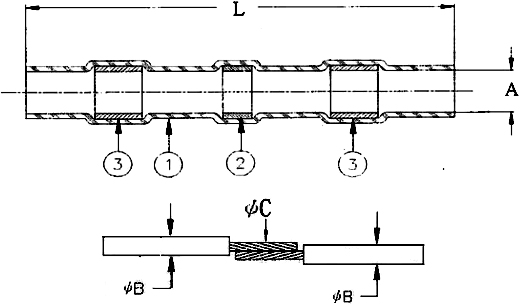

1.  Heat shrinkable tubing

2.  Low temperature solder ring

3.  Waterproof hot melt adhesive

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Thu, 31 Jul 2014 15:19:52 +0800 Solder sleeve shield terminator BH-STC http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/238-solder-sleeve-shield-terminator-bh-stc http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/238-solder-sleeve-shield-terminator-bh-stc Solder sleeve shield terminator BH-STC

BH-STC solder sleeve shield terminator, one piece design?used for shield to ground termination. KYNAR transparent?sleeve provides insulation, inspection, strain relief and is?waterproof. Preinstalled ground leads and prefluxed?solder perform provides a perfectly soldered,strain-relieved and environmentally protected termination.

?

{tab=Specification}?

Part No.

Product Size(mm)

Cable size(mm)

A(±0.07)

B(Min.)

C(Min.)

Jacket Dia.（min.）

Shield Dia.（min.）

BH-STC-01

16.5

1.9

2.7

1.9

0.9

BH-STC-02

16.5

2.7

3.7

2.7

1.4

BH-STC-03

16.5

4.3

5.1

4.3

2.2

BH-STC-04

19.1

6

6.5

6

3.3

BH-STC-05

19.1

7

7.6

7

4.3

Solder ring shield terminator

{tab=Technical Data}?

Property

Typical Data

Voltage drop

≤2.5mV

Tensile strength

Exceeds strength of ground lead

Dielectric voltage withstand

≥2.0KV

Operation temperature range

-55°C～+150°C

Isolation resistivity

100,000 mΩ

Flammablility

Self extinguish in 5 seconds

Fluid resistance

23°C,24 Hrs, Isolation strength ≥2.0KV

?{/tabs}

?

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Thu, 31 Jul 2014 16:51:15 +0800 Excellent tensile strength solder ring wire splice heat shrinkable tubing BH-STT http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/237-excellent-tensile-strength-solder-ring-wire-splice-heat-shrinkable-tubing-bh-stt http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/237-excellent-tensile-strength-solder-ring-wire-splice-heat-shrinkable-tubing-bh-stt Excellent tensile strength solder ring wire splice heat shrinkable tubing BH-STT

BH-STT excellent tensile strength solder ring wire splice heat shrinkable tubing, one piece design, it consists of translucent improved polyolefine heat shrinkable tubing and fluxed solder.Provides insulation, inspection, strain relief and is waterproof.The color tube appear a proper wire size and makes installation easy and lowers the installed cost.

{tab=Specification}

Part Number

Product Dimensions

Solder Ring Size(mm)

Max. Bundle
Dia.(mm )

Standard Color

ID(±0.1mm)

L(Max)

ID(±0.1mm)

W.T(±0.05mm)

BH-STT-17

4.0

23

1.7

0.5

1.7

White

BH-STT-27

4.7

23

2.7

0.5

2.7

Red

BH-STT-45

5.7

40

4.5

0.55

4.5

Blue

BH-STT-60

6.7

40

6.0

0.60

6.0

Yellow

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Thu, 31 Jul 2014 16:17:55 +0800 Heat shrinkable crimp splice connector BH-BCS http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/115-heat-shrinkable-crimp-splice-connector-bh-bcs http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/115-heat-shrinkable-crimp-splice-connector-bh-bcs Heat shrinkable crimp splice connector BH-BCS

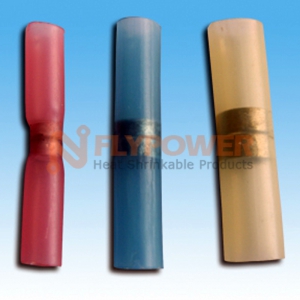

BH-BCS Heat shrinkable crimp splice connector protects splices from water and corrosion. Providing strain relief and against vibration in rugged environments, which excellently insulates and protects electronic connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.

{tab=Specification}

Order ref. Number

Tubing?ID(A)

Brass?ID(B)

length L(mm）

Wire

?

?Package

?

A.W.G.(MM2)

Standard

color

BH-BCS-1

4.7

1.7

35

22-18(0.5-1.0)

Red

100pcs/bag

BH-BCS-2

5.7

2.4

35

16-14(1.5-2.5)

Blue

100pcs/bag

BH-BCS-3

6.7

3.6

42

12-10(4.0-6.0)

Yellow

100pcs/bag

?

?

?

?

?

?

?

{tab=Technical Data}

Property

Test Method

Typical Data

Tensile strength

ASTM D 2671

26MPa(min)

Elongation at break

ASTM D 2671

500%(min)

Longitudinal shrinkage

UL224

0 to -10%

Heat shock

Tensile strength

Ultimate elongation

250℃,4hrs

No cracking, flowing of out wall

270%(min)

Heat resistance

165+5℃/168 hrs

No cracking, flowing of out wall

Cold bend -40℃,1hr

ASTM D 2671

No cracking

Voltage withstand AC 2500V, 60seconds

ASTM D 2671

No breakdown

Volume resistance

ASTM D 876

?

1014Ω.cm(min.)

Copper corrosion(158℃,168hrs.)

UL224

Pass

Water absorption

ASTM D 570

<0.5%

Fluid resistance(23 ℃/ 24 hrs)

ASTM D 2671

Good to excellent

Specific gravity

?

0.96

Dielectric strength

ASTM D 2671

32KV/mm

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Wed, 07 May 2014 10:14:50 +0800 Y type heat shrinkable fork terminal BH-YT http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/239-y-type-heat-shrinkable-terminal-bh-yt http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/239-y-type-heat-shrinkable-terminal-bh-yt Y type heat shrinkable fork terminal BH-YT

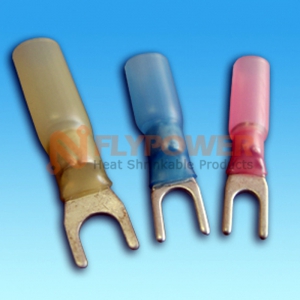

BH-YT Y type heat shrinkable fork terminal, it is composed of tinned copper terminals and double wall heat shrinkable tube, crimp terminals provide wire connection protection, double wall heat shrinkable tube is made by polyethylene with a layer of hot melt adhesive, which provides excellent sealing, waterproofing,insulation for the wires. Widely used in cable waterproof, anti salt, anti corrosion, compressive strength, wear protection, convenient installation.Application: wire processing, automobile accessories installation, maintenance, repair wire in marine electric wire, submersible pump / drilling motor wire and cable connection.



{tab=Specification}

Wire rang(mm2)
/AWG

Bolt Specifications　

Dimension(mm/inch)　

Color

Q’TY
(Pcs/Box)

Stud Size

d2

W

L

0.5-1.5mm2
22-16AWG

#4

3.2(. 126)

5.7（.224）

27.3（1.074）

Red

1000

#6

3.7(. 146)

6.4（.252）

27.7（1.090）

1000

#6

3.7(. 146)

5.7（.224）

27.3（1.074）

1000

#8

4.3( .169)

6.4（.252）

27.7（1.090）

1000

#8

4.3( .169)

7.2（. 283）

28.1（1.106）

1000

#10

5.3(. 209)

9.5（.374）

25.2（.992）

1000

1/4

6.4(. 252)

9.5（.374）

25.2（.992）

1000

1/4

6.4(. 252)

11.0（.433）

34.5（1.358）

1000

1.5-2.5 mm2
16-14AWG

#4

3.2(. 126)

6.0（.236）

27.5（1.082）

Blue

1000

#6

3.7(. 146)

6.4（.252）

27.7（1.090）

1000

#6

3.7(. 146)

6.0（.252）

27.5（1.082）

1000

#6

3.7(. 146)

7.2（.283）

28.1（1.106）

1000

#8

4.3(. .169)

6.8（.267）

27.7（1.090）

1000

#8

4.3(. .169)

7.2（.283）

28.1（1.106）

1000

#8

4.3(. .169)

8.0（.314）

28.5（1.112）

1000

#10

5.3(. 209)

8.5（.334）

28.5（1.112）

1000

#10

5.3(. 209)

9.5（.336）

29.2（1.149）

1000

1/4

6.4(. 252)

9.5（.336）

29.2（1.149）

1000

1/4

6.4(. 252)

11.0（.433）

34.5（1.358）

1000

4-6 mm2
12-10AWG

#4

3.2(. 126)

5.8（.228）

32.9（1.295）

Yellow

500

#6

3.7(. 146)

6.4（.252）

33.7（1.326）

500

#8

4.3(. .169)

7.2（.283）

33.7（1.326）

500

#10

5.3(. 209)

9.5（.374）

35.8（1.409）

500

1/4

6.4(. 252)

12.0（.472）

41.0（1.614）

500

1/4

6.4(. 252)

8.0（.314）

35.8（1.409）

500

5/16

8.4(. 332)

14.0（.551）

44.0（1.732）

500

3/8

10.0(.393)

18.0（.708）

46.5（1.830）

500

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Thu, 31 Jul 2014 18:04:41 +0800 R type heat shrinkable circular terminal BH-RT http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/240-r-type-heat-shrinkable-circular-terminal-bh-rt http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/240-r-type-heat-shrinkable-circular-terminal-bh-rt R type heat shrinkable circular terminal BH-RT

BH-RT R type heat shrinkable terminal, it is composed of tinned copper terminals and double wall heat shrinkable tube, crimp terminals provide wire connection protection, double wall heat shrinkable tube is made by polyethylene with a layer of hot melt adhesive, which provides excellent sealing, waterproofing,insulation for the wires. Widely used in cable waterproof, anti salt, anti corrosion, compressive strength, wear protection, convenient installation.Application: wire processing, automobile accessories installation, maintenance, repair wire in marine electric wire, submersible pump / drilling motor wire and cable connection.





{tab=Specification}

Wire Rang(mm2)
/AWG

Bolt Specifications　

Dimension(mm/inch)　

Color

Q'TY
(Pcs/Box)

Stud Size

d2

W

L

0.5-1.5mm2
22-16AWG

#4

3.2(. 126)

5.5(.216)

25.5(1.003)

Red

1000

#6

3.7(. 146)

6.6(.260)

27.6(1.086)

1000

#6

3.7(. 146)

5.5(.216)

25.5(1.003)

1000

#6

3.7(. 146)

8.0(.315)

29.0(1.141)

1000

#8

4.3(. .169)

8.0(.315)

29.0(1.141)

1000

#8

4.3(. .169)

6.6(.260)

27.6(1.086)

1000

#10

5.3(. 209)

11.6(.457)

34.7(1.366)

1000

#10

5.3(. 209)

8.0(.315)

29.0(1.141)

1000

1/4

6.4(. 252)

11.6(.457)

34.7(1.366)

1000

5/16

8.4(. 331)

12.0(.472)

34.7(1.366)

1000

3/8

10.0(. 393)

14.5(.570)

39.0(1.535)

1000

1.5-2.5mm2
16-14AWG

#4

3.2(. 126)

5.5(.216)

25.5(1.003)

Blue

1000

#6

3.7(. 146)

6.6(.260)

27.6(1.086)

1000

#6

3.7(. 146)

8.0(.315)

29.0(1.141)

1000

#8

4.3(. .169)

8.0(.315)

29.0(1.141)

1000

#8

4.3(. .169)

6.6(.260)

27.6(1.086)

1000

#10

5.3(. 209)

9.5(.374)

29.8(1.173)

1000

#10

5.3(. 209)

8.0(.315)

29.0(1.141)

1000

1/4

6.4(. 252)

12.0(.472)

34.7(1.366)

1000

5/16

8.4(. 331)

12.0(.472)

34.7(1.366)

1000

3/8

10.0(.393)

14.5(.570)

39.0(1.535)

1000

4-6 mm2
12-10AWG

#4

3.2(. 126)

7.2(.283)

32.7(1.287)

Yellow

500

#6

3.7(. 146)

7.2(.283)

32.7(1.287)

500

#8

4.3(. 169)

9.5(.374)

29.8(1.173)

500

#8

4.3(. 169)

7.2(.283)

32.7(1.287)

500

#10

5.3(. 209)

9.5(.374)

29.8(1.173)

500

1/4

6.4(. 252)

11.0(.433)

39.0(1.535)

500

5/16

8.4(. 331)

14.0(.551)

44.2(1.740)

500

3/8

10.0(.393)

15.0(.591)

44.2(1.740)

500

3/8

10.0(.393)

19.0(.748)

48.5(1.909)

500

1/2

13.0(.512)

19.0(.748)

48.5(1.909)

500

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Fri, 01 Aug 2014 11:12:46 +0800 Semi-insulation female heat shrinkable terminal BH-FMT http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/243-semi-insulation-female-heat-shrinkable-terminal-bh-fmt http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/243-semi-insulation-female-heat-shrinkable-terminal-bh-fmt Semi-insulation female heat shrinkable terminal BH-FMT

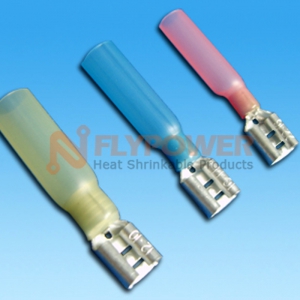

BH-FMT semi-insulation female heat shrinkable terminal, it is composed of tinned copper terminals and double wall heat shrinkable tube, crimp terminals provide wire connection protection, double wall heat shrinkable tube is made by polyethylene with a layer of hot melt adhesive, which provides excellent sealing, waterproofing,insulation for the wires. Widely used in cable waterproof, anti salt, anti corrosion, compressive strength, wear protection, convenient installation.Application: wire processing, automobile accessories installation, maintenance, repair wire in marine electric wire, submersible pump / drilling motor wire and cable connection.







{tab=Specification}

Wire Range mm2
/AWG

Tab Size

Dimensions(mm/inch)

Color

Q'TY
(Pcs/Box)

W

L

D

0.5-1.5mm2
22-16AWG

.020*.110（0.5*2.8）

3.2（.126）

27.0(1.062)

5.5(.216)

Red

1000

.032*.110 (0.8*2.8)

3.2（.126）

1000

.020*.187 (0.5*4.75)

5.0（.197）

1000

.032*.187(0.8*4.75)

5.0（.197）

1000

.032*.250(0.8*.635)

6.6（.260）

28.5（1.122）

1000

1.5-2.5mm2
16-14AWG

.020*.110 (0.5*2.8)

3.2（.126）

27.0（1.062）

6.0(.236)

Blue

1000

.032*.110(0.8*2.8)

3.2（.126）

 1000

.020*.187 (0.5*4.75)

5.0（.197）

 1000

.032*.187 (0.5*4.75)

5.0（.197）

 1000

.032*.250(0.8*6.35)

6.6（.260）

28.5（1.122）

1000

.032*.312(0.8*8.0)

8.2（.323）

33.5（1.318）

1000

4-6mm2
12-10AWG

.020*.187 (0.5*4.75)

5.0（.197）

29.0（1.141）

6.6(.259)

Yellow

500

.032*.187(0.8*4.75)

5.0（.197）

500

.032*.250(0.8*6.35)

6.6（.260）

500

.048*.375(1.2*6.35)

8.2（.323）

36.0(.259)

500

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Mon, 04 Aug 2014 14:23:52 +0800 Semi-insulation male heat shrinkable terminal BH-MT http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/244-semi-insulation-male-heat-shrinkable-terminal-bh-mt http://www.atynt.com/en/products/electrical-interconnector-heat-shrinkable-tubing/item/244-semi-insulation-male-heat-shrinkable-terminal-bh-mt Semi-insulation male heat shrinkable terminal BH-MT

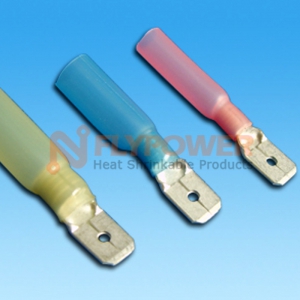

BH-MT semi-insulation male heat shrinkable terminal, it is composed of tinned copper terminals and double wall heat shrinkable tube, crimp terminals provide wire connection protection, double wall heat shrinkable tube is made by polyethylene with a layer of hot melt adhesive, which provides excellent sealing, waterproofing,insulation for the wires. Widely used in cable waterproof, anti salt, anti corrosion, compressive strength, wear protection, convenient installation.Application: wire processing, automobile accessories installation, maintenance, repair wire in marine electric wire, submersible pump / drilling motor wire and cable connection.







{tab=Specification}

Wire Rang(mm2)/AWG

Tab Size

Dimensions(mm/inch)

Color

Q'TY

(Pcs/Box)

W

L

D

0.5-1.5mm2
22-16AWG

.020*.110（0.5*2.8）

2.8（.110）

27.6(1.086)

5.5(.217)

Red

1000

.032*.110 (0.8*2.8)

2.8（.110）

28.5(1.122)

1000

.020*.187 (0.5*4.75)

4.75(.187)

27.6(1.086)

1000

.032*.187(0.8*4.75)

4.75(.187)

28.5(1.122)

1000

.032*.250(0.8*.635)

6.35(.250)

29.0(1.141)

1000

1.5-2.5 mm2
16-14AWG

.020*.187 (0.5*4.75)

4.75(.187)

27.0(1.062)

6.0(.236)

Blue

1000

.032*.187(0.8*4.75)

4.75(.187)

29.0(1.141)

1000

.032*.250(0.8*6.35)

6.35(.250)

29.0(1.141)

1000

.032*.312(0.8*8.0)

8.2(.323)

33.5(1.318)

1000

4-6 mm2
12-10AWG

.020*.187 (0.5*4.75)

4.75(.187)

32.5(1.279)

6.6(.259)

Yellow

500

.032*.187(0.8*4.75)

4.75(.187)

500

.032*.250(0.8*6.35)

6.35(.250)

500

.048*.375(1.2*9.5)

8.2(323)

36.0(1.417)

500

{/tabs}

]]> info@flypower-heatshrink.com (Super User) Electrical interconnector heat shrinkable tubing Mon, 04 Aug 2014 15:45:33 +0800 欧美视频
