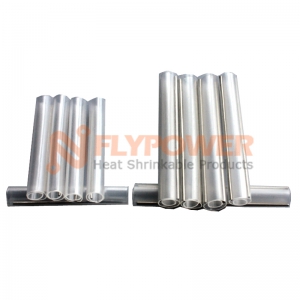

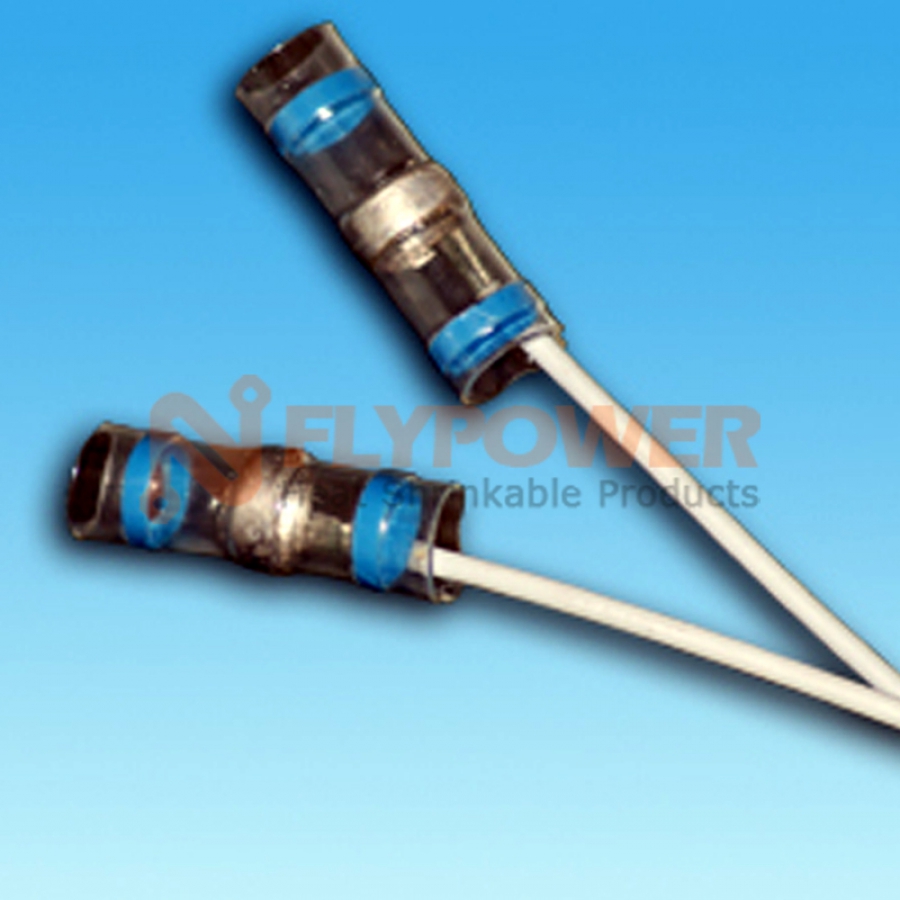

Solder sleeve shield terminator BH-STC
- Applications: BH-STC solder sleeve shield terminator, one piece design used for shield to ground termination. KYNAR transparent sleeve provides insulation, inspection, strain relief and is waterproof. Preinstalled ground leads and prefluxed solder perform provides a perfectly soldered,strain-relieved and environmentally protected termination.
-
Characteristics: Shrink ratio 2:1;
Waterproof wiring splices, abrasion and chemical corrosion resistance;
Transparent tubing provides precise inspection, easy control soldering process. -
Operating temperature range: Operating temperature range: -55°C～ +150°C;
Staring melt temperature of solder +140°C;
fully melt temperature of solder: +170°C. - Approvals / Specifications: RoHS
- Colors: Transparent, Other colors available on request

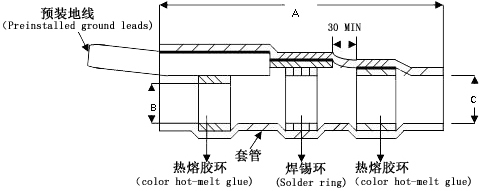

Part No. Product Size(mm) Cable size(mm) A(±0.07) B(Min.) C(Min.) Jacket Dia.（min.） Shield Dia.（min.） BH-STC-01 16.5 1.9 2.7 1.9 0.9 BH-STC-02 16.5 2.7 3.7 2.7 1.4 BH-STC-03 16.5 4.3 5.1 4.3 2.2 BH-STC-04 19.1 6 6.5 6 3.3 BH-STC-05 19.1 7 7.6 7 4.3 Property Typical Data Voltage drop ≤2.5mV Tensile strength Exceeds strength of ground lead Dielectric voltage withstand ≥2.0KV Operation temperature range -55°C～+150°C Isolation resistivity 100,000 mΩ Flammablility Self extinguish in 5 seconds Fluid resistance 23°C,24 Hrs, Isolation strength ≥2.0KV ? ?
?
?
