Heat shrinkable sleeve for corrosion protection of pipeline BH-FRY

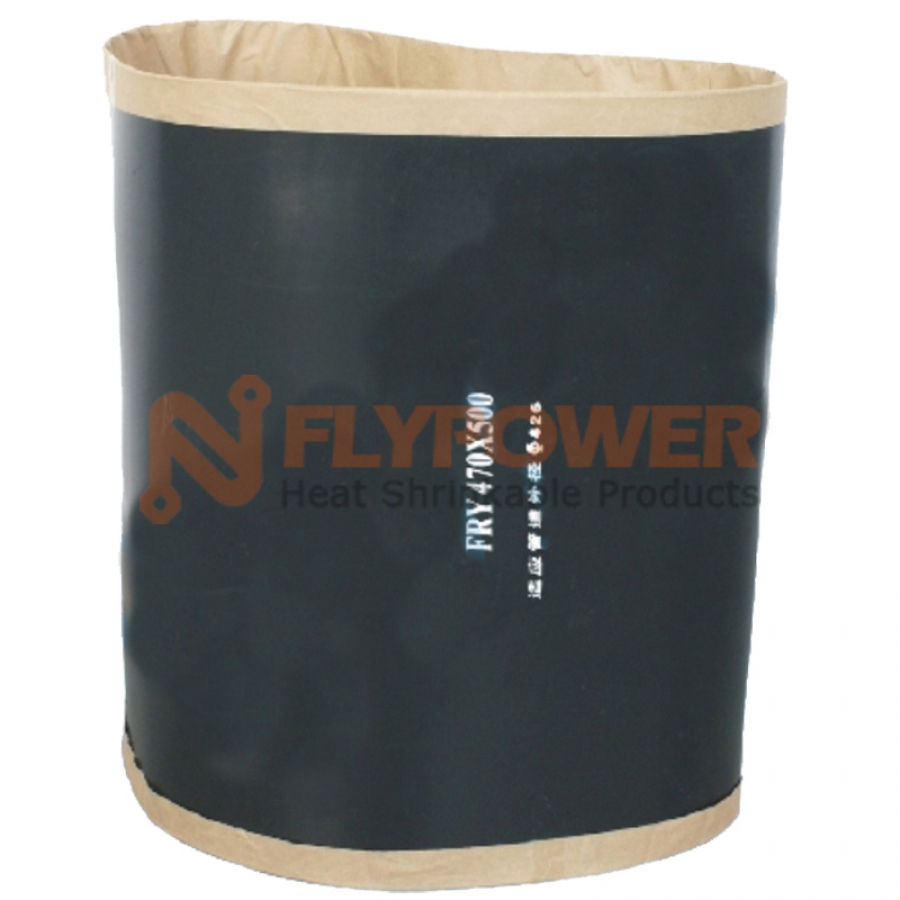

- Applications: BH-FRY heat shrinkable sleeve for corrosion protection of pipe, which is a heat-shrinkable, tubular sleeve which prevents corrosion of welded pipe joints in distribution lines for sizes up to DN1000. This mechanically strong and flexible sleeve is compatible with all standard pipeline coatings and outer jackets. The BH-FRY heat shrinkable tubular sleeve is mainly applied to provide anticorrosive protection for field welding and insulation mending in buried or aerial. Also it is available to provide sealing and anticorrosive protection for flanged joint and insulated flange. Mainly application for oil & gas pipelines, water pipelines and compatible line coating: PE, FBE, Coal Tar
-
Characteristics: Shrink ratio 2:1;
Conveniently installed, and easily operated, ? Easily adapts itself to the environment.
Long life service and excellent waterproof performance; - Operating temperature range: Minimum fully recovery temperature: 120℃
- Approvals / Specifications: Meet SY/T 0413-2002; GB/T 23257.
- Colors: Black
| Model | Suitable Dia. Of pipeline | Shrink Sleeve OD (mm) | Sleeve Thickness (mm) | Heat-Melt Adhesive Thickness(mm) |
| BH-FRY Φ114*500-1.2/0.8 | Φ114 | 154 | 1.2 | 0.8 |
| BH-FRY Φ159*500-1.2/0.8 | Φ159 | 209 | 1.2 | 0.8 |
| BH-FRYΦ219*500-1.2/0.8 | Φ219 | 269 | 1.2 | 0.8 |
| BH-FRYΦ273*500-1.2/0.8 | Φ273 | 323 | 1.2 | 0.8 |
| BH-FRYΦ325*500-1.2/0.8 | Φ325 | 375 | 1.2 | 0.8 |
| BH-FRYΦ377*500-1.2/0.8 | Φ377 | 427 | 1.2 | 0.8 |
| BH-FRYΦ426*500-1.5/0.8 | Φ426 | 476 | 1.5 | 0.8 |
| BH-FRYΦ529*500-1.5/0.8 | Φ529 | 579 | 1.5 | 0.8 |
| BH-FRYΦ630*500-1.5/0.8 | Φ630 | 680 | 1.5 | 0.8 |
| BH-FRYΦ720*500-1.5/0.8 | Φ720 | 770 | 1.5 | 0.8 |
| BH-FRYΦ813*500-1.5/0.8 | Φ813 | 863 | 1.5 | 0.8 |
| BH-FRYΦ920*500-1.5/0.8 | Φ920 | 970 | 1.5 | 0.8 |
| BH-FRYΦ1016*500-1.5/0.8 | Φ1016 | 1066 | 1.5 | 0.8 |
| BH-FRYΦ1220*500-1.5/0.8 | Φ1220 | 1270 | 1.5 | 0.8 |
| BH-FRYΦ1350*500-1.5/0.8 | Φ1350 | 1400 | 1.5 | 0.8 |
Remarks:
1. The above data is normal size. We can produce certain size of products according to the customers’ demand.
2. The matching accessories: Epoxy primer, Curing agent, Brush, Glove, Mix rod.
|
No. |
Item |
Unit |
Test results |
Test Method |
Conclusion |
|
|
1 |
Tensile strength |
MPa |
24.6 |
GB/T 1040.2/ASTM D638 |
Pass |
|
|
2 |
Ultimate Elongation |
% |
640 |
GB/T 1040.2/ASTM D638 |
Pass |
|
|
3 |
Electric strength |
MV/m |
32.3 |
GB/T 1408.1/ASTM D149 |
Pass |
|
|
4 |
Volume Resistivity |
Ω·m |
6.05×1013 |
GB/T 1410/ASTM D257 |
Pass |
|
|
5 |
chemical corrosion resistance 10% HCl （7d） 10% NaOH （7d） 10% NaCl （7d） |
% % % |
98 98 98 |
GB/T23257-2009 Appendix H |
Pass |
|
|
6 |
Heat Aging（150℃21d） (%Elongation) |
% |
554 |
GB/T 1040.2/ASTM D638 |
Pass |
|
|
7 |
Heat Shocking (225℃,4h) |
－ |
No cracking, flow, or dripping |
GB/T23257-2009 Appendix L/ASTM D2671 |
Pass |
|
|
8 |
Impact Resistance |
J |
＞15 |
GB/T23257 Appendixk/ ASTM G14 |
Pass |
|
|
9 |
Softening point of adhesive |
℃ |
115 |
GB/T 4507 |
Pass |
|
|
10 |
Lap Shear Strength |
KPa |
2053（23℃） |
GB/T 7124/ASTM D1693 |
Pass |
|
|
320（70℃） |
||||||
|
11 |
Peel strength |
PE/FBE |
N/cm |
191（23℃） |
Pass |
Pass
|
|
24（70℃） |
||||||
|
PE/PE |
185（23℃） |
|||||
|
23（70℃） |
||||||
|
PE/Steel |
166（23℃） |
|||||
|
22（70℃） |
||||||
|
12 |
Cathodic Disbondment |
mm |
16.5 31.2 |
ASTM G42 ASTM G8 |
Pass |
|
|
13 |
（70℃，120d） Hot-Water Immersion |
－ |
No delamination, blisters,or water under strap |
GB/T23257 AppendixN/ASTM B870 |
Pass |
|
|
14 |
Water Absorption |
％ |
0.05 |
SY/T0447/ASTM B570 |
Pass |
|
|
15 |
Low-Temperature Flexibility |
－ |
-15℃Min |
ASTM D2671 |
Pass |
|
