Communication cable accessories

Single heat shrinkable fiber optic splice protector BH-FSP

info@flypower-heatshrink.com (Super User) — Mon, 05 May 2014 08:59:28 +0800

BH-FSP single heat shrinkable fiber optic splice protector is consist of cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod, keep optic transmission properties of optical fiber, provide strength and protection to optical fiber splices.

{tab=Specification}

Model No.	Splice Protection Sleeve (After Shrinking)		Fusion tube		Steel Rod		Packing (pc/bag)
Model No.	O.D (±0.2mm)	Length (±1mm)	I.D (±0.1mm)	Length (±1mm)	O.D (±0.1mm)	Length (±1mm)	Packing (pc/bag)
BH-FSP-61/1.5	3	61	1.4	61	1.5	55	100
BH-FSP-45/1.5	3	45	1.4	45	1.5	40	100
BH-FSP-40/1.5	3	40	1.4	45	1.5	35	100
BH-FSP-25/1.5	3	25	1.4	25	1.5	20	100
BH-FSP-61/1.2	2.6	61	1.4	61	1.2	55	100
BH-FSP-45/1.2	2.6	45	1.4	45	1.2	40	100
BH-FSP-40/1.2	2.6	40	1.4	45	1.2	35	100
BH-FSP-25/1.2	2.6	25	1.4	25	1.2	20	100
BH-FSP-61/1.0	2.4	61	1.4	61	1	57	100
BH-FSP-45/1.0	2.4	45	1.4	45	1	41	100
BH-FSP-40/1.0	2.4	40	1.4	40	1	35	100
BH-FSP-30/1.0	2.4	30	1.4	30	1	25	100
BH-FSP-25/1.0	2.4	25	1.4	25	1	21	100
BH-FSP 40/0.8	2.2	40	1.4	40	0.8	40	100
BH-FSP 25/0.8	2.2	25	1.4	25	0.8	25	100
BH-FSP 18/0.8	2.2	18	1.4	18	0.8	18	100
BH-FSP 40/0.5	1.3	40	0.35	40	0.5	40	100
BH-FSP 25/0.5	1.3	25	0.35	25	0.5	25	100
BH-FSP 18/0.5	1.3	18	0.35	18	0.5	18	100
BH-FSP 15/0.5	1.3	15	0.35	15	0.5	15	100
BH-FSP 10/0.5	1.3	10	0.35	10	0.5	10	100

Other lengths and sizes are available on request.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	≥18 MP
Ultimate elongation	ASTM D 2671	700%
Density	ISO R 1183 D	0.94g/cm2
Dielectric strength	IEC 243	20KV/mm
Dielectric constant	IEC 243	2.5 max.
Longitudinal change	ASTM D2671	±5%.

{/tabs}

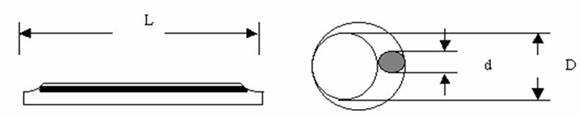

FTTH heat shrinkable fiber optic splice protector BH-FSP-FTTH

info@flypower-heatshrink.com (Super User) — Sat, 09 Aug 2014 10:19:32 +0800

BH-FSP-FTTH FTTH heat shrinkable fiber optic splice protector is consist of cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod. Designed for FTTH optical engineering to households, with hot melt connection for the FTTH cables or between the FTTH cable and the single core patch cord fiber.

{tab=Specification}

Model No.	Splice Protection Sleeve (As supplied)		Fusion tube		Steel Rod			Packing (Pcs/Bag)
Model No.	O.D (±0.2mm)	Length (±1mm)	I.D	Length (±1mm)	Q'TY (Pcs)	O.D (±0.1mm)	Length (±1mm)	Packing (Pcs/Bag)
Round tubing series
BH-FSP-FTTH-1-60R	5.0	60.0	3.6	60.0	1	1.0	55.0	100
BH-FSP-FTTH-1-50R	5.0	50.0	3.6	50.0	1	1.0	45.0	100
BH-FSP-FTTH-1-45R	5.0	45.0	3.6	45.0	1	1.0	40.0	100
BH-FSP-FTTH-2-60R	5.5	60.0	3.6	60.0	2	1.0	55.0	100
BH-FSP-FTTH-2-50R	5.5	50.0	3.6	50.0	2	1.0	45.0	100
BH-FSP-FTTH-2-45R	5.5	45.0	3.6	45.0	2	1.0	40.0	100
Squareness tubing series
BH-FSP-FTTH-1-60S	5*6	60.0	2.2*3.5	60.0	1	1.0	59.0	100
BH-FSP-FTTH-1-50S	5*6	50.0	2.2*3.5	50.0	1	1.0	49.0	100
BH-FSP-FTTH-1-45S	5*6	45.0	2.2*3.5	45.0	1	1.0	44.0	100
BH-FSP-FTTH-2-60S	5.5 *5.8	60.0	2.2*3.5	60.0	2	1.0	59.0	100
BH-FSP-FTTH-2-50S	5.5 *5.8	50.0	2.2*3.5	50.0	2	1.0	49.0	100
BH-FSP-FTTH-2-45S	5.5 *5.8	45.0	2.2*3.5	45.0	2	1.0	44.0	100

Other lengths and sizes are available on request.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	≥18 MP
Ultimate elongation	ASTM D 2671	700%
Density	ISO R 1183 D	0.94g/cm2
Dielectric strength	IEC 243	20KV/mm
Dielectric constant	IEC 243	2.5 max.
Longitudinal change	ASTM D2671	±5%.

{/tabs}

Ribbon heat shrinkable multiple fiber optic splice protector BH-FSP-R

info@flypower-heatshrink.com (Super User) — Wed, 11 Jun 2014 17:33:56 +0800

BH-FSP-R ribbon heat shrinkable multiple fiber optic splice protector is consist of cross linked polyolefin, hot fusion tubing and ceramic or quartz rod, keep optic transmission properties of optical fiber, provide strength and protection to multiple optical fiber splices.

{tab=Specification}

Model No.	Splice Protection Sleeve (After Shrinking)		Fusion tube		Rod		Packing (pcs/bag)
Model No.	O.D (±0.2mm)	Length (±1mm)	Width (±0.1mm)	Height (±1mm)	Width (±0.1mm)	Height (±1mm)	Packing (pcs/bag)
BH-FSP-R-C-4 core	3.4	42	1.3	2.2	3	1.5	100
BH-FSP-R-2C-4 core	4	42	1.3	2.2	3	1.5	100
BH-FSP-R-C-6 core	3.8	42	1.8	2.8	3	1.5	100
BH-FSP-R-2C-6 core	4.5	42	1.8	2.8	3	1.5	100
BH-FSP-R-C-8 core	4.8	42	2.4	3.4	4	2	100
BH-FSP-R-2C-8 core	5.5	42	2.4	3.4	4	2	100
BH-FSP-R-C-12 core	4.9	42	2.4	3.5	4	2	100
BH-FSP-R-2C-12 core	5.8	42	2.4	3.5	4	2	100
BH-FSP-R-Q-4 core	3.8	42	1.3	2.2	3	1.5	100
BH-FSP-R-2Q-4 core	4.6	42	1.3	2.2	3	1.5	100
BH-FSP-R-Q-6 core	3.8	42	1.8	2.8	3	1.5	100
BH-FSP-R-2Q-6 core	4.5	42	1.8	2.8	3	1.5	100
BH-FSP-R-Q-8 core	4.8	42	2.4	3.4	4	2	100
BH-FSP-R-2Q-8 core	5.5	42	2.4	3.4	4	2	100
BH-FSP-R-Q-12 core	4.9	42	2.4	3.5	4	2	100
BH-FSP-R-2Q-12 core	5.8	42	2.4	3.5	4	2	100

Remarks:

1. Other lengths and sizes are available on request;

2. BH-FSP-R-C: with Ceramic rod; BH-FSP-R-2C: with 2pcs Ceramic rod; BH-FSP-R-Q: with quartz rod; BH-FSP-R-2Q: with 2pcs quartz rod.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	≥18 MP
Ultimate elongation	ASTM D 2671	700%
Density	ISO R 1183 D	0.94g/cm2
Dielectric strength	IEC 243	20KV/mm
Dielectric constant	IEC 243	2.5 max.
Longitudinal change	ASTM D2671	±5%.

{/tabs}

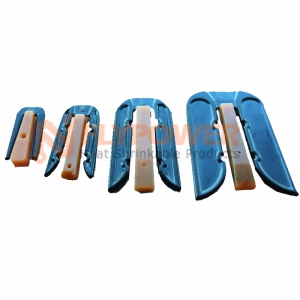

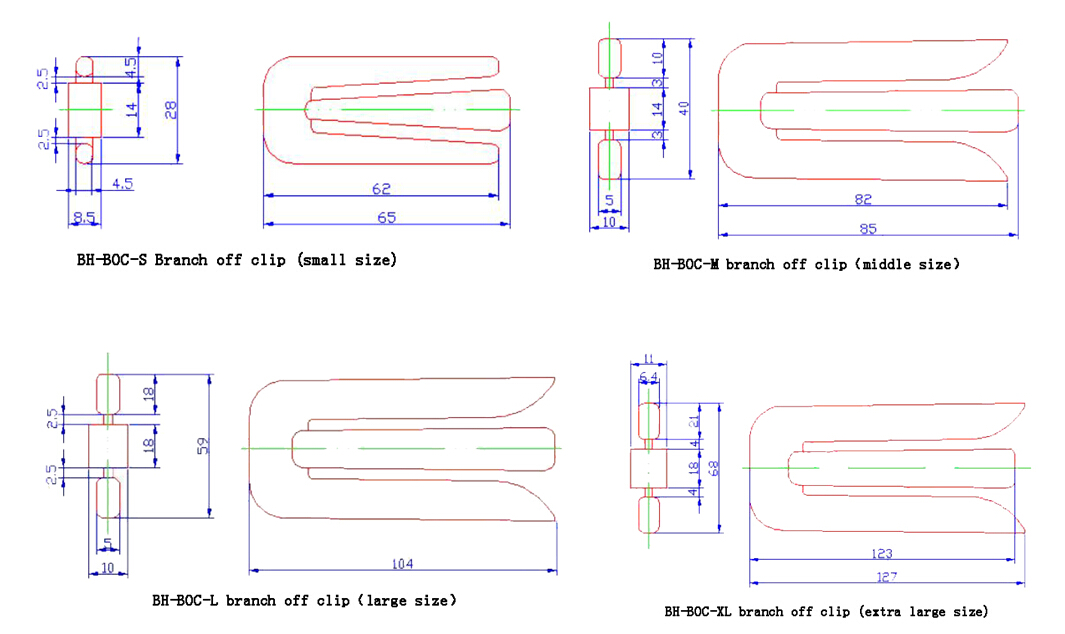

Branch-off clip for the telecommunication cable branch connection BH-BOC

info@flypower-heatshrink.com (Super User) — Mon, 30 Jun 2014 18:16:01 +0800

BH-BOC branch-off clip it is casted by aluminum alloy which resists to high temperature and coating by high temperature paint on the surface, the middle toe is molding by EVA or PA hot melting adhesive. It is use together with the heat shrinkable tube as branching in the communication cable/railway signal cable joint connection, it could be divided into two, three and so on, to achieve a variety of cable perfect branch.

{tab=Specification & Dimensions}

Model No.	Applicable cable pairs	Applicable heat shrinkable tubeDia.(mm)
BH-BOC-S	≤200	40-75
BH-BOC-M	200-400	75-105
BH-BOC-L	400-1200	105-140
BH-BOC-XL	≥1200	≥140

{/tabs}

Fiber optic closure heat shrink tubing BH-FOCT

info@flypower-heatshrink.com (Super User) — Wed, 07 Dec 2016 10:43:39 +0800

BH-FOCT Fiber optic closure heat shrink tubing is made of medium wall heat shrinkable tube,The internal surface is with a layer of spiral or strength coated holt melt adhesive. Out layer provide reliable protection. High quality hot melt adhesive provide excellent watertight and prevent leaking from terminal box. Mainly use for fiber optic closure (terminal box).

{tab=Specification}?

Model	As supplied	After recovered（mm）		Standard Length
Model	ID(Min)	ID(Max.)	Thickness	Standard Length
BH-FOCT 33/8	33	8	2.5	150,200,250mm
BH-FOCT 40/12	40	12	2.5	150,200,250mm
BH-FOCT 55/16	55	16	2.7	150,200,250mm
BH-FOCT 65/19	65	19	2.8	150,200,250mm
BH-FOCT 75/22	75	22	3	150,200,250mm
BH-FOCT 85/25	85	25	3	150,200,250mm
BH-FOCT 95/25	95	25	3	150,200,250mm
BH-FOCT 115/34	115	34	3	150,200,250mm
BH-FOCT 140/42	140	42	3	150,200,250mm
Remarks: 1. Special size, cut length are available on request;??? 2. The Fiber optic Closure mainly has the following style:??? 2.1 The tubing spreads with strength or spiral adhesive coating inside;??? 2.2 The tubing is coating with high temperature sensitive paint or not.??

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	≥14Mpa
Tensile strength after aging (150℃/168hrs.)	ASTM D 2671	≥12MPa
Elongation at break	ASTM D 2671	≥400%
Elongation at break after aging (150℃/168hrs.)	ASTM D 2671	≥300%
Density	ASTM D 792	1.05g/cm3
Longitudinal shrinkage	UL 224	0 to -10%
Dielectric strength	IEC 243	≥20kV/mm
Volume resistance	IEC 93	>1014?.cm
Eccentricity	ASTM D 2671	<30%
Copper stability	ASTM D 2671	Pass
Resistance to stress cracking (50℃)	ASTM D 1693	No cracking
Water absorption (23℃/14days)	ISO 62	<0.15%

{/tabs}

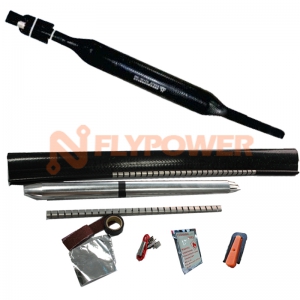

Communication cable Repair sleeve BH-RSW

info@flypower-heatshrink.com (Super User) — Tue, 17 Jun 2014 15:04:50 +0800

BH-RSW Cable Repair Sleeve which provides exceptional benefits in the repair and retrofit protection of aging cable infrastructures without disconnection of service.

{tab=Specification}

Model No.	As supplied Min. ID（mm）	After covered Max ID（mm）	Standard Length(mm)	Application for cable OD(mm)
BH-RSW 22/6-500	22	6	500	7～15
BH-RSW 36/10-500	36	10	500	12～20
BH-RSW 50/15-600	50	15	600	20～40
BH-RSW 60/18-700	60	18	700	30～50
BH-RSW 70/22-800	70	22	800	35～60
BH-RSW 80/25-900	80	25	900	40～70
BH-RSW 100/30-900	100	30	900	50～90
BH-RSW 135/35-900	135	38	900	60～120
BH-RSW 164/45-900	164	45	900	80～150
BH-RSW 185/55-900	185	55	900	90～170
BH-RSW 200/60-900	200	60	900	100～180
BH-RSW 220/65-900	220	65	900	120～210
BH-RSW 240/70-1000	240	70	1000	130～220
BH-RSW 260/75-1000	260	75	1000	150～240
BH-RSW 280/80-1000	280	80	1000	180～260
BH-RSW 300/85-1000	300	85	1000	200～280

Remarks:

1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, stainless steel channel clip, cleaning tissue, aluminum foil,sandper.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile Strength	ISO 37	17 MPa min.
Ultimate Elongation	ISO 37	350% min.
Density	ISO 1183 Method A	1.0 – 1.2 g/cm3
Hardness	ISO 868	50 – 70 D
Accelerated Aging	7 days at 150℃±2℃ ISO 188
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Thermal Endurance	IEC 60216	120℃
Low Temperature Flexibility	4 hours at –40℃±3℃	No cracking
Low Temperature Flexibility	ASTM D2671 Procedure C	No cracking
Dielectric Strength	IEC 60243	1 mm 180kV/cm
		min. 3.5 mm
		120kV/cm min.
Volume Resistivity	IEC 60093	1 x 1012Ω cm min.
Dielectric Constant	IEC 60250	5 max.
Water Absorption	14 days at 23℃±2℃ ISO 62 Method	0.5% max.
Resistance to Liquids	7 days in transformer oil
	at 23℃±2℃(VDE 0370) ISO 1817
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Resistance to Fungi	ASTM G21	Pass Rating 1

{/tabs}

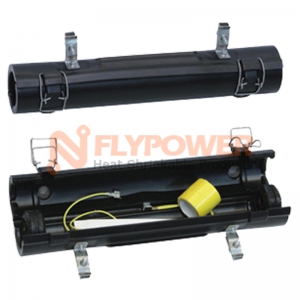

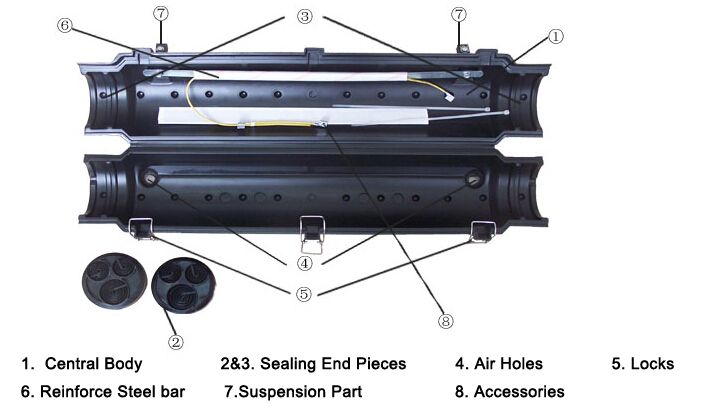

Self supporting aerial cable closure BH-SAC

info@flypower-heatshrink.com (Super User) — Mon, 03 Nov 2014 15:46:27 +0800

BH-SAC self supporting aerial cable closure or aerial free breathing mechanical joint closure. It is free breathing and suitable for?straight, butt, and branch splices of non-pressurized communication cables. aerial closure is a single piece aerial closure easily used in installation and maintenance of aerial telecom cables. The one piece construction permits complete splice access, without removal of the closure or bonding of the cables.

{tab=Specification}

Model	Closure Outer Dia. (mm)	Closure Overall Length (mm)	Max. Opening Length (mm)	Max. Splice Dia.(mm)	Cable Dia.		Applicable Cable Pairs(wire gauge 0.4mm)	Notes
Model	Closure Outer Dia. (mm)	Closure Overall Length (mm)	Max. Opening Length (mm)	Max. Splice Dia.(mm)	?Main Cable	Branch Cable(up to two branches)	Applicable Cable Pairs(wire gauge 0.4mm)	Notes
BH-SAC-50/20-200???	77	305	200	50	5-25	-	10-50	Straight Type
BH-SAC-56/25-350	82	480	350	56	5-25	-	50-100
BH-SAC-56/25-500	82	690	500	56	5-25	-	100-200
BH-SAC-92/45-500	115	690	500	92	5-45	-	200-400
BH-SAC-50/25-200???	77	305	200	50	5-25	5—15	10-50	Branch Type
BH-SAC-56/25-350	82	480	350	56	5-25	5—15	50-100
BH-SAC-56/25-500	82	690	500	56	5-25	5—15	100-200
BH-SAC-92/45-500	115	690	500	92	5-45	5—15	200-400

Accessories: Closure Body, End seals(2 pieces) ,Ruler (1 piece, to measure the circumferential length of cables),

Nylon cable ties(4 pieces), Shield continuity wire and connector (1 kit), Knife , PVC tape (1 roll).{/tabs}

Round heat shrinkable joint tube for unpressurized telecommunication cable BH-RSY

info@flypower-heatshrink.com (Super User) — Wed, 02 Jul 2014 09:31:11 +0800

BH-RSY round heat shrinkable joint tube for unpressurized telecommunication cable?which is designed to provide tightness and environmental and mechanical protection?for splices on telecommunication cables in networks.

{tab=Specification}?

Model	Splice?bundle Dia.?Max.(mm)	Single?cable Dia.?Max.(mm)	Cable Cut-length (mm)	Tube length(mm)	Applicable?cable?pairs
Model	Splice?bundle Dia.?Max.(mm)	Single?cable Dia.?Max.(mm)	Cable Cut-length (mm)	Tube length(mm)	Wire?Dia. (0.4mm)	Wire?Dia. (0.5mm)
RSY(F) 18/8-170	18	8	170	450	≤10	5～10
RSY(F) 23/12-210	23	12	210	500	≤25	10～25
RSY(F) 30/15-350	30	15	350	600	≤50	30～50
RSY(F) 40/18-300	40	18	300	700	≤100	100
RSY(F) 50/22-400	50	22	400	800	≤150	100～150
RSY(F) 62/25-500	62	25	500	900	≤200	150～200
RSY(F) 75/27-500	75	27	500	1000	300-500	200-400
RSY(F) 85/30-500	85	30	500	1000	500-600	400-500
RSY(F) 10/35-500	100	35	500	1000	500-600	500-600
RSY(F) 122/45-500	122	45	500	1000	800-1400	600-1200
RSY(F) 140/50-500	140	50	500	1000	1200-1600	1000-1400
RSY(F) 175/55-500	175	55	500	1000	2400-3000	1400-1800

Remarks:

1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, metal canister, stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit(RSY-F), PVC adhesive tape, aluminum foil, Installation procedure;
3. RSY is the in line type which with L type shielding wire, RSY-F is the branching type which with Y type shielding wire and a branch-off kit.
?

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile Strength?	ISO 37?	17 MPa min.?
Ultimate Elongation?	ISO 37?	350% min.?
Density?	ISO 1183 Method A?	1.0 – 1.2 g/cm3?
Hardness?	ISO 868?	50 – 70 D?
Accelerated Aging?	7 days at 150℃±2℃ ISO 188?
	Tensile Strength ISO 37??	14 MPa min.?
	Ultimate Elongation?ISO 37?	300% min.?
Thermal Endurance?	IEC 60216?	120℃?
Low Temperature Flexibility?	4 hours at –40℃±3℃	No cracking?
Low Temperature Flexibility?	ASTM D2671 Procedure C?	No cracking?
Dielectric Strength	IEC 60243?	1 mm 180kV/cm
		min. 3.5 mm
		120kV/cm min.
Volume Resistivity?	IEC 60093?	1 x 1012Ω cm min.?
Dielectric Constant?	IEC 60250?	5 max.?
Water Absorption?	?14 days at 23℃±2℃ ISO 62 Method?	0.5% max.?
Resistance to Liquids?	7 days in transformer oil
	at 23℃±2℃(VDE 0370) ISO 1817?
	Tensile Strength?ISO 37?	14 MPa min.?
	Ultimate Elongation ISO 37?	300% min.?
Resistance to Fungi?	ASTM G21?	Pass Rating 1?

{/tabs}

General heat shrinkable joint closure for unpressurized telecommunication cable BH-RSB

info@flypower-heatshrink.com (Super User) — Mon, 30 Jun 2014 16:35:39 +0800

BH-RSB general heat shrinkable joint closure for unpressurized telecommunication cable which is designed to provide tightness and environmental and mechanical protection for splices on telecommunication cables in networks.

{tab=Specification}

Model	Splice bundle Dia. Max.(mm)	Single cable Dia. Max.(mm)	Cable cut length(mm)	Applicable cable pairs
Model	Splice bundle Dia. Max.(mm)	Single cable Dia. Max.(mm)	Cable cut length(mm)	Wire Dia.(0.4mm)	Wire Dia.(0.5mm)
RSB(F) 23/12-210	23	12	210	5-10	5-10
RSB(F) 32/11-200	32	11	200	5-10	5-10
RSB(F) 32/11-300	32	11	300	10-20	10-20
RSB(F) 32/11-500	32	11	500	10-30	10-30
RSB(F) 42/15-200	42	15	200	10-20	10-20
RSB(F) 42/15-300	42	15	300	20-30	20-30
RSB(F) 42/15-500	42	15	500	50	50
RSB(F) 50/18-400	50	18	400	50-100	50-100
RSB(F) 50/18-500	50	18	500	100-150	100-150
RSB(F) 62/22-350	62	22	350	100-150	100-150
RSB(F) 62/22-500	62	22	500	200	200
RSB(F) 62/22-650	62	22	650	250	250
RSB(F) 75/25-500	75	25	500	200-300	200-300
RSB(F) 92/30-350	92	30	350	300	300
RSB(F) 92/30-500	92	30	500	400-500	400-500
RSB(F) 122/38-500	122	38	500	600-1200	600-1200
RSB(F) 122/38-650	122	38	650	1000-1200	1000-1200
RSB(F) 150/55-500	150	55	500	1400-1800	1400-1800
RSB(F) 160/55-500	160	55	500	1200	1200
RSB(F) 160/55-650	160	55	650	1400-1800	1400-1800
RSB(F) 160/55-720	160	55	720	2100-2400	2100-2400
RSB(F) 175/60-500	175	60	500	2100-2400	2100-2400
RSB(F) 200/65-500	200	65	500	2400	2400
RSB(F) 200/65-650	200	65	650	2700-3200	2700-3200
RSB(F) 200/65-720	200	65	720	3600	3600

Remarks:

1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, metal canister, stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit(RSB-F), PVC adhesive tape, aluminum foil, Installation procedure;
3. RSB is the in line type which with L type shielding wire, RSB-F is the branching type which with Y type shielding wire and a branch-off kit.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile Strength	ISO 37	17 MPa min.
Ultimate Elongation	ISO 37	350% min.
Density	ISO 1183 Method A	1.0 – 1.2 g/cm3
Hardness	ISO 868	50 – 70 D
Accelerated Aging	7 days at 150℃±2℃ ISO 188
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Thermal Endurance	IEC 60216	120℃
Low Temperature Flexibility	4 hours at –40℃±3℃	No cracking
Low Temperature Flexibility	ASTM D2671 Procedure C	No cracking
Dielectric Strength	IEC 60243	1 mm 180kV/cm
		min. 3.5 mm
		120kV/cm min.
Volume Resistivity	IEC 60093	1 x 1012Ω cm min.
Dielectric Constant	IEC 60250	5 max.
Water Absorption	14 days at 23℃±2℃ ISO 62 Method	0.5% max.
Resistance to Liquids	7 days in transformer oil
	at 23℃±2℃(VDE 0370) ISO 1817
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Resistance to Fungi	ASTM G21	Pass Rating 1

{/tabs}

Reinforced heat shrinkable joint closure for unpressurized telecommunication cable BH-RSBJ

info@flypower-heatshrink.com (Super User) — Tue, 17 Jun 2014 15:28:58 +0800

BH-RSBJ reinforced heat shrinkable joint closure for unpressurized telecommunication cable which is designed to provide tightness and environmental and mechanical protection for splices on telecommunication cables in networks.

{tab=Specification}

Model	Splice bundle Dia. Max.(mm)	Single cable Dia. Max.(mm)	Cable cut length(mm)	Applicable cable pairs
Model	Splice bundle Dia. Max.(mm)	Single cable Dia. Max.(mm)	Cable cut length(mm)	Wire Dia.(0.4mm)	Wire Dia.(0.5mm)
RSBJ(F) 23/12-210	23	12	210	5-10	5-10
RSBJ(F) 32/11-200	32	11	200	5-10	5-10
RSBJ(F) 32/11-300	32	11	300	10-20	10-20
RSBJ(F) 32/11-500	32	11	500	10-30	10-30
RSBJ(F) 42/15-200	42	15	200	10-20	10-20
RSBJ(F) 42/15-300	42	15	300	20-30	20-30
RSBJ(F) 42/15-500	42	15	500	50	50
RSBJ(F) 50/18-400	50	18	400	50-100	50-100
RSBJ(F) 50/18-500	50	18	500	100-150	100-150
RSBJ(F) 62/22-350	62	22	350	100-150	100-150
RSBJ(F) 62/22-500	62	22	500	200	200
RSBJ(F) 62/22-650	62	22	650	250	250
RSBJ(F) 75/25-500	75	25	500	200-300	200-300
RSBJ(F) 92/30-350	92	30	350	300	300
RSBJ(F) 92/30-500	92	30	500	400-500	400-500
RSBJ(F) 122/38-500	122	38	500	600-1200	600-1200
RSBJ(F) 122/38-650	122	38	650	1000-1200	1000-1200
RSBJ(F) 150/55-500	150	55	500	1400-1800	1400-1800
RSBJ(F) 160/55-500	160	55	500	1200	1200
RSBJ(F) 160/55-650	160	55	650	1400-1800	1400-1800
RSBJ(F) 160/55-720	160	55	720	2100-2400	2100-2400
RSBJ(F) 175/60-500	175	60	500	2100-2400	2100-2400
RSBJ(F) 200/65-500	200	65	500	2400	2400
RSBJ(F) 200/65-650	200	65	650	2700-3200	2700-3200
RSBJ(F) 200/65-720	200	65	720	3600	3600

Remarks:

1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, metal canister, stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit(RSBJ-F), PVC adhesive tape, aluminum foil, Installation procedure;
3. RSBJ is the in line type which with L type shielding wire, RSBJ-F is the branching type which with Y type shielding wire and a branch-off kit;
4. FLYPOWER model RSBJ is equated with Raychem XAGA 500/530/550.

{tab=Technical Data}

Property	Test Method	Typical Data
Tensile Strength	ISO 37	17 MPa min.
Ultimate Elongation	ISO 37	350% min.
Density	ISO 1183 Method A	1.0 – 1.2 g/cm3
Hardness	ISO 868	50 – 70 D
Accelerated Aging	7 days at 150℃±2℃ ISO 188
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Thermal Endurance	IEC 60216	120℃
Low Temperature Flexibility	4 hours at –40℃±3℃	No cracking
Low Temperature Flexibility	ASTM D2671 Procedure C	No cracking
Dielectric Strength	IEC 60243	1 mm 180kV/cm
		min. 3.5 mm
		120kV/cm min.
Volume Resistivity	IEC 60093	1 x 1012Ω cm min.
Dielectric Constant	IEC 60250	5 max.
Water Absorption	14 days at 23℃±2℃ ISO 62 Method	0.5% max.
Resistance to Liquids	7 days in transformer oil
	at 23℃±2℃(VDE 0370) ISO 1817
	Tensile Strength ISO 37	14 MPa min.
	Ultimate Elongation ISO 37	300% min.
Resistance to Fungi	ASTM G21	Pass Rating 1

{/tabs}
