Round heat shrinkable joint tube for unpressurized telecommunication cable BH-RSY
- Applications: BH-RSY round heat shrinkable joint tube for unpressurized telecommunication cable which is designed to provide tightness and environmental and mechanical protection for splices on telecommunication cables in networks.
-
Characteristics: Of super composite fibre structure and secondary sealing, with excellent
mechanical strength, tear-resistant, shrinkage and resistance to weathering;
The sealing employs high-quality imported Germany Henkel gel;
Offers quick and easy application using an innovative closure mechanism;
The white line on the inner side of the rail bar and heat sensitive paint on the exterior of the product may guide the proper operation. - Operating temperature range: Minimum fully recovery temperature: 120oC
- Approvals / Specifications: RoHS
- Colors: Black
?
|
Model |
Splice?bundle Dia.?Max.(mm) |
Single?cable |
Cable Cut-length (mm) |
Tube length(mm) |
Applicable?cable?pairs |
|
|
Wire?Dia. (0.4mm) |
Wire?Dia. (0.5mm) |
|||||
|
RSY(F) 18/8-170 |
18 |
8 |
170 |
450 |
≤10 |
5～10 |
|
RSY(F) 23/12-210 |
23 |
12 |
210 |
500 |
≤25 |
10～25 |
|
RSY(F) 30/15-350 |
30 |
15 |
350 |
600 |
≤50 |
30～50 |
|
RSY(F) 40/18-300 |
40 |
18 |
300 |
700 |
≤100 |
100 |
|
RSY(F) 50/22-400 |
50 |
22 |
400 |
800 |
≤150 |
100～150 |
|
RSY(F) 62/25-500 |
62 |
25 |
500 |
900 |
≤200 |
150～200 |
|
RSY(F) 75/27-500 |
75 |
27 |
500 |
1000 |
300-500 |
200-400 |
|
RSY(F) 85/30-500 |
85 |
30 |
500 |
1000 |
500-600 |
400-500 |
|
RSY(F) 10/35-500 |
100 |
35 |
500 |
1000 |
500-600 |
500-600 |
|
RSY(F) 122/45-500 |
122 |
45 |
500 |
1000 |
800-1400 |
600-1200 |
|
RSY(F) 140/50-500 |
140 |
50 |
500 |
1000 |
1200-1600 |
1000-1400 |
|
RSY(F) 175/55-500 |
175 |
55 |
500 |
1000 |
2400-3000 |
1400-1800 |
1. Special size, cut pieces are available on request;

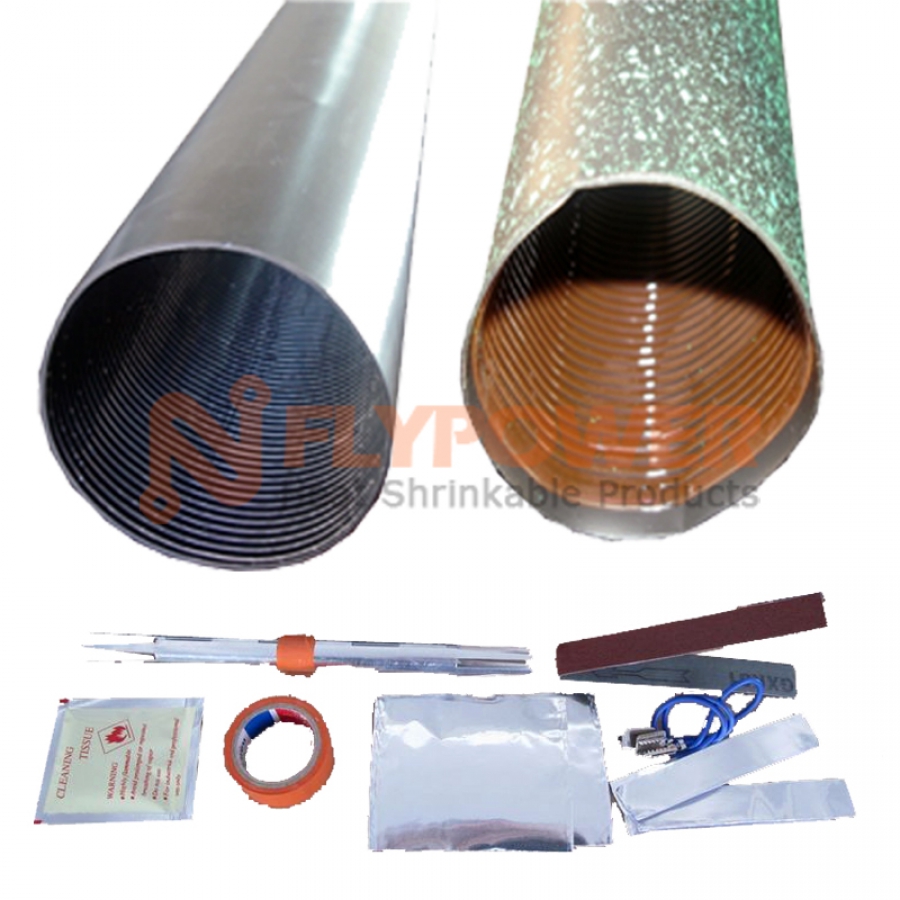

2. Accessories: Heat shrinkable sleeve, metal canister, stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit(RSY-F), PVC adhesive tape, aluminum foil, Installation procedure;
3. RSY is the in line type which with L type shielding wire, RSY-F is the branching type which with Y type shielding wire and a branch-off kit.
?
|
Property |
Test Method |
Typical Data |
|
Tensile Strength? |
ISO 37? |
17 MPa min.? |
|
Ultimate Elongation? |
ISO 37? |
350% min.? |
|
Density? |
ISO 1183 Method A? |
1.0 – 1.2 g/cm3? |
|
Hardness? |
ISO 868? |
50 – 70 D? |
|
Accelerated Aging? |
7 days at 150℃±2℃ ISO 188? |
|
|
Tensile Strength ISO 37?? |
14 MPa min.? |
|
|
Ultimate Elongation?ISO 37? |
300% min.? |
|
|
Thermal Endurance? |
IEC 60216? |
120℃? |
|
Low Temperature Flexibility? |
4 hours at –40℃±3℃ |
No cracking? |
|
ASTM D2671 Procedure C? |
||
|
Dielectric Strength |
IEC 60243? |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity? |
IEC 60093? |
1 x 1012Ω cm min.? |
|
Dielectric Constant? |
IEC 60250? |
5 max.? |
|
Water Absorption? |
?14 days at 23℃±2℃ ISO 62 Method? |
0.5% max.? |
|
Resistance to Liquids? |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817? |
||
|
Tensile Strength?ISO 37? |
14 MPa min.? |
|
|
Ultimate Elongation ISO 37? |
300% min.? |
|
|
Resistance to Fungi? |
ASTM G21? |
Pass Rating 1? |
