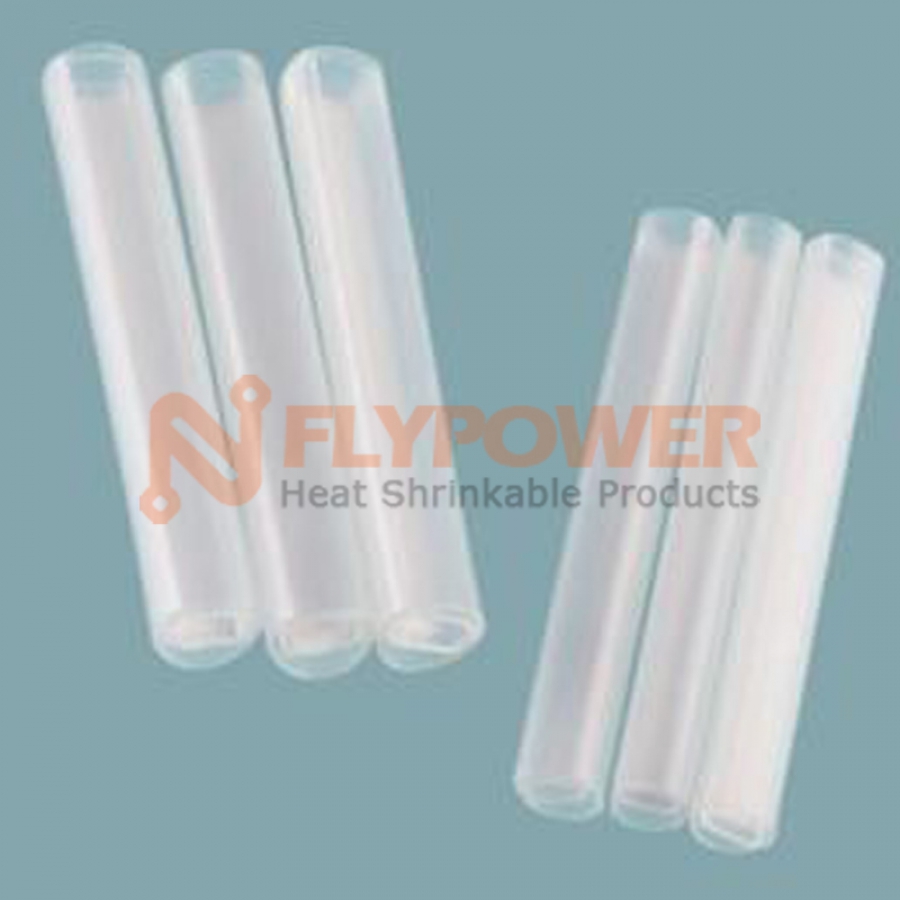

Ribbon heat shrinkable multiple fiber optic splice protector BH-FSP-R
- Applications: BH-FSP-R ribbon heat shrinkable fiber optic splice protector is consist of cross linked polyolefin, hot fusion tubing and ceramic or quartz rod, keep optic transmission properties of optical fiber, provide strength and protection to multiple optical fiber splices.
-
Characteristics: Easily use and avoid any damaged to the optical fiber during installation;
Clear sleeve make it easy to detect splice before shrinkage;
Sealing structure make the splice free from effect of temperature and humidity from environment. -
Operating temperature range: Operating temperature: -45℃ to +100℃
Minimum fully recovery temperature: 120℃ - Approvals / Specifications: RoHS
- Colors: Transparent, Other colors available on request
Model No.
Splice Protection Sleeve
(After Shrinking)
Fusion tube
Rod
Packing
(pcs/bag)
O.D
(±0.2mm)
Length
(±1mm)
Width (±0.1mm)
Height (±1mm)
Width (±0.1mm)
Height (±1mm)
BH-FSP-R-C-4 core
3.4
42
1.3
2.2
3
1.5
100
BH-FSP-R-2C-4 core
4
42
1.3
2.2
3
1.5
100
BH-FSP-R-C-6 core
3.8
42
1.8
2.8
3
1.5
100
BH-FSP-R-2C-6 core
4.5
42
1.8
2.8
3
1.5
100
BH-FSP-R-C-8 core
4.8
42
2.4
3.4
4
2
100
BH-FSP-R-2C-8 core
5.5
42
2.4
3.4
4
2
100
BH-FSP-R-C-12 core
4.9
42
2.4
3.5
4
2
100
BH-FSP-R-2C-12 core
5.8
42
2.4
3.5
4
2
100
BH-FSP-R-Q-4 core
3.8
42
1.3
2.2
3
1.5
100
BH-FSP-R-2Q-4 core
4.6
42
1.3
2.2
3
1.5
100
BH-FSP-R-Q-6 core
3.8
42
1.8
2.8
3
1.5
100
BH-FSP-R-2Q-6 core
4.5
42
1.8
2.8
3
1.5
100
BH-FSP-R-Q-8 core
4.8
42
2.4
3.4
4
2
100
BH-FSP-R-2Q-8 core
5.5
42
2.4
3.4
4
2
100
BH-FSP-R-Q-12 core
4.9
42
2.4
3.5
4
2
100
BH-FSP-R-2Q-12 core
5.8
42
2.4
3.5
4
2
100
Remarks:
1. Other lengths and sizes are available on request;
2. BH-FSP-R-C: with Ceramic rod; BH-FSP-R-2C: with 2pcs Ceramic rod; BH-FSP-R-Q: with quartz rod; BH-FSP-R-2Q: with 2pcs quartz rod.
Property
Test Method
Typical Data
Tensile strength
ASTM D 2671
≥18 MP
Ultimate elongation
ASTM D 2671
700%
Density
ISO R 1183 D
0.94g/cm2
Dielectric strength
IEC 243
20KV/mm
Dielectric constant
IEC 243
2.5 max.
Longitudinal change
ASTM D2671
±5%.
