Pre-moulded cable accessories

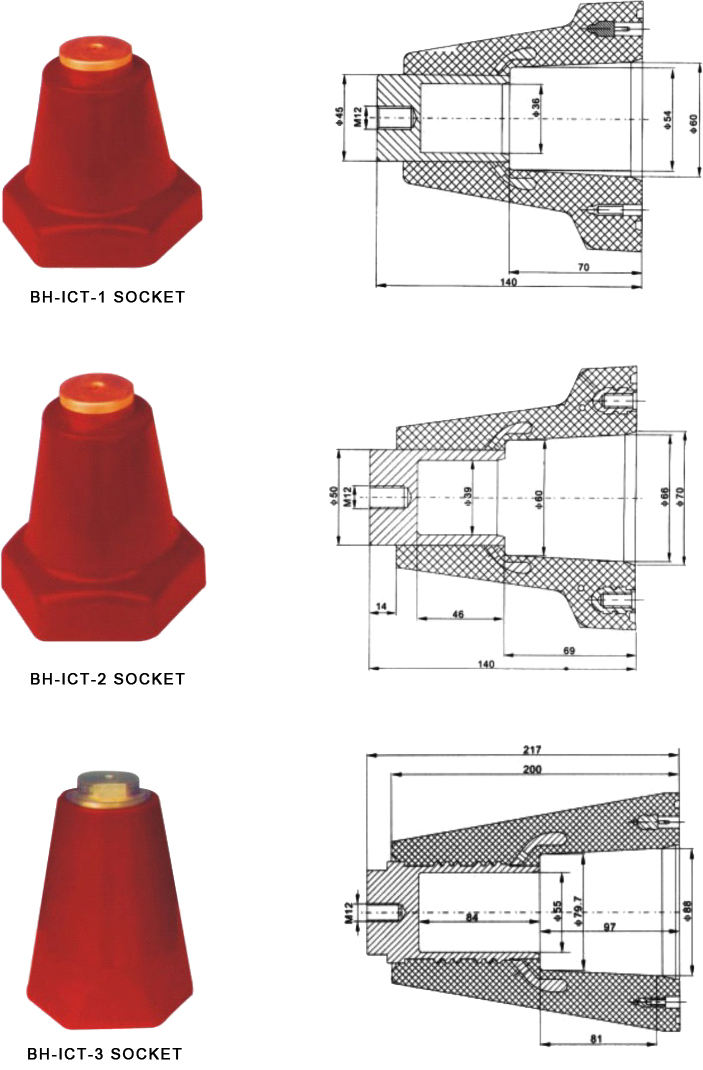

35KV Plug-in type termination BH-ICT

info@flypower-heatshrink.com (Super User) — Thu, 29 May 2014 22:25:55 +0800

BH-ICT 35kV plug-in type termination is applied for the connection to the transformer, switchgear, switch unit etc. 35kV inner corn plug socket is suitable for the connection to GIS and effective sealing for the SF6. it can be used in door and out door applications without any maintenance. It is mainly composed of inner corn type epoxy insulating bushing and termination which is made of EPDM elastomer to guarantee the reliability for the long term working condition.

{tab=Design and structure}

{tab=Technical Data}

Performance	BH-ICT-1	BH-ICT-2	BH-ICT-3
Voted voltage	26/35kV	26/35kV	26/35kV
Max. system voltage	36kV	42 KV	42 KV
continuous current	630A	800A	1250A
Impulse	170kV	200kV	200kV
A.C withstand voltage	39kV/5min	54kV/5min	54kV/5min

{/tabs}

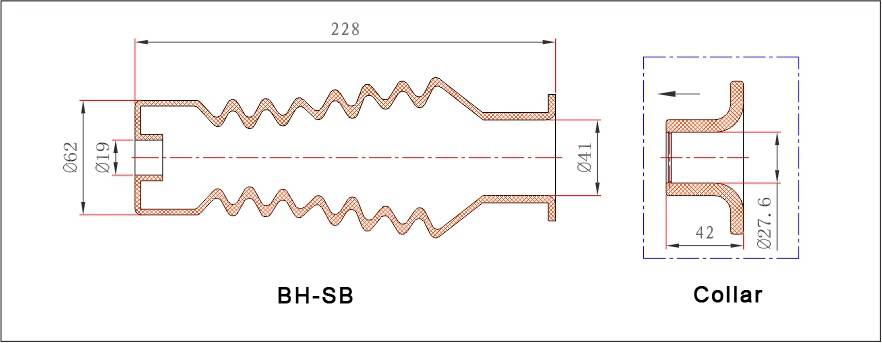

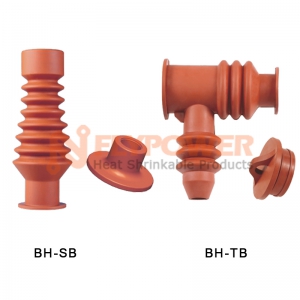

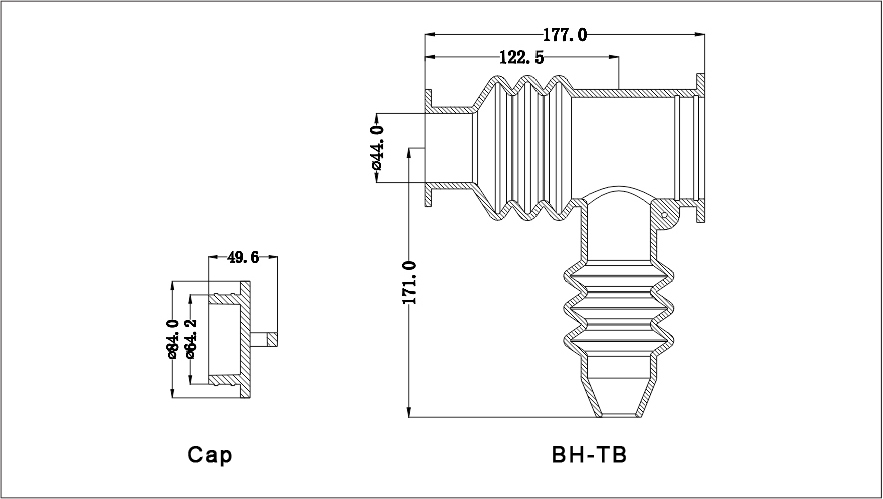

Medium voltage cold applied bushing protection boots(straight type/T type) BH-SB/BH-TB

info@flypower-heatshrink.com (Super User) — Thu, 29 May 2014 22:46:30 +0800

BH-SB/BH-TB is premolded bellows boots applied for transformer and switchgear?connections with the function of protection, insulating and sealing, it can also reduce?the clearance between phase to phase, phase and ground as well. Such boots own?outstanding behaviors for the weathering resistance and electrical property esp. in?the wet conditions. Configuration 35-400mm2 at 7.2V/17.5kV for straight type?insulating boots and 46-70mm2 up to 15kV for T type insulating boots.

?{tab=Design and structure}?

{tab=Technical Data}?

Performance	BH-SB-01/02	BH-TB-01
Max. system voltage	17.5kV	15KV
continuous current	250A/630A	630A
Impulse withstand	95kV	95kV
Adaptor	YES/NONE	N/A
Bushing diameter	31-45mm	46-70mm
Bushing type	250A	400A/630A
Cable cross section	35-400mm2	35-400mm2

{/tabs}

250A S type screened connector BH-CS

info@flypower-heatshrink.com (Super User) — Thu, 29 May 2014 22:11:18 +0800

BH-CS 250A S type screened connector, made of EPDM elastomer, is used for indoor application, the main body is composed of inner conductive layer,insulating layer and outer conductive layer, suitable for the connection of XLPE cables 8.7/15kV, 12/20kV to transformers, switchgears and other equipment with premolded separable connector.

{tab=Specification and structure}

Size(mm)	Main insulation diameter (mm)	Cable cross-section
Size(mm)	Main insulation diameter (mm)	8.7/15 kV(mm2)	12/20kV(mm2)
Φ 15	18-20	35-50	35
Φ 18	21-23	70-95	50-70
Φ21	24-26	120-150	95-120

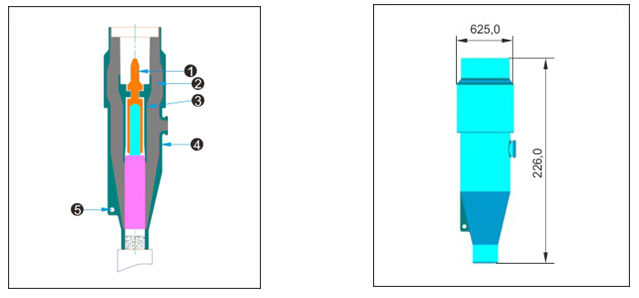

1. Compression lugs 2. Main insulating layer 3. Inner screen 4. Outer screen 5. Earthing eye

Main compounds:

1. Main body 2.Compression lugs 3. Supporting metal pad 4. Treaded pin

{tab=Technical Data}

Performance	BH-CS-101	BH-CS-203
Rated voltage	8.7/15（17.5）kV	12/20（24）kV
Max. system voltage	17.5kV	24kV
Continuous current	250A	250A
Partial discharge	15kV/≤10pC	20kV/≤10pC
A.C withstand voltage	39kV/5min	54kV/5min

{/tabs}

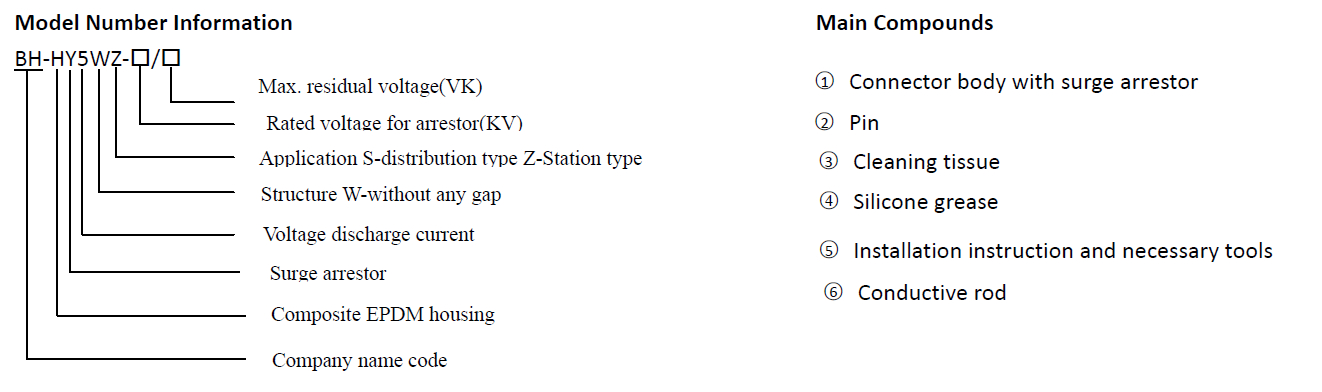

T type connector (rear) with surge arrestor BH-YH5WZ

info@flypower-heatshrink.com (Super User) — Wed, 21 May 2014 16:59:20 +0800

BH-YH5WZ T type connector (rear) with surge arrestor is used for the protection?of electric appliance against lighting and overvoltage.

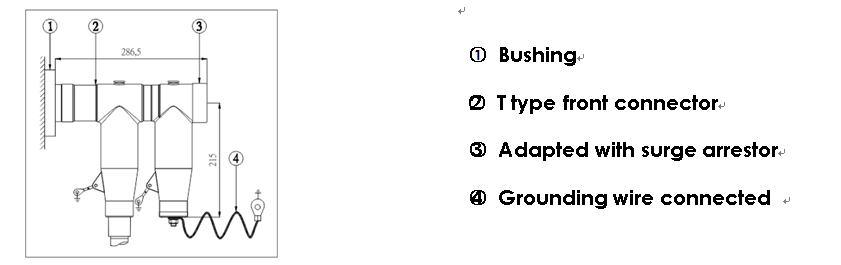

{tab=Design and structure}

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

{tab=Technical Data}

Performance	YH5WZ-17/45（50）	YH5WZ-26/66
Voted system voltage	10kV（r.m.s)	20kV（r.m.s)
Voted voltage	17kV	26kV
Continuous operating voltage	13.6kV	20.8kV
Residual voltage at 5kA lighting impulse	45kV	66kV
Voltage at 1mA	≥25kV	≥37kV
Leakage current at D.C 0.75U1mA	≤50μA	≤50μA
2ms rectangular current withstand	150A	150A
A.C withstand voltage test for EPDM housing（5min)	630A	630A

{/tabs}

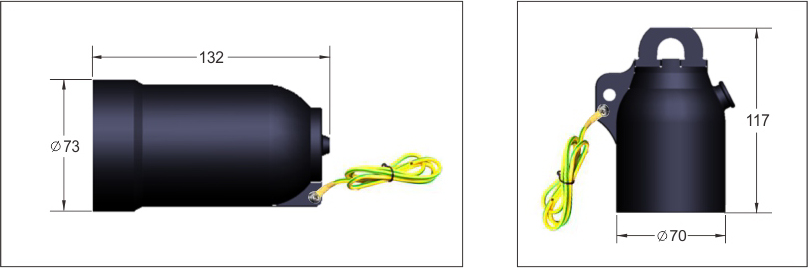

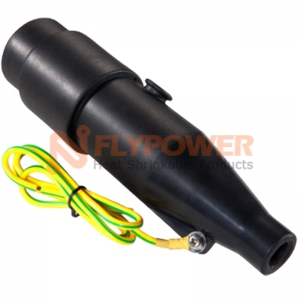

250A/630A Insulating cap BH-IC

info@flypower-heatshrink.com (Super User) — Fri, 23 May 2014 13:43:55 +0800

BH-IC 250A/630A Insulating cap is applied for the insulation protection for the bushings.Suite for 8.7V/15KV,12/20KV.

{tab=Design and structure}

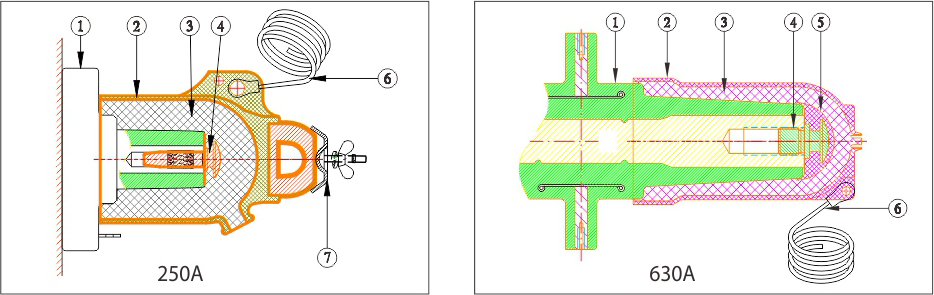

1. Bushing: fixed on cabinet ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2. Outer screen: Simi-conductive ? ?

3. Main insulation: EPDM elastomer insulating layer ? ? ? ? ? ? ? ? ?4. Pin: fix the position ? ? ? ? ?

5. Inner screen: semi-conductive layer ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 6. Earthing wire: grounding with outer screen ? ? ?

7. Fix device: fix the cap on the bushing ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

630A Main Compounds? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?250A Main Compounds

?1.Insulation cap ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 1.??Insulation cap

?2.Cleaning tissue ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??2.?Cleaning tissue

?3.Silicon grease ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?3.Silicon grease

?4.Sand paper ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??4.?Sand paper

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 5.Fixing device

{tab=Technical Data}

Performance	BH-IC
Voted voltage	8.7/15（17.5）kV	12/20（24）kV
Max. system voltage	17.5kV	24 KV
continuous current	250A/630A	250A/630A
Partial discharge	15kV/≤10pC	21kV/≤10pC
A.C withstand voltage	39kV/5min	54kV/5min

{/tabs}

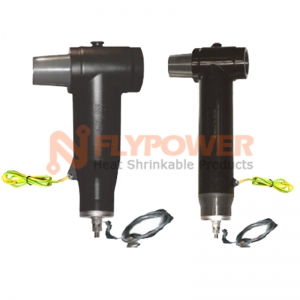

250A screened elbow connector BH-EC

info@flypower-heatshrink.com (Super User) — Thu, 22 May 2014 11:56:46 +0800

250A screened elbow connector BH-EC,suitable for the connection of XLPE cables?up to 12/20kV to transformers, switchgear, motors and other equipment witha separable connector.

{tab=Specification and structure}

Size(mm)	Main insulation diameter (mm)	Cable cross-seciton
Size(mm)	Main insulation diameter (mm)	8.7/15 kV(mm2)	12/20kV(mm2)
Φ 15	18-20	35-50	35
Φ 18	20-23	70-95	50-70
Φ 21	23-26	120-150	95-120

Main Compounds

?1.?Elbow Connector body???????????????2.?Pin ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??3.?Compression lug

4.?Mechanical metal pad ? ? ? ? ? ? ? ? ?5.?Special pin ? ? ? ? ? ? ? ? ? ?6.?Spanner

{tab=Technical Data}

Performance	BH-EC-102	BH-EC-202
Rated voltage	8.7/15（17.5）kV	12/20（24）kV
Max. system voltage	17.5kV	24kV
Continuous current	250A	250A
Partial discharge	15kV/≤10pC	20kV/≤10pC
A.C withstand voltage	39kV/5min	54kV/5min
Thermal short circuit	22.8kA/2s	24kA/2s
Dynamic short circuit	80.8kA/10ms	84.8kA/10ms

{/tabs}

15KV 200A screened elbow connector BH-ECA

info@flypower-heatshrink.com (Super User) — Thu, 22 May 2014 21:11:33 +0800

BH-ECA 15kV 200A Elbow type connector is applied for the connection to the?transformer, RMU, cable branch system with the function of complete insulation,sealing and screened, the suitable range of cable is 35~120mm2.

?{tab=Specification and structure}

Size(mm)	Main insulation diameter (mm)	Cable cross-section
Size(mm)	Main insulation diameter (mm)	8.7/15 kV(mm2)
Φ 16	17-19	35-50
Φ 19	20-22	70-95
Φ 21	23-24	120

Main Compounds

?1.?Main body? ??? ? ?2.?Compression lugs?????? 3.?Testing point cap ?????4.?Conductive connection rod?

?5.?Earthing wire ? ??6.Sand paper ? ? ? ? ? ? ? ? ?7.?Cleaning tissue ? ? ? ??8.?Silicon grease

{tab=Technical Data}

Performance	BH-ECA-101
Rated voltage	8.7/15（17.5）kV
Rated continuous voltage	15kV
Max. operating voltage	17.5kV
Rated continuous current	200A
Partial discharge	15kV/≤10pC
A.C withstand voltage	39kV/5min

{/tabs}

15KV screened elbow PT connector BH-ECPT

info@flypower-heatshrink.com (Super User) — Fri, 23 May 2014 08:57:01 +0800

BH-ECPT 15kV Elbow type PT connector is applied for the supply of power/metering control for the electric operation system of transformer EHV tower. with the function of complete insulation, sealing and screened, the suitable range of cable is 35~120mm2.

{tab=Specification and structure}

Size(mm)	Main insulation diameter (mm)	Cable cross-section
Size(mm)	Main insulation diameter (mm)	8.7/15 kV(mm2)
Φ 16	17-19	35-50
Φ 19	20-22	70-95
Φ 21	23-24	120

Main Compounds

1.Main body 2.Compression lug 3.Testing point cap 4.Fixing device

5. Earthing wire 6. Sand paper 7. Cleaning tissue 8. Silicon grease

{tab=Technical Data}

Performance	BH-ECPT-101
Rated voltage	8.7/15（17.5）kV
Rated continuous voltage	15kV
Max. operating voltage	17.5kV
Rated continuous current	200A
Partial discharge	15kV/≤10pC
A.C withstand voltage	39kV/5min

{/tabs}

630A top bus bar hard metal connection system BH-HCS

info@flypower-heatshrink.com (Super User) — Fri, 23 May 2014 16:52:00 +0800

BH-HCS 630A top bus-bar hard metal connection system is made of EPDM rubber, mainly applied for the top connection of RMU and cable branch system to fit the loaded switch socket with sealing and insulation function

{tab=Design and structure}

{tab=Technical Data}

Performance	JCS(CCS)-101	JCS(CCS)-201
Rated voltage	8.7/15（17.5）kV	12/20（24）kV
Max. operating voltage	17.5kV	24 KV
Rated continuous current	630A	630A
Partial discharge	15kV/≤10pC	21kV/≤10pC
A.C withstand voltage	39kV/5min	54kV/5min

{/tabs}

630A top bus bar flexible connection system BH-FCS

info@flypower-heatshrink.com (Super User) — Sat, 24 May 2014 11:11:06 +0800

?BH-FCS 630A top bus bar flexible connection system, Europe style?cross connector and J type connector is made of EPDM rubber,mainly applied for the top connection of RMU and cable branch?system to fit the loaded switch socket with sealing and insulation?function.

{tab=Design and structure}

{tab=Technical Data}?

Performance	CC/JS/AC-101	CC/JS/AC-201
Rated voltage	8.7/15（17.5）kV	12/20（24）kV
Max. operating voltage	17.5kV	24 KV
Rated continuous current	630A	630A
Partial discharge	15kV/≤10pC	21kV/≤10pC
A.C withstand voltage	39kV/5min	54kV/5min

{/tabs}
