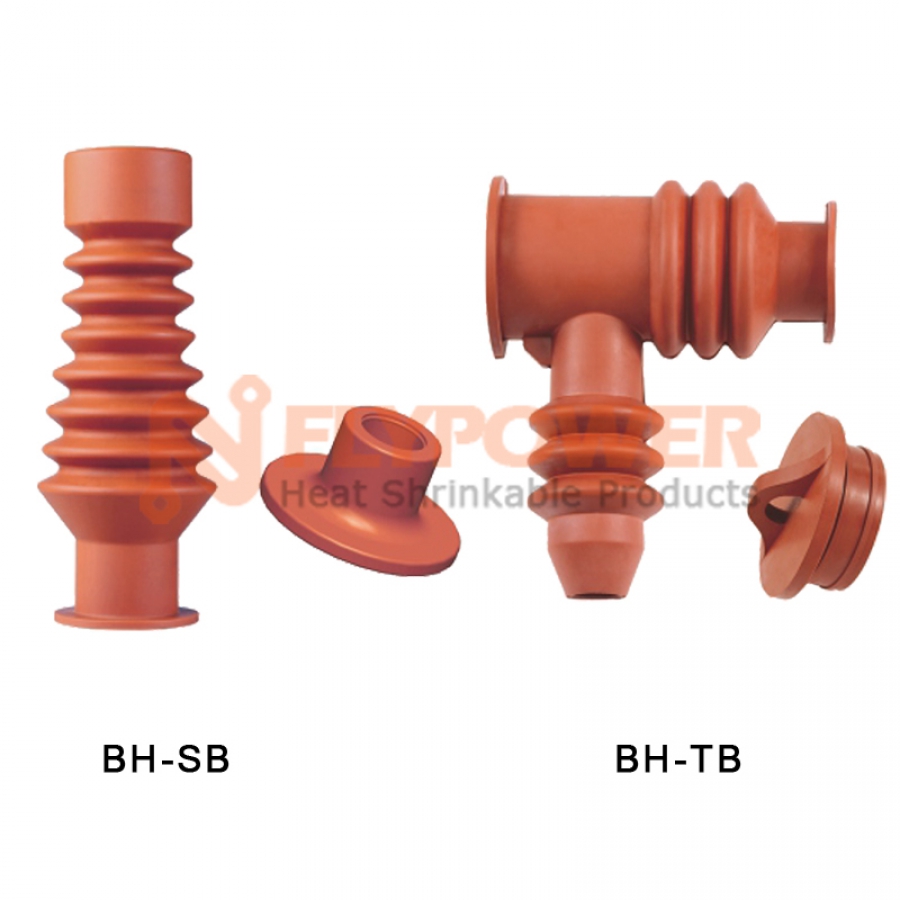

Medium voltage cold applied bushing protection boots(straight type/T type) BH-SB/BH-TB
- Applications: BH-SB/BH-TB is premolded bellows boots applied for transformer and switchgear connections with the function of protection, insulating and sealing, it can also reduce the clearance between phase to phase, phase and ground as well. Such boots own outstanding behaviors for the weathering resistance and electrical property esp. in the wet conditions. Configuration 35-400mm2 at 7.2V/17.5kV for straight type insulating boots and 46-70mm2 up to 15kV for T type insulating boots.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Simple and easy installation,longer shelf life;
Unique bushing adaptor provides superior moisture ingress protection. - Operating temperature range: N/A.
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Brown
? ? ? Performance BH-SB-01/02 BH-TB-01 Max. system voltage 17.5kV 15KV continuous current 250A/630A 630A Impulse withstand 95kV 95kV Adaptor YES/NONE N/A Bushing diameter 31-45mm 46-70mm Bushing type 250A 400A/630A Cable cross section 35-400mm2 35-400mm2
?
??
?
