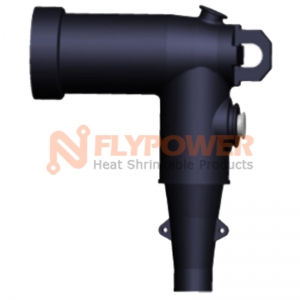

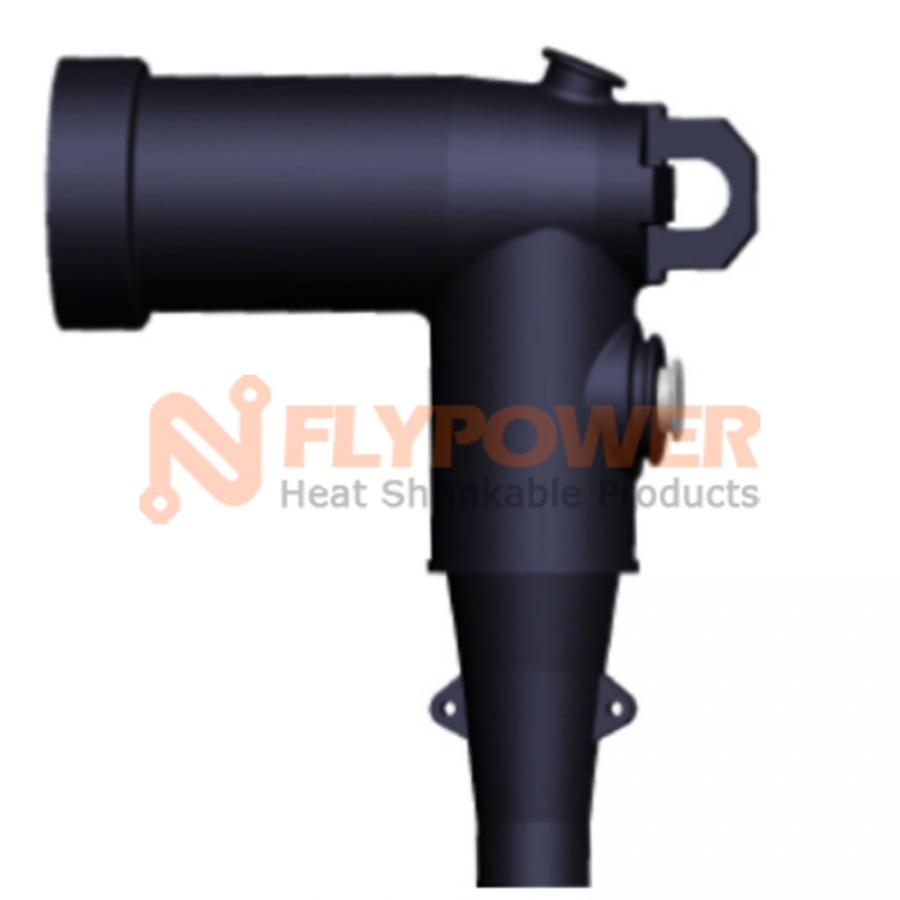

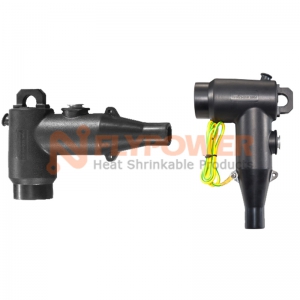

15KV 200A screened elbow connector BH-ECA
- Applications: BH-ECA 15kV 200A Elbow type connector is applied for the connection to the transformer, RMU, cable branch system with the function of complete insulation, sealing and screened, the suitable range of cable is 35~120mm2.with function of arc distinguishing the special designed conductive connecting rod can be applied as the load breaker operating current at 200A.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Reliable locking system with simple and quick installation;
Combined with insulation, sealing and touchable screened. - Operating temperature range: N/A
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Black

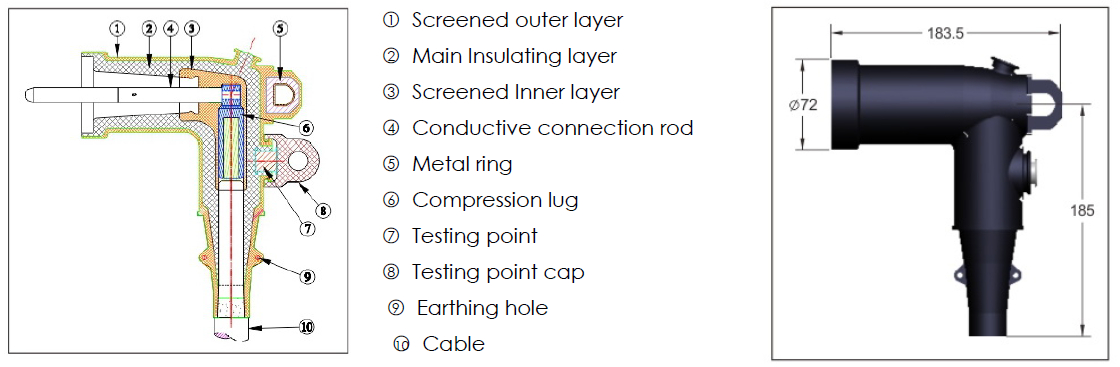

? Size(mm) Main insulation diameter (mm) Cable cross-section 8.7/15 kV(mm2) Φ 16 17-19 35-50 Φ 19 20-22 70-95 Φ 21 23-24 120 ? ? Main Compounds ?1.?Main body? ??? ? ?2.?Compression lugs?????? 3.?Testing point cap ?????4.?Conductive connection rod? ?5.?Earthing wire ? ??6.Sand paper ? ? ? ? ? ? ? ? ?7.?Cleaning tissue ? ? ? ??8.?Silicon grease Performance BH-ECA-101 Rated voltage 8.7/15（17.5）kV Rated continuous voltage 15kV Max. operating voltage 17.5kV Rated continuous current 200A Partial discharge 15kV/≤10pC A.C withstand voltage 39kV/5min ?
