Other Cable Accessories

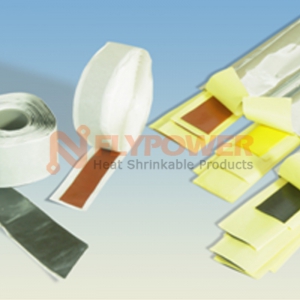

Mastic Tapes BH-T55, BH-T65 & BH-T75

info@flypower-heatshrink.com (Super User) — Mon, 18 Aug 2014 10:56:49 +0800

BH-T55 a pliable self amalgamating tape make it easy to apply for power cable accessory applications . the specially designed insulation give excellent compatibility with polymeric cables. screen in MV polymeric cable joints and terminations to ensure the safe operation of the power system and can also be used to fill voids and gaps during installation of cable joints and terminations. BH-T65 and BH-T75 The anti-tracking sealing mastic tap is made from a non-toxic, butyl composite. The self amalgamating and solvent free make the mastic effectively used in sealing cable joint and terminations to provide waterproof and void-filling.

{tab=Specification}

Part No.	Thickness(mm)	Width(mm)	Standard Package	Color
BH-T55	2.0	30	360mm or 50-200g/roll	Light Yellow
BH-T65	2.0	30	360mm or 50-200g/roll	Red
BH-T75	2.0	30	360 mmor 50-200g/roll	Black

*Other sizes and packing are available on requested.

{tab=Technical Data}

Property	Test Method	Typical Data
BH-T55 stress relief mastic
Density	ASTM D792	1.3g/m3
Tensile strength	ASTM D 638	0.1Mpa
Elongation at break	ASTM D 638	>1000%
Dielectric strength	IEC 250	≥3KV/mm
Dielectric constant	IEC 250	2-3
Volume resistance	ASTM D 527	109—1012Ω.cm
50Hz Loss factor(tge)		0.035
Service temperature (max)		-20℃to +90℃
Adhesive and self-amalgamation		Good
BH-T65 anti-tracking mastic
Density	ASTM D792	1.2 g/m3
Tensile strength	ASTM D 638	0.1Mpa
Elongation at break	ASTM D 638	>1000%
Dielectric strength	IEC 250	≥15KV/mm
Dielectric constant	IEC 250	2-3
Volume resistance	ASTM D 527	1014Ω.cm
50Hz Loss factor(tge)		0.035
Service temperature (max)		-20℃to +90℃
Adhesive and self-amalgamation		Good
BH-T75 black sealing mastic
Density	ASTM D792	1.2g/m3
Tensile strength	ASTM D 638	0.1Mpa
Elongation at break	ASTM D 638	>1000%
Dielectric strength	IEC 250	≥15KV/mm
Dielectric constant	IEC 250	2-3
Volume resistance	ASTM D 527	1014Ω.cm
50Hz Loss factor(tge)		0.035
Service temperature (max)		-20℃to +90℃
Adhesive and self-amalgamation		Good

{/tabs}

Organic fireproof plugging/sealing material BH-OFP

info@flypower-heatshrink.com (Super User) — Wed, 24 Sep 2014 14:55:11 +0800

BH-OFP organic fireproof plugging/sealing materialis a new type of flexible fire blocking material, widely used for power plants, substations, power of,power tunnel, metallurgy, chemicals, telecommunications, high-rise buildings and other projects in the vertical or horizontal the wire and cable through the holes of the sealing, the material can effectively inhibit channeling flame to the room adjoining holes penetrating the spread and reduce fire losses. The production of sealing a high oxygen index, smoke less combustion process,the cable after use does not affect the current-carrying capacity and long-term flexibility, and thus the construction is convenient, easy to change cables can be reused, in particular, used in bundles cable or cable-intensive regional cable and cable, the cable and plugging the gap between other objects.

{tab=Specification}

Item	Performance
Appearance	plastic solids, have a certain flexibility
Fire-resistant	≥3h
Fire-insolation	≥3h
Density	≤≤2.0 × 10 3 kg / m3
Corrosion resistance	≥7 days, not rust, corrosion phenomena appeared
Water resistance	≥ 3 days, no swelling, no crack
Oil resistance	≥ 3 days, no swelling, no crack
damp and hot resistance	≥120h, no powdering, no crack
Freeze thawing cycle resistance	≥15 cycles, no powdering, no crack
Expansion	190%
Smoke density	Max.: 37%,SDR Grade:12
Smoke toxicity	ZA1 grade
Halogen acid gas release	0mg/g(PH Value:≥4.3,electrical conductivity:≤10μs

Use:

The organic sealing rub evenly compacting after smoothing to the holes. Sealing large holes, it can be with the inorganic materials used in conjunction with fire blocking. The organic sealing will harden when the temperature is too low, this time blocking material can be placed in warm water about 40 °C heat until slightly soft out immediately after use.

Packaging and storage:

The product is packed in plastic bags, 2KG each bag and weight 20 ± 1kg each carton, products should be stored in a cool dry place, storage temperature should not exceed 40 °C suitable.{/tabs}

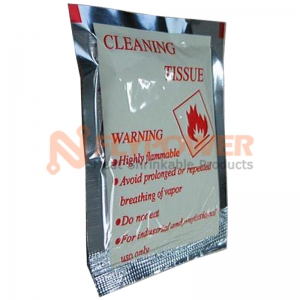

cable cleaning tissue BH-CCT

info@flypower-heatshrink.com (Super User) — Wed, 24 Sep 2014 14:22:14 +0800

BH-CCT cable cleaning tissue,apply standard cleaning liquid special alcohol liquid. and special bag to avoid liquid come out or voltilize.

{tab=Specification}

Tissue size: 19x20cm

Bag size:6x8cm

Packing: 500bags put in one polythin bag .5000bags in one master carton.

{/tabs}
