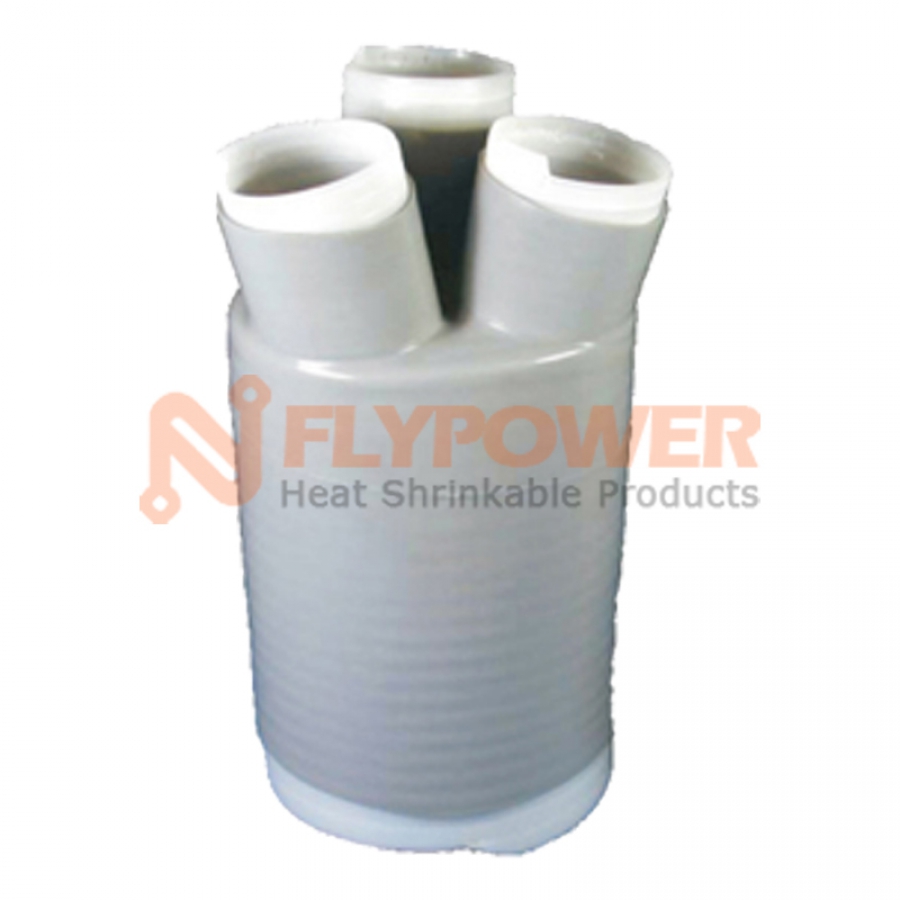

cold shrink breakout BH-CSB
- Applications: BH-CSB cold shrink breakout which Made of liquid silicone rubber.Simple and fast installation meeting a variety of configuration requirements, Providing sealing protection over multi-core cable crutch, including 3-, 4-, 5-, 6-core breakouts.
-
Characteristics: Simple and fast installation, no tools required.
Sealing tight, high rebound even after prolonged years of aging and exposure.
No mastic or tape required. No torches or heat required.
Resists fungus, water, acids, alkalis and ozone.
Easily removed, no training required for installation. - Operating temperature range: N/A.
- Approvals / Specifications: RoHS
- Colors: Gray
|
Model No. |
Cores |
?C (As Supplied/ |
Application |
?F (As Supplied/ |
Application |
LF/mm |
Lc/mm |
|
BH-CSB-3-1 |
3 |
80/ 36 |
?38-?67 |
32/ 14 |
?16- ?26 |
45 |
130 |
|
BH-CSB-3-2 |
88/ 43 |
?45-?78 |
35/ 16 |
?18- ?29 |
45 |
135 |
|
|
BH-CSB-3-3 |
104/ 50 |
?52-?94 |
40/ 20 |
?22- ?34 |
45 |
150 |
|
|
BH-CSB-3-4 |
120/ 59 |
?61-?110 |
47/ 23 |
?25- ?41 |
45 |
165 |
|
|
BH-CSB-3-5 |
140/ 72 |
?74-?130 |
60/ 28 |
?30- ?54 |
55 |
180 |
|
|
BH-CSB-3-5A1 |
150/ 72 |
?74-?140 |
65/ 28 |
?30- ?59 |
55 |
180 |
|
|
BH-CSB- 3-5A2 |
165/ 72 |
?74-?155 |
70/ 28 |
?30- ?64 |
55 |
180 |
|
|
BH-CSB-4-1 |
4 |
65/20 |
?22-?55 |
20/6 |
?8-?14 |
35 |
126 |
|
BH-CSB-4-2 |
80/28 |
?30-?70 |
25/8 |
?10-?19 |
40 |
137 |
|
|
BH-CSB-4-3 |
88/40 |
?42-?78 |
32/10 |
?12-?26 |
40 |
145 |
|
|
BH-CSB-4-4 |
120/45 |
?47-?110 |
47/15 |
?17-?41 |
40 |
145 |
|
|
BH-CSB-5-1 |
5 |
80/26 |
?28-?70 |
20/6 |
?8-?14 |
40 |
123 |
|
BH-CSB-5-2 |
88/36 |
?38-?78 |
25/8 |
?10-?19 |
40 |
134 |
|
|
BH-CSB-5-3 |
110/47 |
?49-?100 |
35/11 |
?13-?29 |
45 |
138 |
|
|
BH-CSB-5-3A |
120/47 |
?49-?110 |
40/11 |
?13-?36 |
45 |
138 |
|
|
BH-CSB-6-1 |
6 |
104/35 |
?37-?94 |
32/10 |
?12- ?26 |
60 |
135 |
