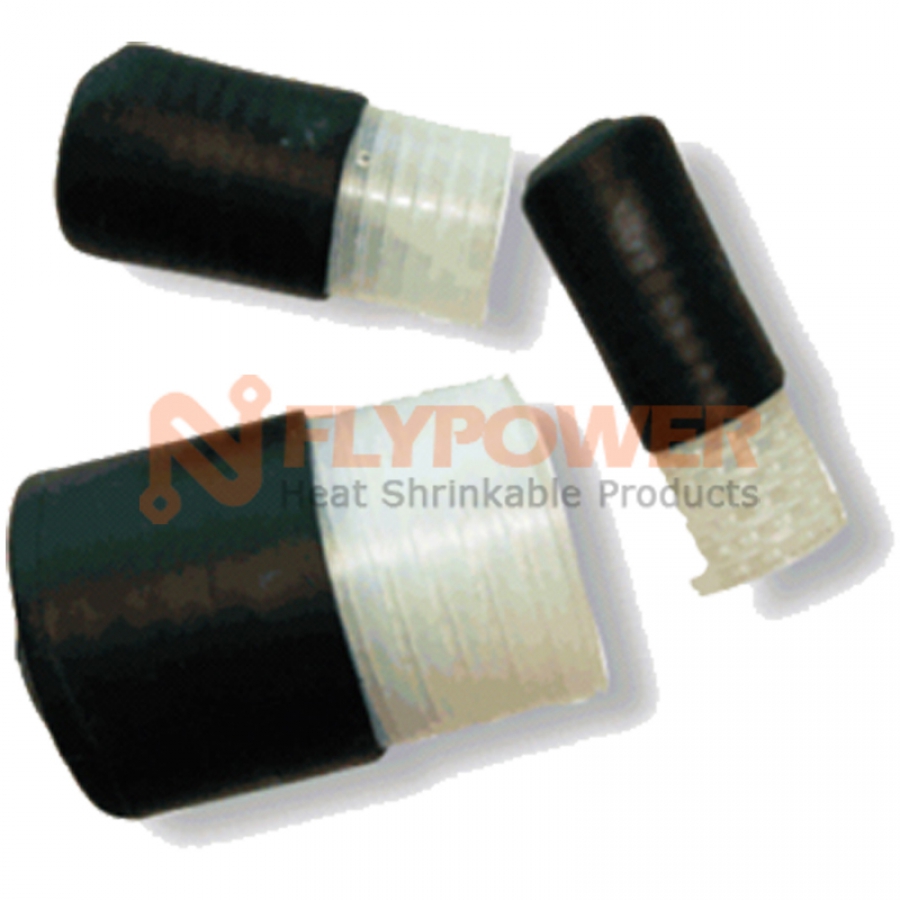

Cold shrink end cap BH-CSEC
- Applications: BH-CSEC cold shrink end cap which made of EPDM rubber Simple and fast installation meeting a variety of configuration requirements. Providing sealing protection over multi-core cable ends Used to seal cable ends during installation or storage, protecting cable ends against moisture, contamination and corrosion.
-
Characteristics: Simple and fast installation, no tools required.
Accommodating size ranges from 13mm – 70mm.
Sealing tight, high rebound even after prolonged years of aging and exposure.
No mastic or tape required. No torches or heat required.
Resists fungus, water, acids, alkalis and ozone.
Easily removed, no training required for installation. - Operating temperature range: N/A.
- Approvals / Specifications: RoHS
- Colors: Black
|
Modle No. |
ID As Supplied |
ID after Recovered |
Wall Thickness |
Application Range |
Length/mm |
|
BH-CSEC 70-20/12 |
?20 |
?12 |
2.5 |
?13- ?16 |
70 |
|
BH-CSEC 70-28/16 |
?28 |
?16 |
2.5 |
?18- ?24 |
70 |
|
BH-CSEC 70-47/23 |
?47 |
?23 |
2.6 |
?25- ?38 |
70 |
|
BH-CSEC 70-80/46 |
?80 |
?46 |
2.6 |
?48- ?70 |
70 |
|
Property |
Test Method |
Standard Value |
|
300% Modulus |
ASTM D-412-75 |
4.2MPa |
|
Ultimate Tensile |
ASTM D-412-75 |
10.05MPa |
|
Ultimate Elongation |
ASTM D-412-75 |
600% |
|
Tear strength |
ASTM D-624C-73 |
28.3KN/m |
|
Fungus Resistance |
ASTM G-21 |
28 days exposure No Growth |
|
Moisture Absorption 7 days@ 90℃in H2O |
|
3.0% wt. Gain |
