BH-MT-PET-CB medical grade ultra thin wall PET (Polyester) heat shrink tubes-round type is made of medical grade Polyethylene terephthalate. Suitable for insulation of medical devices, variable-stiffness catheters, protective covering/coating and bundling, reinforcement, tip forming, tube making and printing, and electrical insulation. Its tough material hardness and ultra-thin wall thickness can fully protect extremely fine products without being affected by thickness.

KEY FEATURES

? Shrink Ratio: 1.3:1 and 1.6:1

? Thin wall, high tensile strength, high Dielectric strength

? Low shrinkage temperature

? Resistant to most chemicals and oils

? Can be printed using conventional techniques

?  Inner diameter before heat shrinking: 0.3-8mm

? Wall thickness before heat shrinking: 0.0064-0.05mm

APPLICATIONS

? Variable-stiffness catherters

? Protective covering/coating & bunding

? Reinforcement

? Tube marking & printing

? Electrical insulation

? Tube forming

Both of BH-2(PMT) and BH-2(PMT)-LS  are made by medical grade modified polyolefin, they are peelable heat shrink tubing and mainly application for aids prodcution for catheters,ballons and guide wires, they need to remove after aids production process or before using. Here is peel off process videos for your kind reference.

The differences in the peel off process:
BH-2(PMT) peelable heat shrink tubing needs heat up (Approx. 85oC) to soften tubing firstly before peel off process.
BH-2(PMT)-LS could be peeled off directly without additional heat and easily after heat shrink process.



peelable heat shrink tubing

Both of BH-2(PMT) and BH-2(PMT)-LS  are made by medical grade modified polyolefin, they are peelable heat shrink tubing and mainly application for aids prodcution for catheters,ballons and guide wires, they need to remove after aids production process or before using. Here is peel off process videos for your kind reference.

The differences in the peel off process:
BH-2(PMT) peelable heat shrink tubing needs heat up (Approx. 85oC) to soften tubing firstly before peel off process.
BH-2(PMT)-LS could be peeled off directly without additional heat and easily after heat shrink process.



peelable heat shrink tubing

Both of BH-2(PMT) and BH-2(PMT)-LS  are made by medical grade modified polyolefin, they have the same performances and applications in the Laser-Welding Application Process Aid for the catheters,ballons and guide wires. Their main applications are as below:
? Processing aid for laser welding of stents andballoons
? Process aid for holding dissimilar materials in hotjaw bonding operations
? Process aid for Reflow sleeve

The differences in the peel off process:
BH-2(PMT) peelable heat shrink tubing needs heat up (Approx. 85oC) to soften tubing firstly before peel off process.
BH-2(PMT)-LS could be peeled off directly without additional heat and easily after heat shrink process.

The diffenrences in the heat shrink temperature:
Both of them have the same fully recovery temperature: +130℃~ +200℃
BH-2(PMT) could withstand Max. shrink temperature 260℃ without bubbles.
BH-2(PMT)-LS could withstand Max. shrink temperature 250℃ without bubbles.



peelable heat shrink tubing

Since medical grade peelable heat shrink tubing BH-2(PMT)  was lanuched into the marketing in the beginning of 2021,our medical peelable heat shrink tubing got a very big  sucessful in the medical industry  and gained the full recognition by the mass customers around the world in past years. Today we proudly announce we  have been developed 2nd generation medical grade heat shrink tubing BH-2(PMT)-LS.

For the 1st generation BH-2(PMT) medical grade peelable heat shrink tubing, its performances are similar as TE-LWA and it needs heat up (Approx. 85oC) to soften tubing firstly before peel off process, the new developed BH-2(PMT)-LS could be peeled off directly and easily after heat shrink process.

In adition, BH-2(PMT) could withstand Max. shrink temperature 270℃ without bubbles and BH-2(PMT)-LS could withstand Max. shrink temperature 250℃ without bubbles.

KEY FEATURES

? Smooth catheter surface finish

? Visual inspection after reflow

? Removes easily after application, good axial tear propagation,Peelable

? Reduces downstream processing

? Promotes production safety

APPLICATIONS

? Catheter lamination

? Balloon tacking

? Tube bonding

? Tube forming



FLYPOWER has focused on issues in the manufacturing process of catheters and guide wires.As the pioneer of heat shrink technologies and products, we have developed peelable heat shrink tube BH-2(PMT). We are a first manufacturer to lanch the peelable heat shrink tubing in China.In the market of catheters and guide wires, we understand that simple and reliablemethod help extremely fine processes remain unproblematic.

KEY FEATURES

? Smooth catheter surface finish

? Visual inspection after reflow

? Removes easily after application, good axial tear propagation,Peelable

? Reduces downstream processing

? Promotes production safety

APPLICATIONS

? Catheter lamination

? Balloon tacking

? Tube bonding

? Tube forming



Medium/Heavy wall tubing with hot melting adhesive is mainly for city gas line pipe weld and steel pipe through the wall into the protective seal corrosion of household parts;Heat shrinkable sleeve is the overall structure, with a strong force of contraction,creep resistance,aging resistance,impact resistance,heat resistance and other excellent performance;The hot melt adhesive shear strength and peel strength, steel pipe, epoxy and PE coating adhesion and sealing;Chemical resistant, water immersion, resistance to water vapor permeability performance, service life and pipelines peers;Cable wall heat shrinkable tube:cable TV the transmit (CATV cable) with the inner wall of the heat shrinkable tube with hot melting adhesive for engagement with the connector of the cable transmission engineering protective outer thermal layer for mechanical protection within the hot melt adhesive layer used to sealed waterproof.

Black Adhesive semi-rigid wall tubing has excellent sealing,anti-corrosion, moisture,impact and abrasion resistance.Widely used in metal fittings, reinforced joints need mechanical protection,anti-corrosion,sealing the working environment. It can be used for a gas pipeline through walls, roads, railways, slope protection reinforced anti-corrosion treatment.
Performance characteristics:
Blackened plastic,semi-hard,excellent mechanical protection performance, sealing, anti-corrosion, moisture-proof,waterproof, anti-aging.

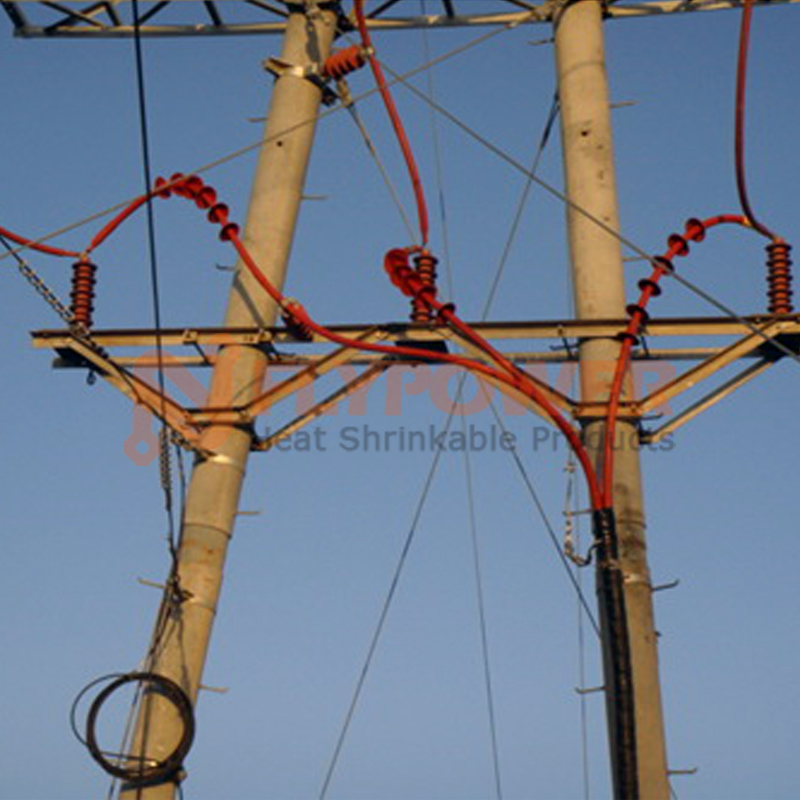

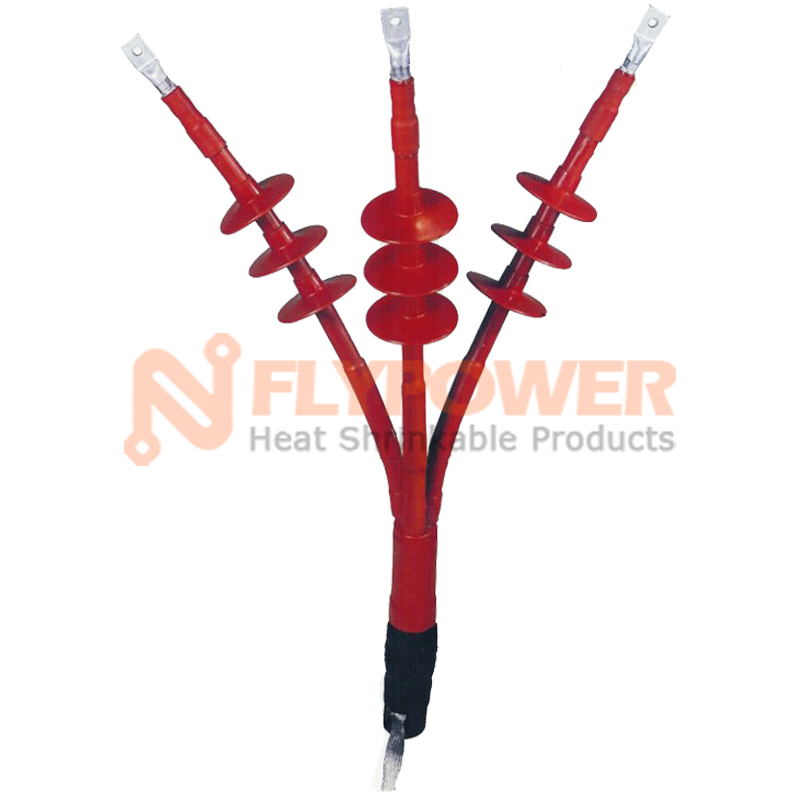

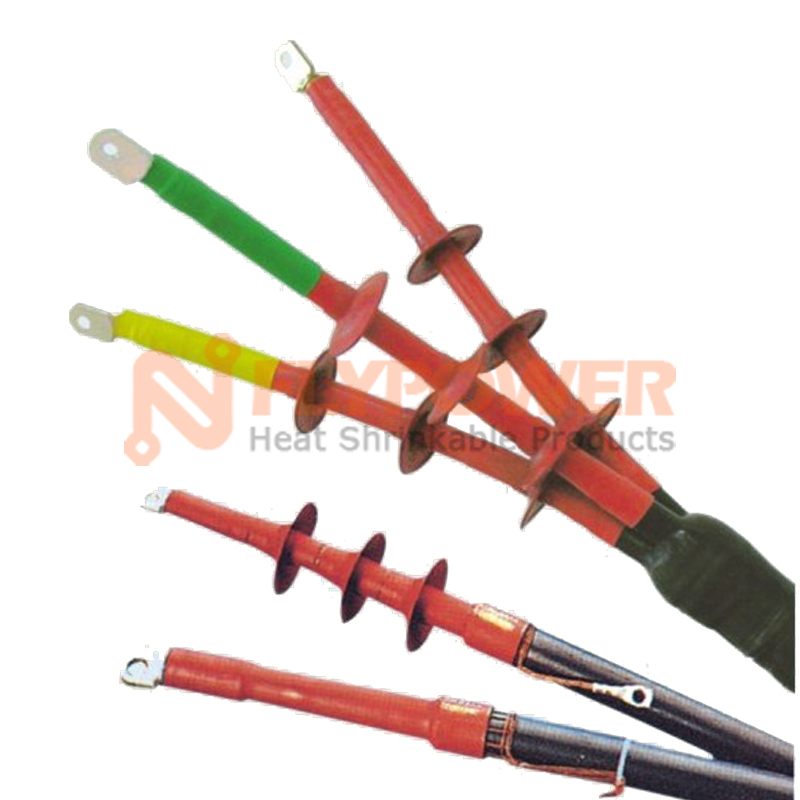

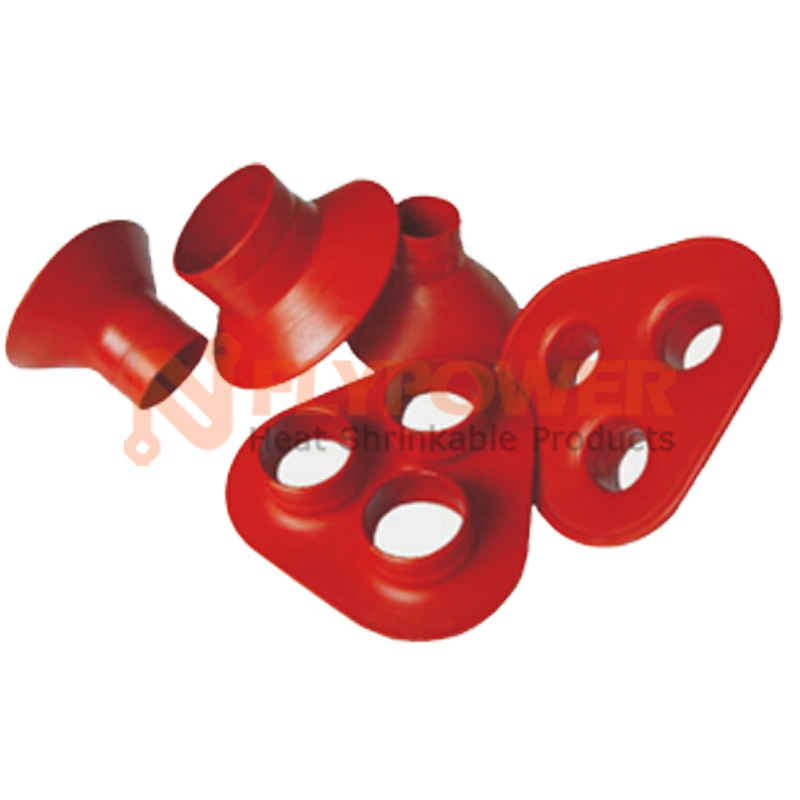

Heat shrinkable rain skirt is a fan-sheet structure of the cable terminal head product,also called shrink sheds, indoor play both increased creepage distance, but also played the role of rain pollution, general outdoor cable head before The cable head without creepage distance ( Generally matching with 35KV and above indoor cable head)

.
